Pro Comp 4 Inch Stage I Lift Kit with ES3000 Shocks – K4075B

Pro Comp Suspension

Shop Pro Comp Suspension Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch stage 1 coil spring lift with radius arm brackets for block and U-bolt rear lift
  • Pitman arm, bump stop extensions and extended length brake lines
  • ES3000 front and rear shocks
  • Confirm fit for your vehicle before ordering

Description

Overview

The Pro Comp K4075B is a 4-inch stage 1 coil spring lift with ES3000 front and rear shocks. The front uses coil springs with radius arm brackets, and the rear is lifted with a block and U-bolt kit. The lift height range is 3 to 4.99 inches.

A pitman arm handles the steering correction, and bump stop extensions and extended length brake lines are included. The shock boots are not included. No vehicle is named for this part number.

Key features

  • 4-inch stage 1 lift
  • Front coil springs with radius arm brackets
  • Rear block and U-bolt lift
  • Bump stop extensions
  • Pitman arm steering correction
  • Extended length brake lines

Confirming fit before ordering

Fit for a coil spring lift depends on the truck’s year, model and trim, along with the axle type and the way the springs are mounted. Before buying, match those details to the kit and compare the front spring seats and rear axle mounting to what the vehicle uses. A mismatch in spring rate or axle position can affect ride height and driveline angles.

Measure the current ride height at each corner and note any existing spacers, shackles or aftermarket shocks, since these influence how much lift the truck will gain. Keep the old parts until the new ones are confirmed to fit. If the vehicle has been modified, record those changes so they can be checked against the kit.

  • Vehicle year, model and trim
  • Axle and spring type
  • Current ride height at each corner

Specifications

Brand Pro Comp Suspension
Part number K4075B
UPC 614901125184
Lift 4 inches, stage 1
Lift height range 3 to 4.99 inches
Suspension type Radius arm
Front lift Coil springs with radius arm brackets
Rear lift Block and U-bolt kit
Steering correction Pitman arm
Front shocks ES3000
Rear shocks ES3000
Shock boots Not included

Vehicle fitment

Confirm fit for your vehicle’s year, model and trim before ordering. Check the spring and axle layout against your truck first.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A block and U-bolt rear lift changes the rear axle location, so check the driveline angles after installation. The pitman arm changes the steering linkage, so check the centering once the kit is in.

What’s included

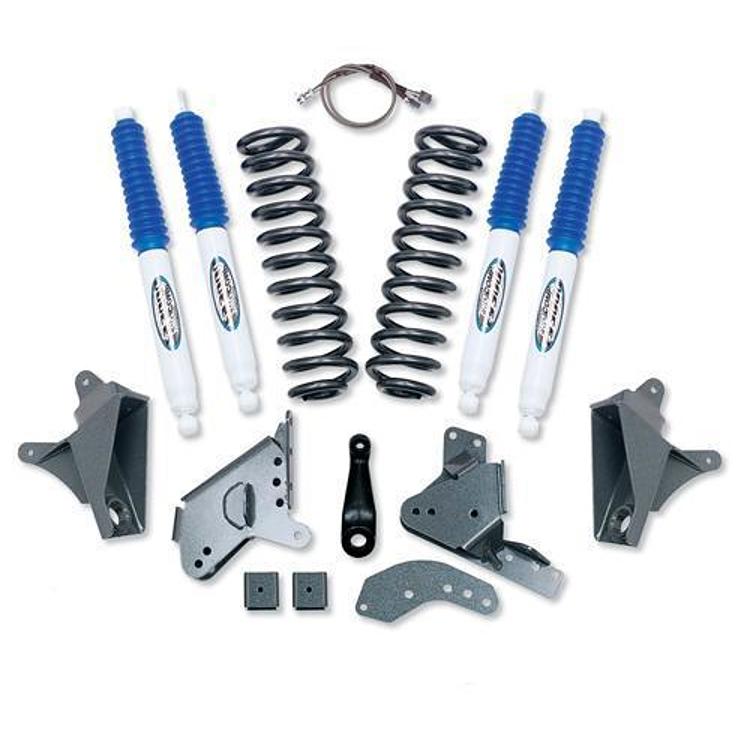

The kit includes front coil springs, radius arm brackets, bump stop extensions, a pitman arm, extended length brake lines, a rear block and U-bolt kit and ES3000 front and rear shocks. Shock boots are not included.

SKU: EXPK4075B Category:

Specification

Shipping weight 156.10 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Which vehicles does the K4075B fit?

Confirm fit for your vehicle's year, model and trim before ordering. Match the kit to your spring and axle layout, and check the layout on your truck before buying.

Does the K4075B include a pitman arm?

Yes. A pitman arm is included for steering correction, which should be checked for centering once the lift is installed.

Are shock boots included with the K4075B?

No. Shock boots are not supplied with this 4-inch kit, so any boots for the ES3000 shocks have to be bought separately.

What should be checked before installing a block and U-bolt rear lift?

Check the axle U-bolts, the driveline angle, shock length and the brake hose length. Confirm the wheels clear the body and fender at the new height before the truck is driven.
