Pro Comp 6″ Stage 1 Lift Kit with ES9000 Shocks – K2103B

Pro Comp Suspension

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch stage 1 suspension system with ES9000 front shocks for 2019–2021 Ram 1500 pickups
  • New Pro Comp knuckle with crossmembers, diff drops and sway bar drops
  • Rear geometry correction brackets and coil spacers; clearance up to a 37-inch tire
  • Lift height range 6–7 inches; no rear shocks listed

Description

Overview

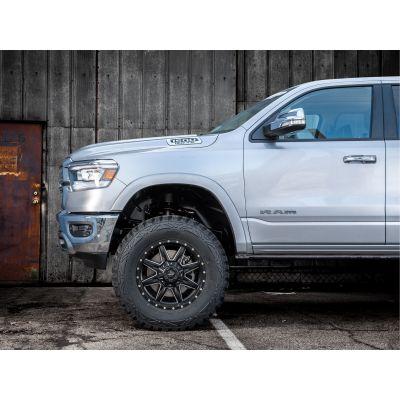

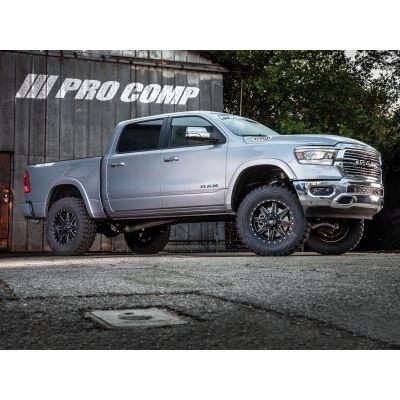

The K2103B is a 6-inch stage 1 suspension system with ES9000 front shocks for the 2019–2021 Ram 1500. The lift height range is 6 to 7 inches, and the front shocks are ES9000 units.

The kit uses a new knuckle engineered for the 2019 Ram 1500 platform, designed for better steering geometry, lower weight and a tighter turning radius than the earlier generation. Crossmembers, diff drops and sway bar drops are matched to it to keep critical components near factory operating angles.

Key features

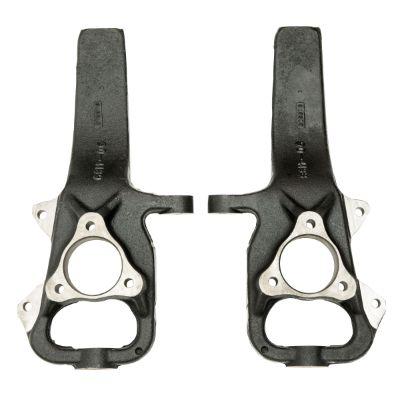

  • New Pro Comp-engineered knuckle for the 2019 Ram 1500 platform

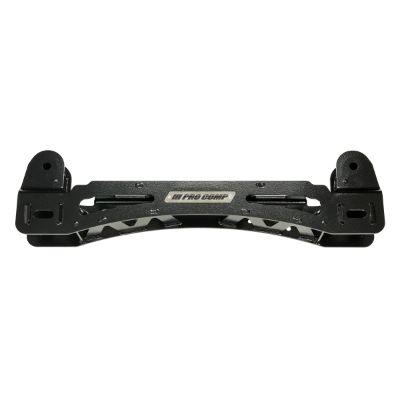

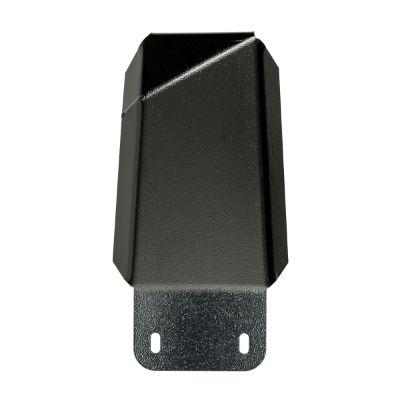

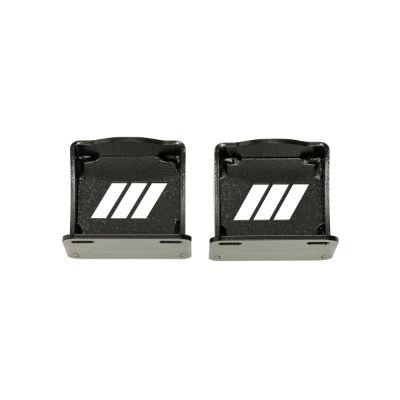

  • Robust crossmembers, diff drops and sway bar drops

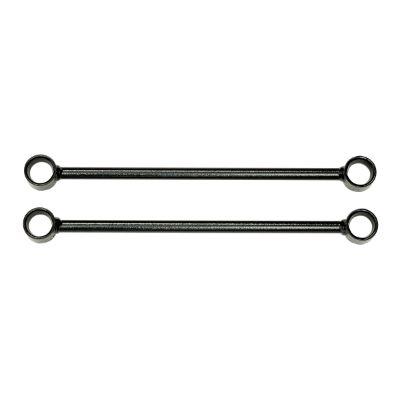

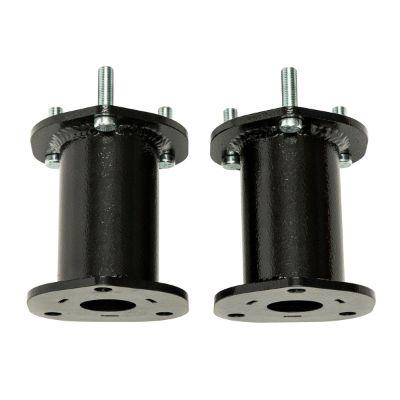

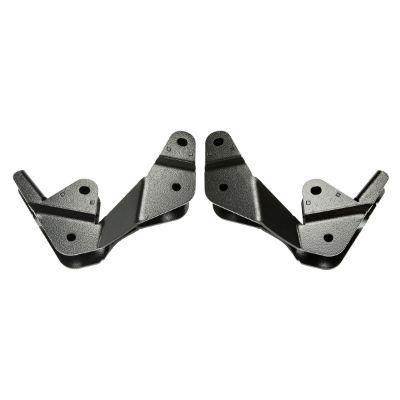

  • Rear geometry correction brackets and coil spacers
  • Compatible with factory stability control and adaptive cruise control.
  • Clearance of up to a 37-inch tire

Steering and tire fit

A new knuckle changes how the front wheels turn and how the tires sit at full lock, so steering feel and tire fit are linked. Take the truck for a short test drive in an empty lot at low speed and watch for rubbing at both extremes of steering. An alignment after installation should set caster and toe, since those settings control straight-line tracking.

Front shocks do much of the work for ride control, so keep an eye on their condition after the lift, especially if the rear feels different from the front. Wheel bearings can take extra load when tire size or ride height changes, so check for play and noise during tire rotations. Lug nuts and hub bolts should be rechecked after the first few trips to make sure they remain tight.

Specifications

Brand Pro Comp Suspension
Part number K2103B
Suspension type Lift kit, 6-inch stage 1
Lift height 6 inches, listed range 6–7 inches

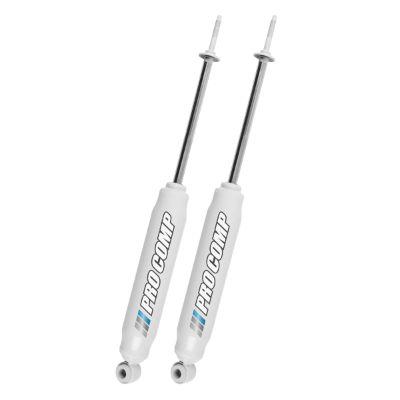

Front shocks ES9000
Rear shocks None listed
Rear components Rear geometry correction brackets and coil spacers
Tire clearance Up to 37-inch tires
Fitment Direct fit

Vehicle fitment

It fits the 2019–2021 Ram 1500 in the Big Horn, HFE, Laramie, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, Longhorn, Rebel, Special Service, TRX, TRX Launch Edition and Tradesman versions.

Coverage runs through the 2021 model year, so 2022 and newer Ram 1500 trucks are outside it, and the Ram 2500 and 3500 are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

The crossmembers and diff drops are designed to keep operating angles close to factory, but the lift still changes driveline and alignment settings. Check both after installation.

What’s included

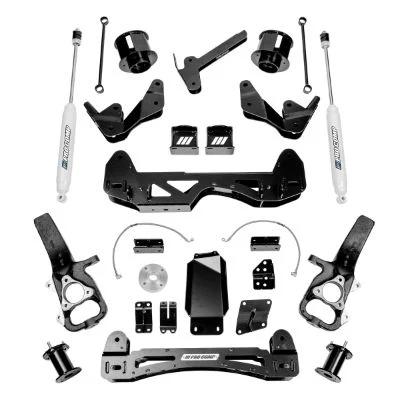

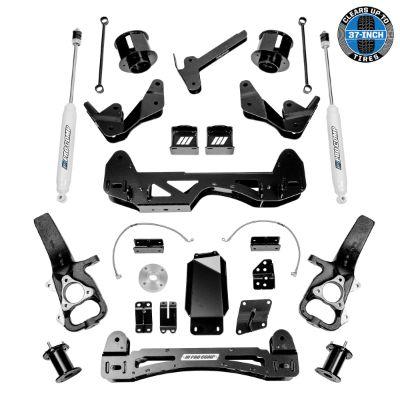

Pro Comp’s description names the knuckles, crossmembers, diff drops, sway bar drops, rear geometry correction brackets and coil spacers as parts of the system. The specifications list ES9000 front shocks and no rear shocks.

SKU: EXPK2103B Categories: ,

Fitment

VehicleYearsTrims
Ram 15002019–2021Big Horn, HFE, Laramie, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, Longhorn, Rebel, Special Service, TRX, TRX Launch Edition, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Pro Comp K2103B fit a 2021 Ram 1500 Rebel?

Yes. The 2019–2021 Ram 1500 is in the listed fitment, and the Rebel is one of the versions named. Confirm the year and version on your Ram before you buy.

Does the K2103B include rear shocks?

No. The kit comes with ES9000 front shocks, and the rear shock setup is not part of the kit. Plan the rear shock setup before ordering.

What tire size does the K2103B clear?

Up to a 37-inch tire. Check the tire diameter and clearance on your truck with the wheels you plan to run before buying.

How often should wheel bearings be checked after a lift?

Check them during each tire rotation and any time a new noise appears. Listen for a hum that changes with speed, and feel for play at the wheel with the vehicle safely raised.
