Pro Comp 6 Inch Lift Kit with ES9000 Shocks – K1085B

Pro Comp Suspension

Shop GMC Sierra 2500 HD Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch front lift and 3.5-inch rear lift with crossmembers and 4WD steering knuckles
  • Clears 35-inch tires with no trimming
  • Driveline spacers, bump stop extensions and skid plate included
  • Fits 2011-2018 Chevrolet and GMC 2500 HD and 2018 GMC Sierra 3500 HD trucks

Description

Overview

The Pro Comp 6 Inch Lift Kit with ES9000 Shocks, part number K1085B, is a crossmember and knuckle lift system for 2011-2018 Chevrolet Silverado 2500 HD and GMC Sierra 2500 HD trucks. It also fits the 2018 GMC Sierra 3500 HD. The front lifts 6 inches and the rear lifts 3.5 inches, with lift blocks and U-bolts at the rear.

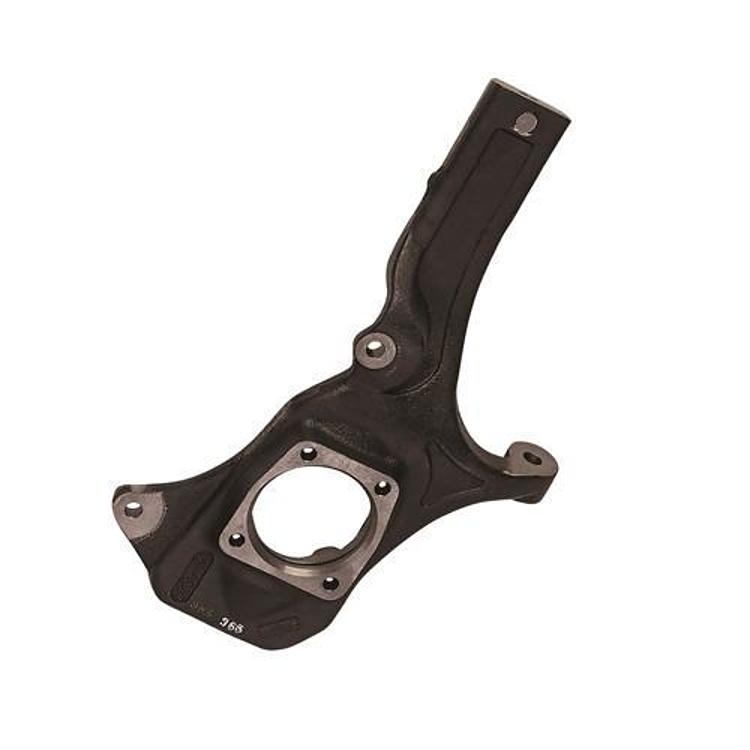

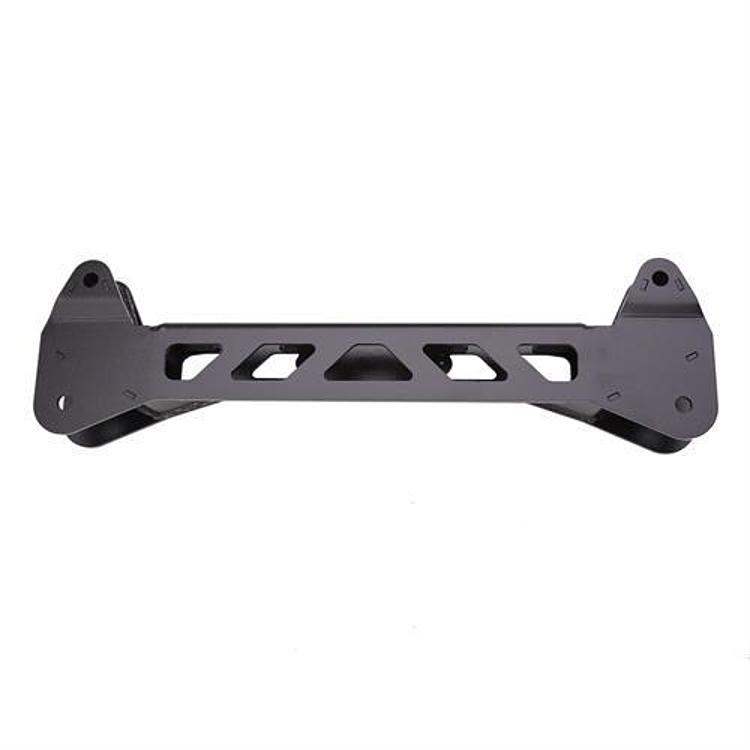

The front uses a heavy-duty crossmember and steering knuckles made from laser-cut, quarter-inch thick stock. The kit clears 35-inch tires with no trimming. The install is bolt-on and needs no welding, drilling or cutting of the differential.

Key features

  • 6-inch front lift with a crossmember and knuckle system
  • 3.5-inch rear lift with lift blocks and U-bolts
  • Clearance for 35-inch tires with no trimming
  • Heavy-duty, laser-cut crossmember and steering knuckles
  • Driveline spacers, bump stop extensions and skid plate included
  • No steering correction

Crossmember lifts and driveline

A crossmember and knuckle system sets the front geometry on heavy-duty trucks, so it works as a complete front end rather than a single part. Because the factory components are replaced, the new geometry depends on correct installation and a full alignment afterward. Heavy-duty trucks carry more load, so the front and rear geometry should be balanced.

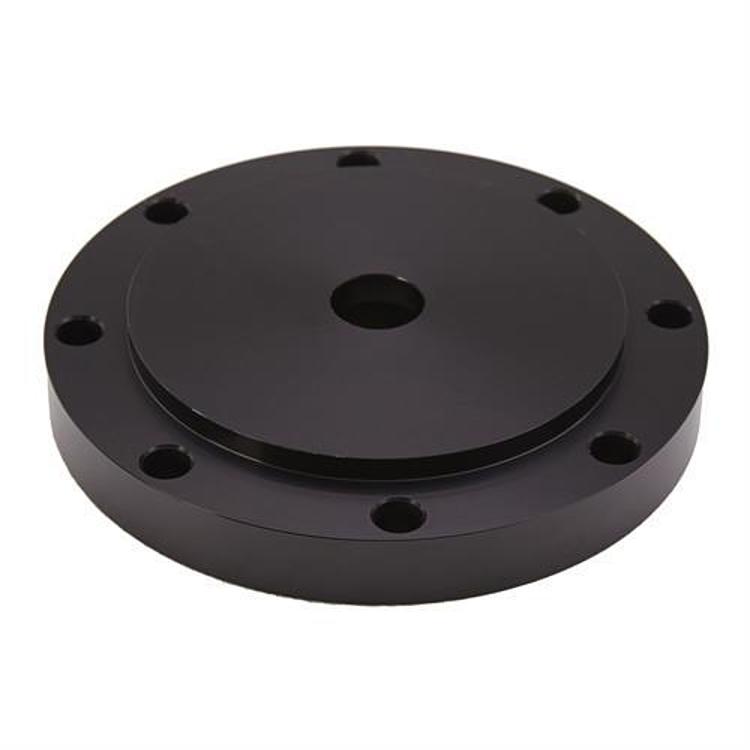

Driveline spacers and bump stop extensions help control the change in driveline angles and suspension travel. The skid plate protects the underside, but it does not replace a check of the front brake lines and steering components. Look for wear at the tie rod ends and ball joints during regular service.

  • Check driveline angles after the first trail runs
  • Inspect bump stop extensions for cracks
  • Keep skid plate bolts snug and check them regularly

Specifications

Brand Pro Comp Suspension
Part number K1085B
UPC 70000554025
Lift height 6 inches front, 3.5 inches rear
Lift height range 5 to 6.99 inches
Front lift Crossmembers and 4WD steering knuckles
Steering correction None
Rear lift Lift blocks and U-bolts

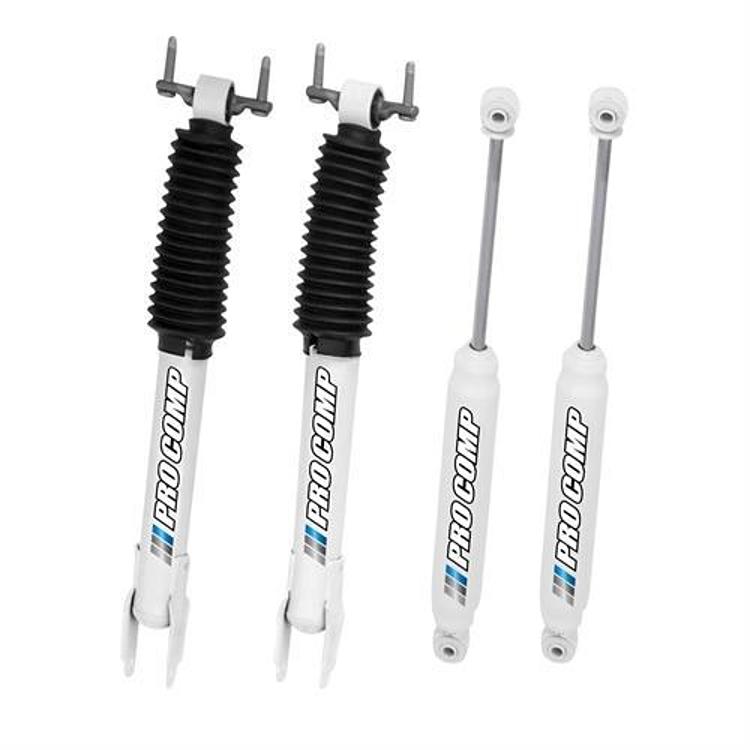

Front shocks ES9000
Shocks included Yes
Fitment Direct fit

Vehicle fitment

It fits the 2011-2018 Chevrolet Silverado 2500 HD (High Country, LT, LTZ and WT), the 2011-2018 GMC Sierra 2500 HD (Base, Denali, SLE, SLT and WT) and the 2018 GMC Sierra 3500 HD (Base, Denali, SLE and SLT).

Earlier 2500 HD years and 1500-series trucks are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The crossmember and knuckle design replaces the factory front components, so have the alignment and driveline angles checked after installation. The install needs no welding or drilling.

What’s included

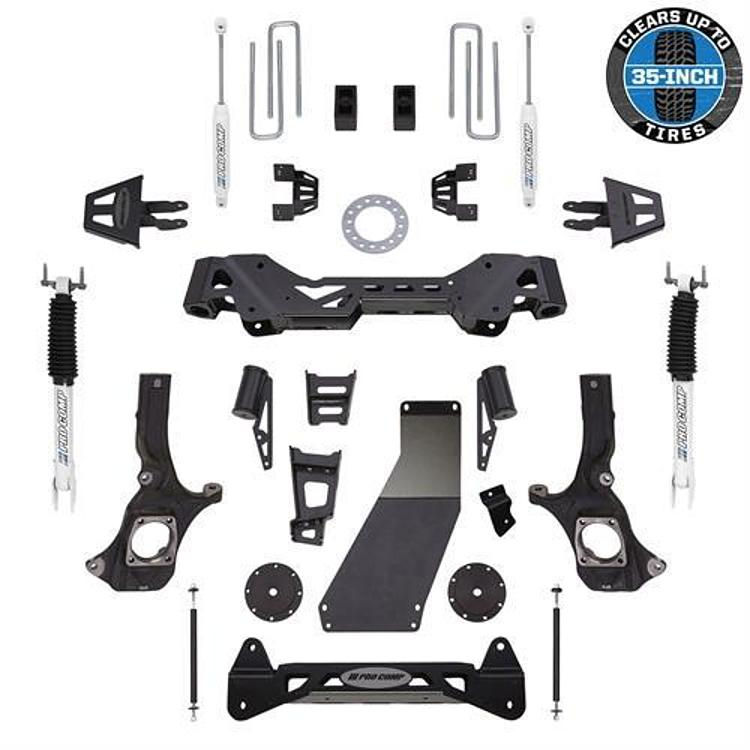

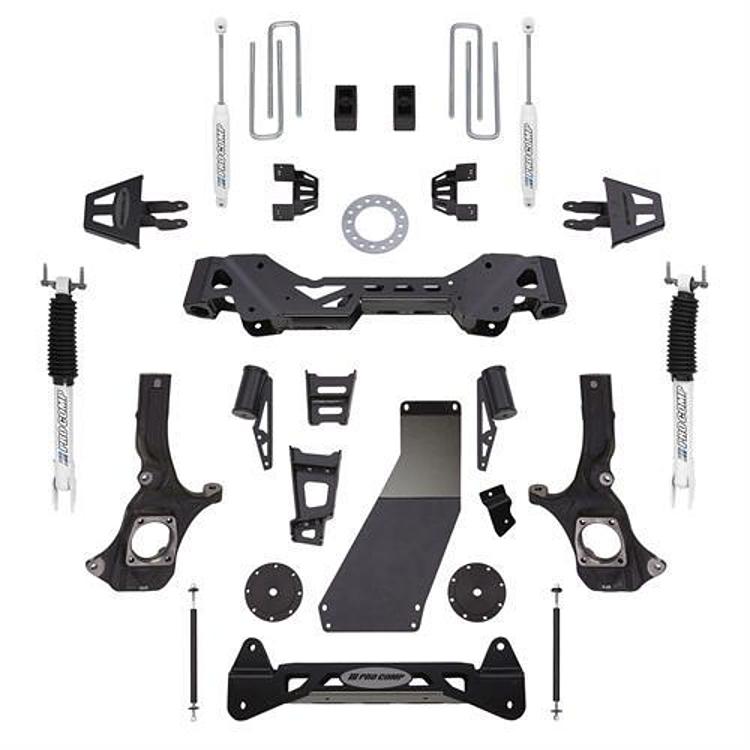

The kit includes the front crossmembers and steering knuckles, rear lift blocks with U-bolts, driveline spacers, bump stop extensions, a skid plate and ES9000 front shocks.

SKU: EXPK1085B Category:

Specification

Shipping weight 391.20 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 2500 HD2011–2018High Country, LT, LTZ, WT
GMC Sierra 2500 HD2011–2018Base, Denali, SLE, SLT, WT
GMC Sierra 3500 HD2018Base, Denali, SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K1085B fit a 2015 Chevrolet Silverado 2500 HD?

Yes. A 2015 model falls within the 2011-2018 range for the Silverado 2500 HD. That range covers the High Country, LT, LTZ and WT versions.

Will the K1085B clear 35-inch tires?

Yes. The kit clears 35-inch tires with no trimming needed. Check tire fit again once the truck is aligned and loaded for daily use.

Does the K1085B need welding or drilling?

No welding or drilling is needed. The install is a complete bolt-on system, and it does not require cutting the differential.

Do crossmember lifts change how a truck handles towing?

They can. Changing front geometry and rear ride height alters how weight sits on the axles, so towing and braking should be checked after installation. Recheck tire pressure and load ratings for heavier tires.
