Overview
The Pro Comp K4106B is a 6-inch stage 1 coil spring lift with ES3000 front and rear shocks. It suits 1990–1996 Ford F-150 trucks, and the lift height range is 5 to 6.99 inches.
The front uses coil springs with radius arm brackets and I beam brackets, and the rear is raised with a block and U-bolt kit. A pitman arm corrects the steering, and extended length SS brake lines are included. The shock boots are not included.
Key features
- 6-inch lift, stage 1
- Front coil springs with radius arm brackets
- I beam brackets
- Pitman arm steering correction
- Extended length SS brake lines
- Rear block and U-bolt lift
Brake line and steering care
Stainless steel brake lines resist corrosion and tend to hold their shape better than rubber hoses, but they still need periodic inspection at fittings and clamps. Extended length lines should be routed clear of moving suspension parts, and any kinks or chafing should be corrected before driving.
A pitman arm change affects the steering linkage, so any play in the drag link, tie rods or ball joints should be addressed at the same time. After adjustment, check centering on a level road and recheck the steering feel after the first few drives. Keep cotter pins and grease on hand for routine service.
Shock boots are not part of the kit, so inspect the ES3000 shock bodies and mounts separately for leaks and bushing wear. Boots and dust seals protect the shaft from grit, and replacing them when they split helps prevent premature shock wear.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4106B |
| UPC | 614901125337 |
| Lift | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Radius arm |
| Front lift | Coil springs with radius arm and I beam brackets |
| Rear lift | Block and U-bolt kit |
| Steering correction | Pitman arm |
| Front shocks | ES3000 |
| Rear shocks | ES3000 |
| Brake lines | Extended length SS |
| Shock boots | Not included |
Vehicle fitment
It fits 1990–1996 Ford F-150 trucks only. Verify trim and year before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Radius arm and I beam brackets change the front geometry, so set the alignment after installation. Check the extended SS brake lines for routing at the new height before the wheels are fitted.

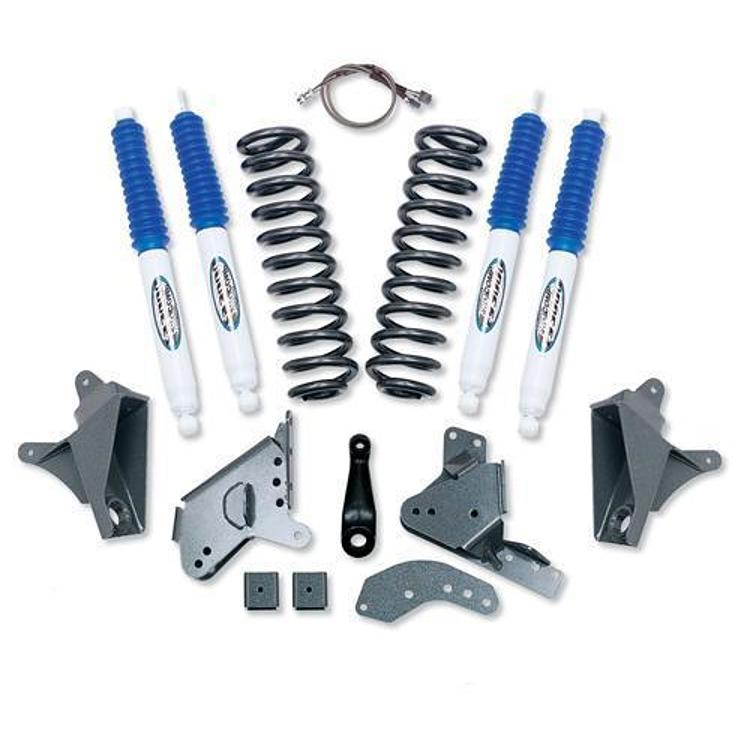

What’s included
The kit includes front coil springs, radius arm brackets, I beam brackets, a pitman arm, extended length SS brake lines, a rear block and U-bolt kit and ES3000 front and rear shocks. Shock boots are not included.
