Pro Comp 6 Inch Stage II Lift Kit with ES9000 Shocks – K4032B

Pro Comp Suspension

Shop Ford F-250 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch stage 2 coil spring lift with radius arms for Ford F-250 and F-350 Super Duty
  • Front sway bar links, bump stop extensions and pitman arm correction
  • Brake line extension brackets and a rear block and U-bolt kit with add-a-leafs
  • ES9000 shocks included with the kit

Description

Overview

The Pro Comp K4032B is a 6-inch stage 2 coil spring lift with radius arms and ES9000 shocks. It fits 2006–2007 Ford F-250 Super Duty and F-350 Super Duty models in the King Ranch, Lariat, XL and XLT trims.

The front uses coil springs and radius arms, with front sway bar links, bump stop extensions and brake line extension brackets. A pitman arm corrects the steering. The rear uses a block and U-bolt kit with add-a-leafs, and the lift height range is 5 to 6.99 inches.

Key features

  • 6-inch lift, stage 2
  • Front coil springs with radius arms
  • Front sway bar links and bump stop extensions
  • Pitman arm steering correction
  • Brake line extension brackets
  • Rear block, U-bolt kit and add-a-leafs

Before you buy

A coil spring lift replaces the factory front springs and the rear leaf setup on a Super Duty, raising the body while the axles and suspension arms are repositioned. Radius arms hold the front axle in place under braking and acceleration, which matters more once the ride height changes. Because the geometry moves, the front end usually needs a new alignment and the steering needs a check after the work is done. Stock front bushings and brake hoses also deserve a look, since the lines and joints are stretched by the added height.

When choosing a kit of this type, match the lift to the tire size you plan to run and to any bumper or steering changes you already have. Shocks are often replaced together with the springs, so a matched shock package helps the truck ride consistently. Check the rear driveline angles once the rear is lifted, and inspect the U-bolts after the first few drives. Worn ball joints and tie rod ends are commonly replaced during the install, because they carry more load at the new angles.

Specifications

Brand Pro Comp Suspension
Part number K4032B
UPC 614901124620
Lift 6 inches, stage 2
Lift height range 5 to 6.99 inches
Suspension type Radius arm
Front lift Coil springs with radius arms
Rear lift Block, U-bolts and add-a-leaf
Steering correction Pitman arm
Front shocks ES9000
Shocks included Yes

Vehicle fitment

It fits 2006–2007 Ford F-250 Super Duty and F-350 Super Duty trucks in the King Ranch, Lariat, XL and XLT trims. Other Ford model years fall outside this fit.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Radius arms change the front axle location and caster, so the front alignment must be set once the kit is installed. Check the pitman arm centering and the driveline angles after the rear block and U-bolts are fitted.

What’s included

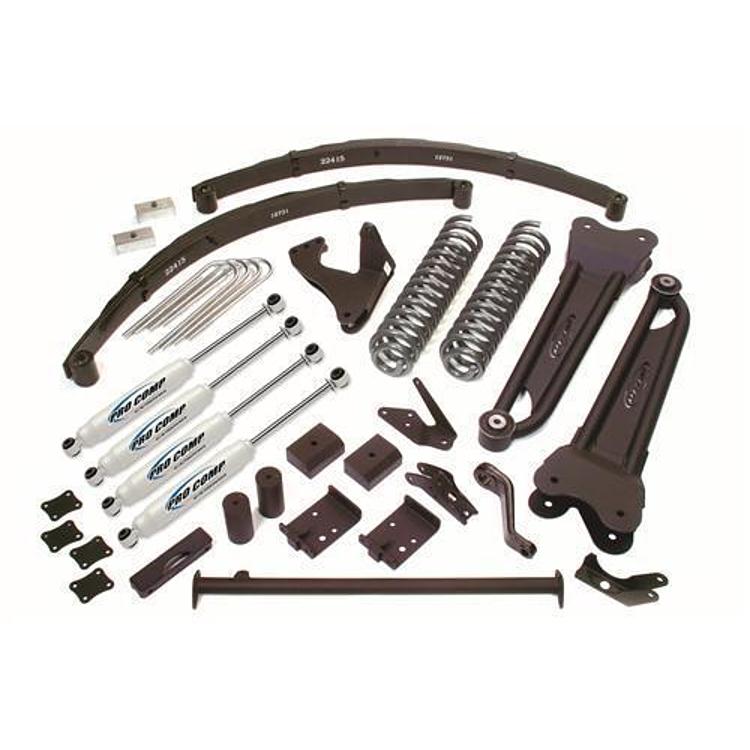

The kit includes front coil springs, radius arms, front sway bar links, bump stop extensions, a pitman arm, brake line extension brackets, a rear block and U-bolt kit with add-a-leafs and ES9000 shocks.

SKU: EXPK4032B Category:

Specification

Shipping weight 262.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2006–2007King Ranch, Lariat, XL, XLT
Ford F-350 Super Duty2006–2007King Ranch, Lariat, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4032B fit a 2007 Ford F-350 Super Duty?

Yes. It fits 2006–2007 Ford F-350 Super Duty models, which includes 2007. Confirm the trim is King Ranch, Lariat, XL or XLT before ordering.

Is the K4032B a stage 1 or stage 2 kit?

It is a 6-inch stage 2 lift with radius arms at the front. The rear uses a block and U-bolt kit with add-a-leafs.

Are the shocks included?

Yes. ES9000 shocks come with the stage 2 lift kit, so the shock package does not need to be bought separately. Check the package contents against your installation before starting.

Will I need an alignment after installing radius arms?

Yes. The new radius arm angles shift caster and axle position, so a front alignment should follow the install. Have the steering centering checked during the same visit.
