Pro Comp 2.5 Inch Lift Kit with ES3000 Shocks – K3075

Pro Comp Suspension

Shop Jeep CJ5 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 2.5-inch stage 1 leaf spring lift for 1976–1981 Jeep CJ5 and CJ7 models
  • Front leaf springs and rear springs with U-bolts
  • ES3000 front and rear shocks in the rear position
  • Max tire size 32×11.50 on 15-inch or larger wheels

Description

Overview

The Pro Comp K3075 is a 2.5-inch stage 1 leaf spring lift with ES3000 shocks, designed for 1976–1981 Jeep CJ5 and CJ7 models. The front uses leaf springs and the rear uses springs with U-bolts. ES3000 shocks are supplied at both ends, and the kit is a rear position part. The maximum tire size is 32×11.50.

The front uses leaf springs and the rear uses springs with U-bolts. ES3000 shocks are supplied at both ends, and the kit is marked as a rear position part. The maximum tire size is 32×11.50.

Key features

  • 2.5-inch stage 1 lift
  • Front leaf springs

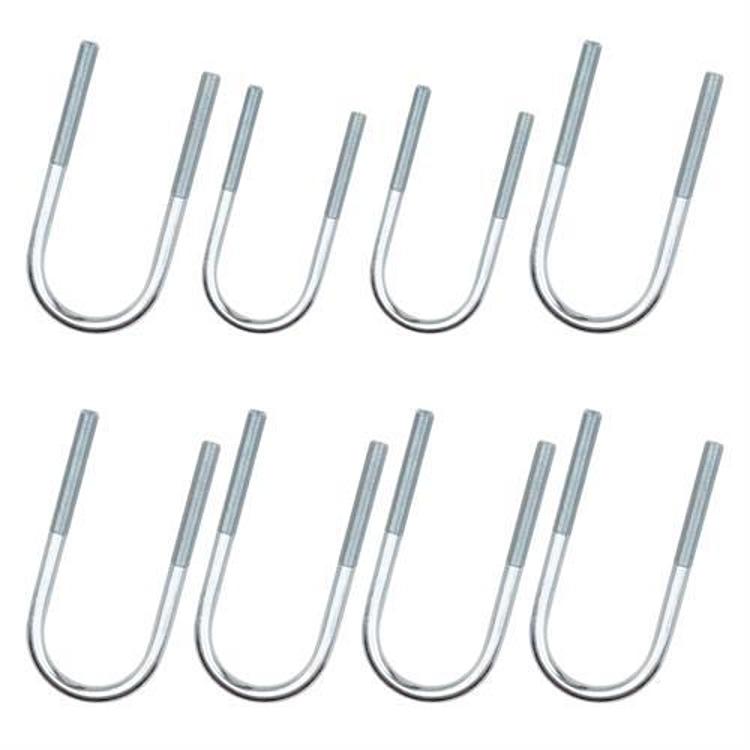

  • Rear springs and U-bolts

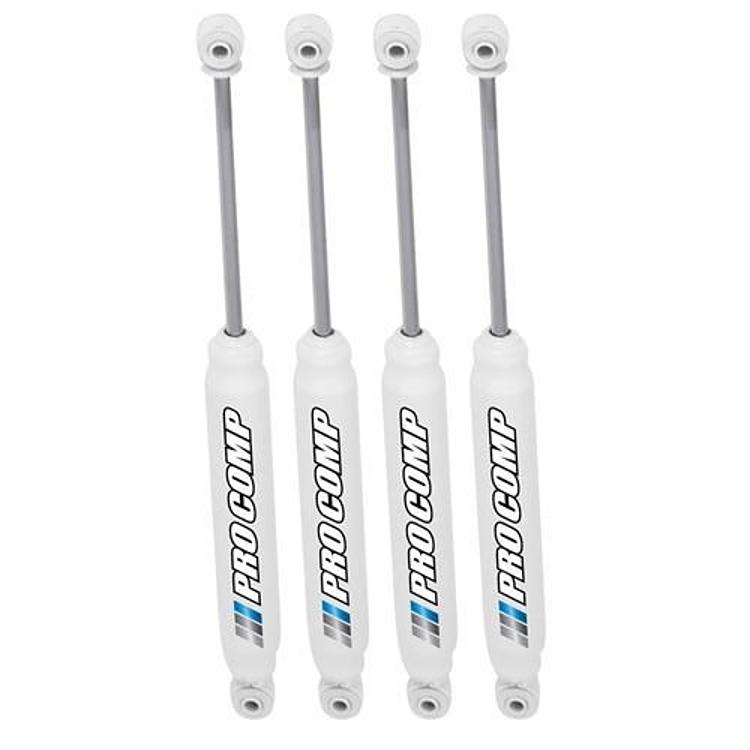

  • ES3000 front and rear shocks
  • Wheel size 15 inches or larger
  • Wheel width 8 to 12 inches

Setting up the driveline

A 2.5-inch leaf spring lift changes the rear axle location, and that changes the pinion angle. The result is often a vibration at highway speed that only appears once the truck is loaded. Measure the angle with a digital inclinometer after the springs settle, and correct it if the difference is large.

Narrow backspace options make wheel selection a bit more involved on these trucks. Before buying wheels, confirm the offset clears the fenders at both full steering lock and full compression. Consider tire sizes carefully, since a larger diameter shifts gearing and adds weight to the steering.

Check the transmission and transfer case mounts as well, since the drop in the drivetrain can alter their angles. Re-tighten U-bolts after the first few drives and watch for shock mount wear, particularly if the truck sees rough trails.

Specifications

Brand Pro Comp Suspension
Part number K3075
UPC 614901123302
Lift 2.5 inches, stage 1
Suspension type Leaf spring
Front lift Leaf springs
Rear lift Springs and U-bolts
Front shocks ES3000
Rear shocks ES3000
Position Rear
Max tire size 32×11.50
Wheel size range 15 inches or larger
Wheel width range 8 to 12 inches
Min-max backspace 3.25 to 4.5 inches

Vehicle fitment

It fits 1976–1981 Jeep CJ5 and 1976–1981 Jeep CJ7 models in the trims named above. Wrangler models and CJ years outside 1976 to 1981 do not fit this kit. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Leaf spring lifts change the rear axle location and pinion angle, so check the driveline angles after installation. Because the kit uses a narrow backspace range, confirm the wheel offset before the tires go on.

What’s included

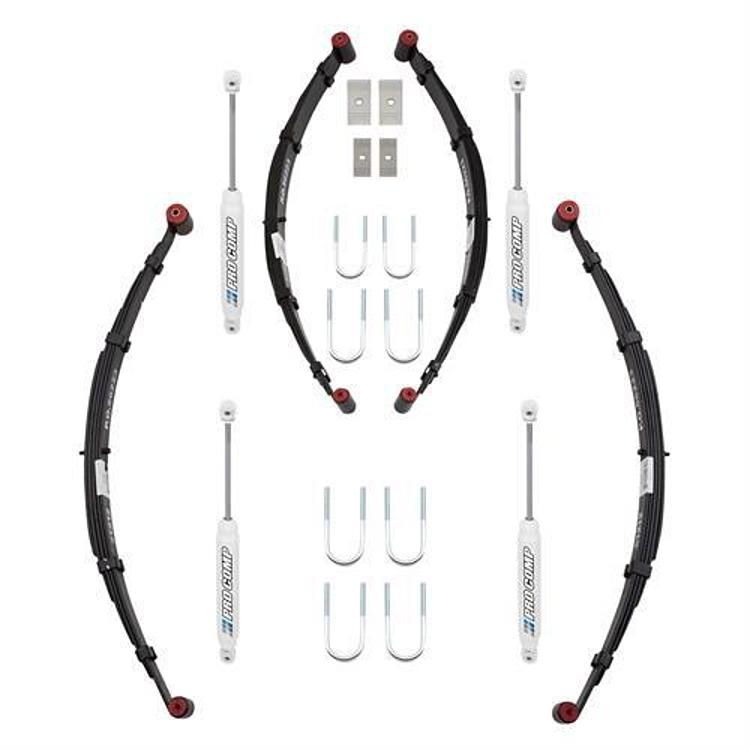

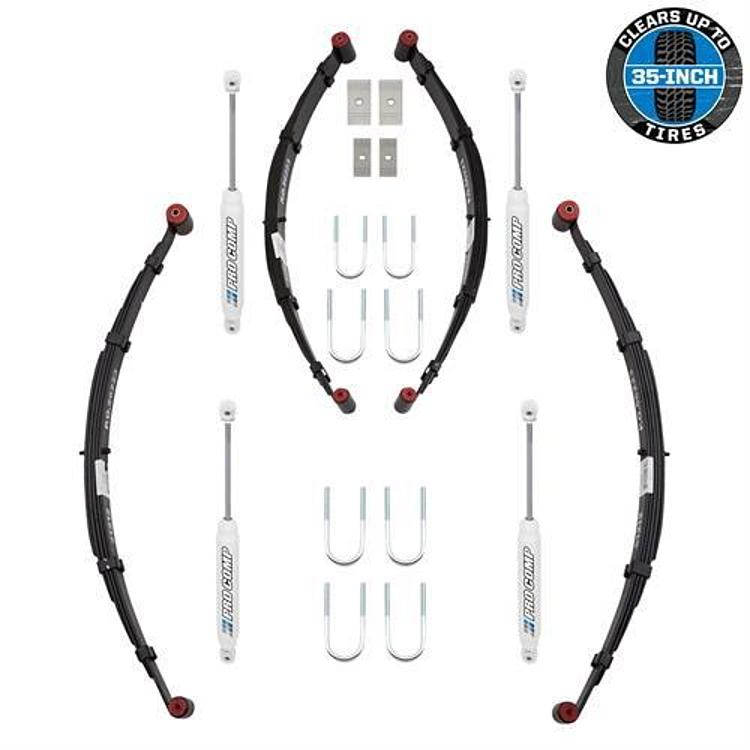

The kit includes front leaf springs, rear springs and U-bolts, and ES3000 front and rear shocks.

SKU: EXPK3075 Category:

Specification

Shipping weight 157.46 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51976–1981Base, Golden Eagle, Laredo, Renegade
Jeep CJ71976–1981Base, Golden Eagle, Golden Hawk, Laredo, Renegade

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K3075 fit a 1978 Jeep CJ7?

Yes. It fits 1976–1981 Jeep CJ7 models, which includes 1978. Confirm the trim is one of the CJ7 Base, Golden Eagle, Golden Hawk, Laredo or Renegade trims before ordering.

Is the K3075 the same as the K3067?

They share a fitment list and both use ES3000 shocks. The K3075 is a 2.5-inch lift, while the K3067 is a 4-inch lift with a pitman arm and brake lines not included.

Are shocks included with the K3075?

Yes. ES3000 shocks are supplied at both the front and the rear as part of the leaf spring lift, so no separate shocks are needed to complete the kit. Confirm shock length against your suspension before installing.

Will the rear pinion angle need attention after a leaf spring lift?

Often yes. Raising the rear with leaf springs and U-bolts changes the pinion angle, which can cause vibration if it is not checked. Measure the angle after installation and correct it if needed.
