Overview
The Pro Comp K5063 is a 2.5-inch Stage 1 leaf spring lift kit with ES3000 front and rear shocks for the 1975–1980 Toyota Land Cruiser Base. It uses leaf springs at the front and springs with U-bolts at the rear to raise the truck.
The specifications table lists no steering correction for this kit. The kit is also listed with a maximum tire size of 33×12.50, and shock boots are not included.
Key features
- 2.5-inch lift height from a Stage 1 kit
- Front leaf springs
- Rear springs and U-bolts
- ES3000 front and rear shocks
- No steering correction required
- Maximum tire size 33×12.50
Living with a leaf spring lift
Leaf springs control both ride height and axle location on a solid-axle truck, so a spring change alters how the truck sits and how the axle moves under load. Stock springs settle over years of use, and replacement springs bring their own rates. On the trail, a lift like this gives more clearance over rocks and ruts, while on pavement the ride will feel different from stock, depending on load and tire choice.
Rear U-bolts should be retightened after the first few drives, since new clamps and spring seats can settle. Inspect the spring pack, bushings and shackles periodically, and look for cracked leaves, worn eyes or loose hardware. Shock angles change with a lift, so confirm the shocks have room through full travel without binding on the frame or axle.
Before buying, consider the rest of the driveline. A taller ride height can increase driveline angles, so check them after installation and plan for upgrades if vibration appears.
- Retighten U-bolts after the first few drives
- Inspect leaf packs and shackle bushings regularly
- Check shock clearance through full suspension travel
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K5063 |
| UPC | 614901207316 |
| Lift height | 2.5 inch |
| Lift kit stage | Stage 1 |
| Suspension type | Leaf spring |
| Front lift | Leaf springs |
| Steering correction | None required |
| Rear lift | Springs and U-bolts |
| Front shocks | ES3000 |
| Rear shocks | ES3000 |
| Shock boots | Not included |
| Maximum tire size | 33×12.50 |
Vehicle fitment
It fits the 1975–1980 Toyota Land Cruiser Base.
Only the 1975 through 1980 Land Cruiser Base model years are on the list, so other Land Cruiser years and trim levels are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Leaf springs and rear U-bolts change the ride height and spring rate, so have the axle position checked and confirm the brake lines have enough length once the kit is on the truck.

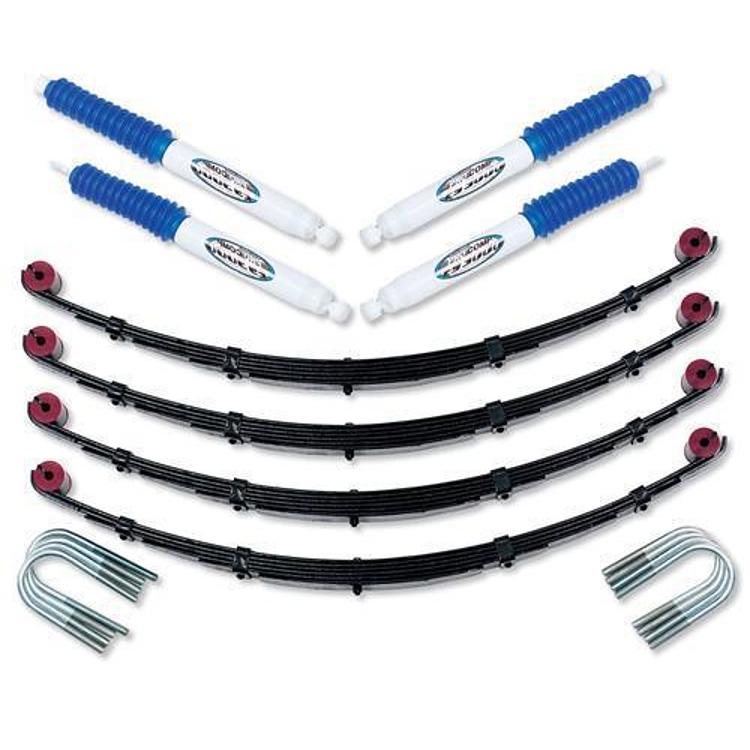

What’s included
The kit includes the front leaf springs, the rear springs and U-bolts, and ES3000 front and rear shocks.
Not included: shock boots.
