Pro Comp 4″ Stage II Lift Kit with PRO-X Shocks – K4207T

Pro Comp Suspension

Shop Ford F-250 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2017 to 2022 Ford F-250 Super Duty and 2017 to 2018 F-350 Super Duty
  • 4-inch stage 2 lift with heavy-duty radius arm upgrades
  • PRO-X front and rear shocks included
  • Radius arms made from 3/16-inch laser-cut steel

Description

Overview

The Pro Comp 4-inch Stage II Lift Kit with PRO-X Shocks, part number EXPK4207T (kit K4207T), is a stage 2 suspension lift for the 2017 Ford F-250 and F-350 Super Duty trucks. It fits the F-250 Super Duty from 2017 to 2022 and the F-350 Super Duty for 2017 and 2018, across the King Ranch, Lariat, Limited, Platinum, XL and XLT versions.

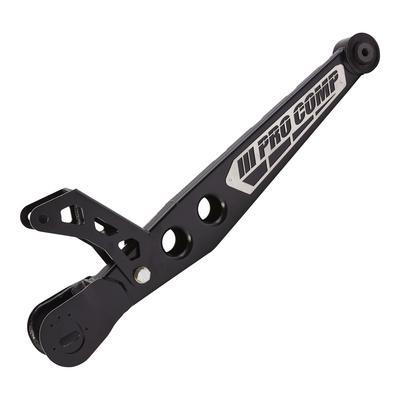

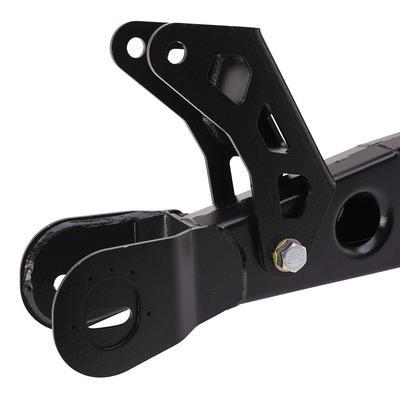

This stage 2 system is a complete redesign for the 2017 Super Duty. It includes heavy-duty radius arm upgrades for added strength and durability. The arms are cut from 3/16-inch steel by laser and finished with a black powder coat, which improves both their appearance and their function.

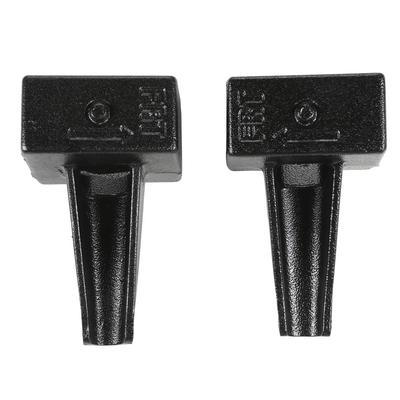

The kit is listed at 4 inches of stage 2 lift, with a lift height range of 4 to 5.5 inches. The back of the truck is raised with a block or spacer and a block and U-bolt component. PRO-X shocks are included at the front and the rear.

Key features

  • 4-inch stage 2 suspension lift
  • Heavy-duty radius arm upgrades for added strength and durability
  • Laser-cut 3/16-inch steel radius arms with black powder coat
  • PRO-X front and rear shocks, included
  • Lift height range of 4 to 5.5 inches

Radius arm care and checks

Radius arms control the axle’s fore and aft position, so they carry much of the load during braking and acceleration. Bushings at both ends should be checked for cracking or play, especially on a truck that tows or hauls often.

Powder coat protects the steel, but chips at the bolt holes and welds can start rust. Touch up any exposed metal promptly, and check the mounting hardware for correct torque after the first set of trail or highway miles.

A stage 2 system often changes the driveline angle and the front alignment together. After any radius arm adjustment, have the alignment and the driveline checked, since both affect tire wear and steering feel.

  • Inspect arm bushings for cracking
  • Touch up chips in powder coat
  • Recheck hardware torque after the first drives
  • Watch for uneven front tire wear

Specifications

Brand Pro Comp Suspension
Part number EXPK4207T
Kit code K4207T
Suspension type Lift kit, stage 2
Lift height 4 inches stage 2; range 4 to 5.5 inches
Rear lift method Block or spacer

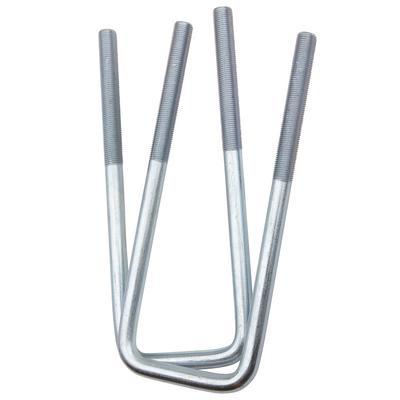

Rear lift component Block and U-bolt
Shocks included Yes

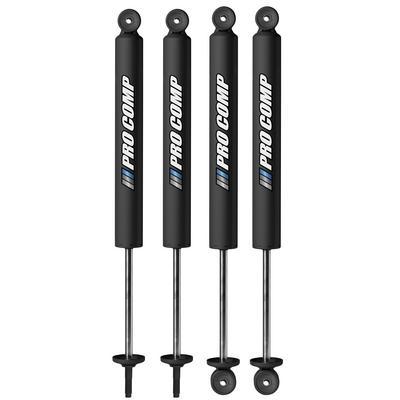

Front shocks PRO-X
Rear shocks PRO-X
Fit type Direct fit

Vehicle fitment

It fits the 2017 to 2022 Ford F-250 Super Duty across the King Ranch, Lariat, Limited, Platinum, XL and XLT versions, and the 2017 to 2018 Ford F-350 Super Duty in the same versions.

The list does not include the F-350 Super Duty for 2019 and later years, or any Super Duty truck from 2016 and earlier. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The radius arms are part of the stage 2 system, so have the alignment and driveline angles checked after the install.

What’s included

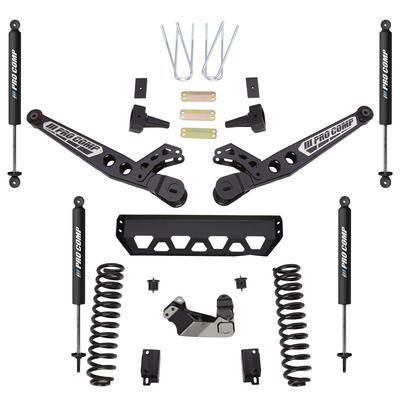

The stage 2 lift kit with the heavy-duty radius arm upgrades, PRO-X front and rear shocks, and the block and U-bolt rear components.

SKU: EXPK4207T Categories: ,

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2017–2022King Ranch, Lariat, Limited, Platinum, XL, XLT
Ford F-350 Super Duty2017–2018King Ranch, Lariat, Limited, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp EXPK4207T fit a 2018 Ford F-350 Super Duty?

Yes. It fits the 2018 Ford F-350 Super Duty, which falls within the 2017 to 2018 range. Check the King Ranch, Lariat, Limited, Platinum, XL and XLT trim on your truck before ordering.

What material are the radius arms?

The radius arms are 3/16-inch steel, laser cut and finished with a black powder coat. Their heavy-duty design adds strength and durability to the stage 2 system.

Does it include PRO-X shocks?

Yes. PRO-X shocks are listed at the front and the rear, and they are included with the kit. The stage 2 kit is listed at 4 inches, with a range of 4 to 5.5 inches.

How often should radius arm bushings be inspected?

Inspect them at each tire rotation or oil change, and sooner after off-road use or heavy towing. Look for cracking, tearing or movement at the bracket, since worn bushings let the axle wander under load.
