Pro Comp 6 Inch Stage II Lift Kit with ES9000 Shocks – K4182B

Pro Comp Suspension

Shop Ford F-350 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • This 6-inch Stage II kit is for 2011–2016 Ford F-350 Super Duty trucks
  • Replacement radius arms of 4130 Chromoly tubing and 3/16 inch steel plate
  • Specific rate coil springs with a Pitman arm steering correction
  • Lift blocks, U-bolts and add-a-leaf at the rear with ES9000 front shocks

Description

Overview

The Pro Comp K4182B is a 6-inch Stage II lift kit with ES9000 shocks for the 2011–2016 Ford F-350 Super Duty. The replacement radius arms are made from 4130 Chromoly tubing and 3/16 inch thick steel plate, and the front also uses specific rate coil springs.

The rear is lifted with lift blocks, U-bolts and add-a-leafs, and a Pitman arm corrects the steering. A front track bar bracket and sway bar links are included. The Stage II radius arms are made from 4130 Chromoly tubing and 3/16 inch thick steel plate.

Key features

  • 6-inch lift height, Stage II
  • Replacement radius arms of 4130 Chromoly tubing
  • Radius arms made from 3/16 inch thick steel plate
  • Specific rate coil springs and spacers
  • Pitman arm steering correction
  • Lift blocks, U-bolts and add-a-leafs at the rear

Chromoly radius arms explained

Radius arms locate the axle fore and aft and carry braking and acceleration loads, so their material and wall thickness matter once the truck is lifted. Chromoly tubing is a steel alloy often chosen where a strong, lighter tube is wanted. Steel plate brackets and welds take the highest stresses, so inspect those joints regularly.

Radius arm bushings wear over time, and a lift can make them work harder because the arm angle changes. Look for cracked bushings, play at the axle end, or clunks on acceleration. When the arms are replaced, the track bar and sway bar links are usually checked at the same time so the front stays square.

  • Inspect weld seams after rough trail use
  • Replace worn bushings before they affect alignment
  • Check arm clearance at full suspension compression

Specifications

Brand Pro Comp Suspension
Part number K4182B
UPC 70000544827
Lift height 6 inch (lift height range 5 to 6.99 inches)
Lift kit stage Stage 2
Radius arm material 4130 Chromoly tubing with 3/16 inch thick steel plate
Front lift Specific rate coil springs and spacers
Steering correction Pitman arm
Rear lift Lift blocks, U-bolts and add-a-leaf
Front shocks ES9000

Vehicle fitment

Trim coverage includes King Ranch, Lariat, Platinum, XL and XLT for the 2011–2016 Ford F-350 Super Duty.

This entry is limited to the F-350 Super Duty model years 2011 through 2016. The F-250 and other Super Duty generations are not included. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Replacement radius arms and a Pitman arm change the front geometry, so the alignment and the driveline angles should be checked after the install is complete.

What’s included

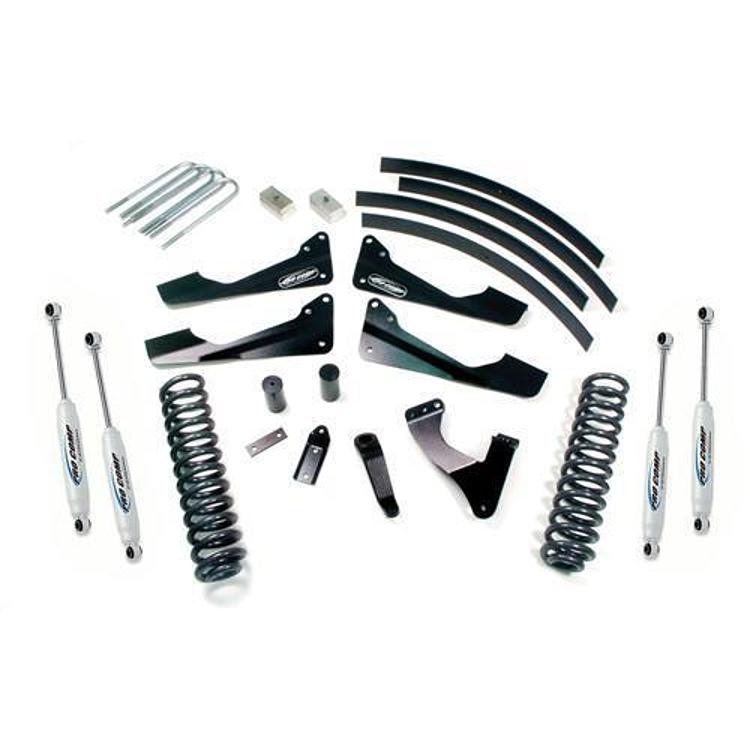

The kit includes replacement radius arms, specific rate coil springs and spacers, the Pitman arm steering correction, a front track bar bracket, sway bar links, lift blocks, U-bolts and add-a-leafs, and ES9000 front shocks.

SKU: EXPK4182B Category:

Specification

Shipping weight 313.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-350 Super Duty2011–2016King Ranch, Lariat, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What radius arms come with the K4182B?

Replacement radius arms made from 4130 Chromoly tubing and 3/16 inch thick steel plate are included, as the specifications table lists.

Does the K4182B fit a 2016 F-350 Super Duty?

Yes. The F-350 Super Duty falls within the 2011 through 2016 years covered, so a 2016 truck is inside the range. Confirm fit for your vehicle's year, model and trim before ordering.

What shocks are included with this Stage II kit?

ES9000 front shocks come with the kit. The Stage II hardware includes the radius arms, coil springs, Pitman arm and rear blocks, so the front shock is part of the matched package.

Can I reuse the stock radius arms?

Not with this kit, since the replacement arms are part of the Stage II front. Keep the factory arms only if you plan a different setup, and confirm fit for your vehicle's year, model and trim before ordering any hardware.

How often should radius arm bolts be checked?

Check them after the first few drives and then at routine service intervals. Look for signs of movement, such as paint cracks around the bolt head or a shifting bushing. Retorque the bolts to the recommended value and replace any bolt that shows stretch.
