Overview
The Pro Comp 4 Inch Stage I Lift Kit with ES3000 Shocks, part number K1059, is a 4-inch leaf spring lift for Suburban versions of 1977-1986 Chevrolet and GMC trucks. It covers the Chevrolet K20 Suburban, the GMC C2500 Suburban, the GMC K25 Suburban and the GMC K2500 Suburban.
The front uses leaf springs and U-bolts, and the steering correction is a steering arm. The rear uses a block and U-bolt kit with add-a-leaf components. ES3000 shocks are fitted at the front and rear, and brake line extension brackets are included. The lift height range is 3 to 4.99 inches, with a maximum tire size of 33×12.5.
Key features
- 4-inch stage 1 lift
- Front leaf springs and U-bolts
- Steering arm steering correction
- Brake line extension brackets
- Rear block and U-bolt kit with add-a-leafs
- ES3000 front and rear shocks
Alignment and tire choice
A 4-inch leaf spring lift raises the front end while keeping the springs and U-bolts in the same basic layout as stock. The steering arm and the new front height change caster and toe, so a front alignment should follow the install. Tire choice needs attention too, since the maximum tire size is the limit to stay within.
Rear block kits and add-a-leaf components work with the front lift to keep the truck level. Check the rear hangers and shackles for wear while the rear is apart, because loose parts can change the rear geometry and make the alignment hard to hold.
- Set alignment after the first few hundred miles
- Keep tire rotation consistent to reduce uneven wear
- Check fender clearance at full lock with the chosen tires
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K1059 |
| UPC | 614901122398 |
| Lift height | 4 inches, stage 1 |
| Lift height range | 3 to 4.99 inches |
| Front suspension | Leaf springs and U-bolts |
| Steering correction | Steering arm |
| Rear lift | Block and U-bolt kit with add-a-leafs |
| Shocks | ES3000, front and rear (shock boots not included) |
| Maximum tire size | 33×12.5 |
| Fitment | Direct fit |
Vehicle fitment
The vehicles covered are the 1977-1986 Chevrolet K20 Suburban (Custom, Custom Deluxe, Deluxe, Scottsdale and Silverado), the 1986 GMC C2500 Suburban (Sierra Classic), the 1977-1978 GMC K25 Suburban and the 1979-1986 GMC K2500 Suburban.
Pickup and Blazer models are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 4-inch leaf spring front end with a steering arm changes alignment, so have the front alignment checked after installation.

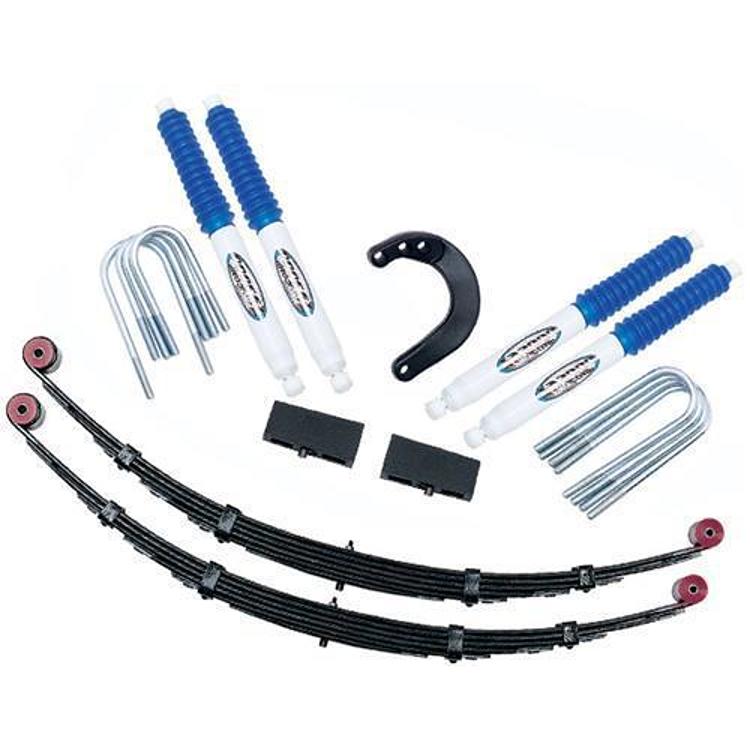

What’s included
The kit includes front leaf springs and U-bolts, a steering arm, brake line extension brackets, a rear block and U-bolt kit with add-a-leaf components, and ES3000 shocks. Shock boots are not included.
