Pro Comp 6 Inch Stage I Lift Kit with ES3000 Shocks – K4077B

Pro Comp Suspension

Shop Ford Bronco Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch stage 1 coil spring lift with radius arm brackets for 1981–1989 Ford Bronco
  • Rear add-a-leafs with block and U-bolt hardware
  • Pitman arm, bump stop extensions and extended length brake lines
  • ES3000 front and rear shocks

Description

Overview

The Pro Comp K4077B is a 6-inch stage 1 coil spring lift for the 1981–1989 Ford Bronco. The front uses coil springs with radius arm brackets, and the rear is raised with add-a-leafs and block, U-bolt and add-a-leaf hardware. The lift height range is 5 to 6.99 inches.

ES3000 front and rear shocks are supplied. Bump stop extensions and a pitman arm for steering correction are included, along with extended length brake lines. The shock boots are not included.

Key features

  • 6-inch lift, stage 1
  • Front coil springs with radius arm brackets
  • Rear add-a-leaf lift
  • Bump stop extensions
  • Pitman arm steering correction
  • Extended length brake lines

Working on an older Bronco

Older Broncos often show corrosion at the frame, spring perches and body mounts, so those areas should be checked before a lift is installed. A lift adds load to the mounts and the front radius arm brackets, so any weak spot should be repaired before the truck is driven at the new height.

Add-a-leafs and bump stop extensions change how the springs and bumps engage, so the suspension should be checked after the first drives. Extended brake lines reduce the risk of stretching, but they still need to be routed away from the tire and body. Steering geometry should be checked after the front is raised.

  • Inspect spring perches and mounts for rust
  • Check that the pitman arm and drag link have no play
  • Route brake lines clear of the tire at full turn

Specifications

Brand Pro Comp Suspension
Part number K4077B
UPC 614901125207
Lift 6 inches, stage 1
Lift height range 5 to 6.99 inches
Suspension type Radius arm
Front lift Coil springs with radius arm brackets
Rear lift Add-a-leafs
Steering correction Pitman arm
Front shocks ES3000
Rear shocks ES3000
Shock boots Not included

Vehicle fitment

It fits 1981–1989 Ford Bronco models. F-150 trucks and later Bronco years are not covered by this kit.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Add-a-leafs raise the rear by adding leaves to the springs, so the rear driveline angles should be checked after installation. The front radius arm brackets change the caster, so the alignment should be set once the lift is complete.

What’s included

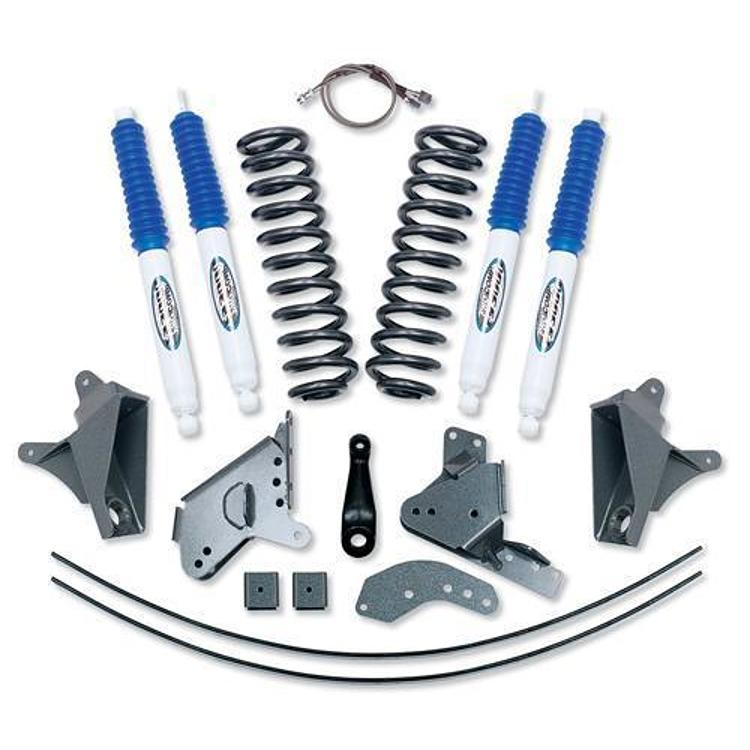

The kit includes front coil springs, radius arm brackets, bump stop extensions, a pitman arm, extended length brake lines, rear add-a-leafs and ES3000 front and rear shocks. Shock boots are not included.

SKU: EXPK4077B Category:

Specification

Shipping weight 182.10 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford Bronco1981–1989Custom, Eddie Bauer, Ranger XLT, XLS, XLT, XLT Lariat

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4077B fit a 1983 Ford Bronco?

Yes. It fits 1981–1989 Ford Bronco models, which includes 1983. Confirm your trim is covered for this kit before ordering, since trims vary.

Is the K4077B a 6-inch lift?

Yes. It is a 6-inch stage 1 lift with a lift height range of 5 to 6.99 inches, using radius arm brackets at the front. The rear is raised with add-a-leafs.

Are shock boots included with the K4077B?

No. Shock boots are not supplied with this 6-inch Bronco kit, so ES3000 boots, if wanted, must be bought separately.

Are extended brake lines included with this kit?

Yes. The kit includes extended length brake lines. After installation, check that each line can move through full suspension travel and steering without tension or contact.
