Overview
The Pro Comp K4041B is a 6-inch stage 2 coil spring lift with radius arms and an ES9000 front shock. It fits 2005–2007 Ford F-250 Super Duty and F-350 Super Duty trucks and covers a lift height range of 5 to 6.99 inches.
The front uses coil springs and radius arms, with sway bar links, bump stop extensions, brake line extension brackets and a pitman arm for steering correction. The rear uses springs and U-bolts.
Key features
- 6-inch stage 2 lift
- Front coil springs with radius arms
- Front sway bar links and bump stop extensions
- Pitman arm steering correction
- Brake line extension brackets
- Rear springs and U-bolts
Choosing a lift height
A lift kit raises the body and suspension so larger tires fit without rubbing. The height you pick should match the tires you plan to run, the articulation you need and how much body lift you can accept. Taller setups move the center of gravity upward, so wheel and tire choice matters more on pavement than off it.
Stage numbers describe how much of the work a kit covers rather than a fixed level of performance. A stage 2 package usually adds radius arms and matching steering and brake parts, so it works as one system. Mixing parts from different kits can leave the geometry out of balance.
- Match tire diameter to the lift and fender clearance
- Plan the alignment right after installation
- Check brake hoses for length at full droop
- Re-torque lug nuts after the first drive
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4041B |
| UPC | 614901124842 |
| Lift | 6 inches, stage 2 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Radius arm |
| Front lift | Coil springs with radius arms |
| Rear lift | Springs and U-bolts |
| Steering correction | Pitman arm |
| Front shocks | ES9000 |
Vehicle fitment
It fits 2005–2007 Ford F-250 Super Duty and F-350 Super Duty trucks.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Radius arms change the front alignment and caster, so the alignment should be set after installation. Check the rear driveline angles once the springs and U-bolts are installed.
What’s included

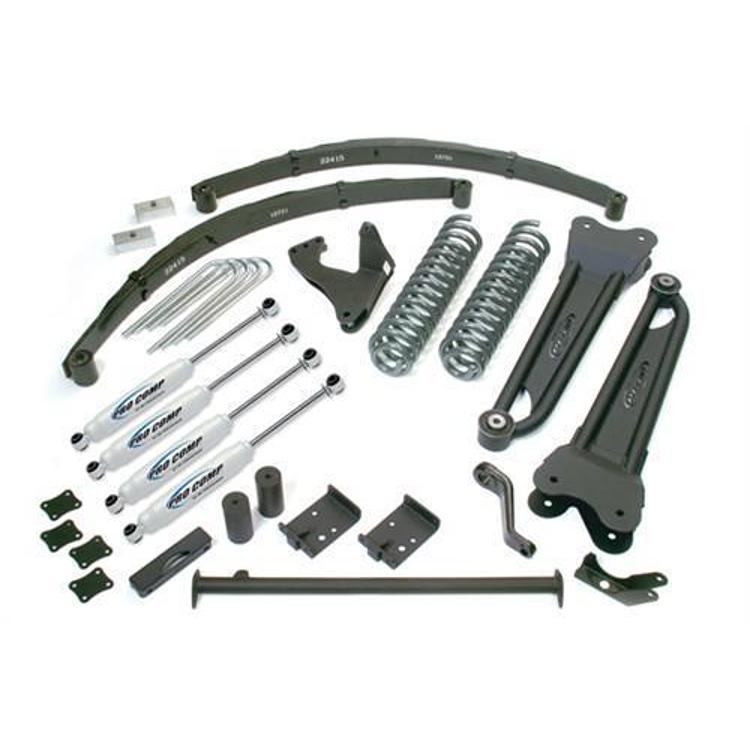

The kit includes front coil springs, radius arms, front sway bar links, bump stop extensions, a pitman arm, brake line extension brackets, rear springs and U-bolts, and an ES9000 front shock.
