Pro Comp 4 Inch Lift Kit with ES3000 Shocks – K3066

Pro Comp Suspension

Shop Jeep CJ7 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch stage 1 leaf spring lift for 1982–1986 Jeep CJ5 and CJ7 models
  • Pitman arm steering correction and extended length brake lines
  • Rear position kit with ES3000 front and rear shocks
  • Max tire size 33×12.50 on 15 to 20-inch wheels

Description

Overview

The Pro Comp K3066 is a 4-inch stage 1 leaf spring lift with ES3000 shocks for Jeep CJ5 and CJ7 models. It suits 1982–1983 CJ5 and 1982–1986 CJ7 models in Base, Laredo, Limited and Renegade trims. Golden Hawk and Golden Eagle trims fall outside its coverage.

The front uses leaf springs and the rear uses springs with U-bolts. A pitman arm corrects steering, and extended length brake lines are fitted for the taller ride height. The kit is set up as a rear position part, with a lift height range of 3 to 4.99 inches.

Key features

  • 4-inch stage 1 lift
  • Front leaf springs
  • Rear springs and U-bolts
  • Pitman arm steering correction
  • Extended length brake lines
  • ES3000 front and rear shocks

Steering and brake line work

The pitman arm change is the part of this kit that most affects steering, because it alters the link between the steering box and the drag link. A taller front end often needs this kind of correction to keep the wheel straight and the steering centered. After installation, check the steering box for play and the drag link for smooth movement before driving at speed.

Extended brake lines let the front brakes move through the new height without strain. Check the lines at full turn and at full suspension travel, and make sure they are not kinked or rubbing the frame or tire. A leaf spring lift also changes the rear axle angle, so a driveline check fits into the same service visit.

  • Check steering centering after the lift
  • Inspect brake lines at full lock
  • Look for drag link wear at service

Specifications

Brand Pro Comp Suspension
Part number K3066
UPC 614901123180
Lift 4 inches, stage 1
Lift height range 3 to 4.99 inches
Suspension type Leaf spring
Front lift Leaf springs
Rear lift Springs and U-bolts
Steering correction Pitman arm
Front shocks ES3000
Rear shocks ES3000
Position Rear
Max tire size 33×12.50
Wheel size range 15 to 20 inches
Wheel width range 8 to 10 inches

Vehicle fitment

It is designed for 1982–1983 Jeep CJ5 and 1982–1986 Jeep CJ7 models. Scrambler and Wrangler models fall outside its coverage.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The pitman arm change alters the steering linkage, so check toe and steering centering after the lift is installed. Measure the brake lines against the new ride height before the wheels are mounted.

What’s included

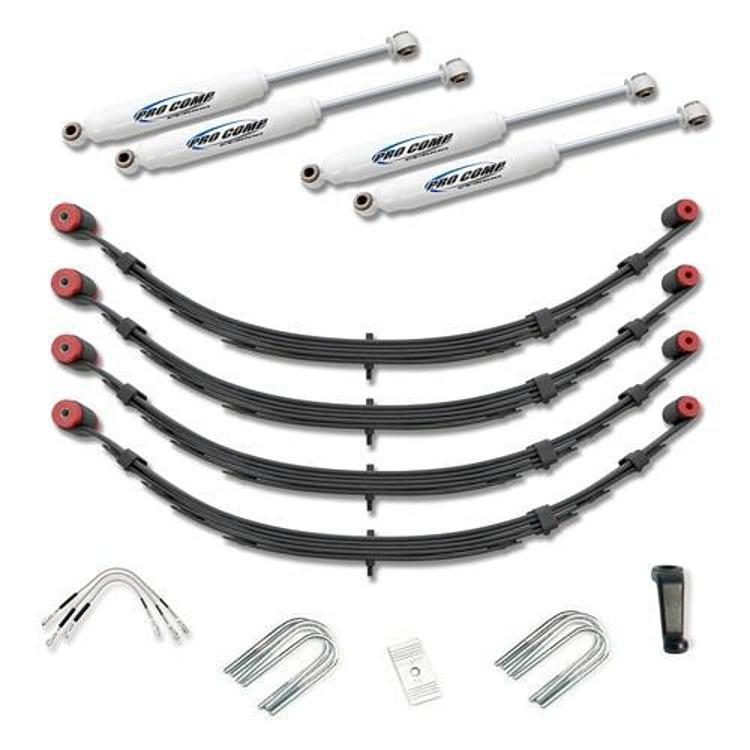

The kit includes front leaf springs, rear springs and U-bolts, a pitman arm for steering correction, extended length brake lines and ES3000 front and rear shocks.

SKU: EXPK3066 Category:

Specification

Shipping weight 167.64 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51982–1983Base, Laredo, Limited, Renegade
Jeep CJ71982–1986Base, Laredo, Limited, Renegade

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K3066 fit a 1984 Jeep CJ7?

Yes. The CJ7 fit covers 1982 through 1986 models, which includes 1984. Confirm the trim against your vehicle before ordering, and check that the pitman arm correction suits your steering.

Is the K3066 a rear position kit?

The kit is set up as a rear position part, so it is intended for the rear of the vehicle. Check the position against your truck and confirm fit by year, model and trim before ordering.

Are shocks included with the K3066?

Yes. ES3000 shocks are fitted at the front and the rear, along with the pitman arm, extended length brake lines and leaf spring lift parts. Confirm your truck's year and model before ordering.

Is a pitman arm change needed with every leaf spring lift?

Not always. A pitman arm correction restores steering geometry when the front is raised, so it helps most when the lift changes the drag link angle. Check steering centering and toe after the lift, and have the linkage inspected if the wheel sits off center.
