Overview
The Pro Comp K4021B is a 6-inch stage 1 lift for the 1999–2004 Ford F-250 Super Duty and F-350 Super Duty in the King Ranch, Lariat, XL and XLT trims. The front uses coil springs with radius arm brackets, and the rear uses a block and U-bolt kit with add-a-leafs.
Front sway bar spacers and bump stop extensions are included, and ES9000 shocks are fitted at both ends. The pitman arm and shock boots are not included. The lift height range is 5 to 6.99 inches.
Key features
- 6-inch stage 1 lift
- Front coil springs with radius arm brackets
- Front sway bar spacers and bump stop extensions
- Rear block, U-bolt kit and add-a-leafs
- ES9000 front and rear shocks
Before you buy
A coil spring lift with radius arm brackets changes how the front suspension moves, so the ride and steering feel different once the truck is back on the road. Extra height improves clearance over ruts and rocks, but the geometry change can also shift how the truck tracks at highway speed. Plan a few test drives on familiar roads after installation before relying on the truck for long trips.
Look at the rest of the front end before buying. Ball joints, tie rod ends and the steering linkage carry more load at a higher ride height, and many owners replace worn parts during the same install. The rear block and U-bolt setup works with the add-a-leaf pack, so check the leaves and U-bolts for cracks or seat wear at the first oil change.
- Inspect ball joints and tie rod ends before installation
- Recheck U-bolt nut torque after the first few drives
- Confirm bump stop clearance once the suspension settles
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4021B |
| UPC | 614901124491 |
| Lift | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Coil spring kit |
| Front lift | Coil springs with radius arm brackets |
| Rear lift | Block, U-bolts and add-a-leaf |
| Front shocks | ES9000 |
| Rear shocks | ES9000 |
| Pitman arm | Not included |
| Shock boots | Not included |
Vehicle fitment
It fits 1999–2004 Ford F-250 Super Duty and F-350 Super Duty models in the King Ranch, Lariat, XL and XLT trims. Other Ford model years are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Radius arm brackets and a block and U-bolt rear lift change the front and rear geometry, so the alignment and driveline angles should be checked after installation. Because the pitman arm is not included, confirm the steering correction is in place before the truck is driven.

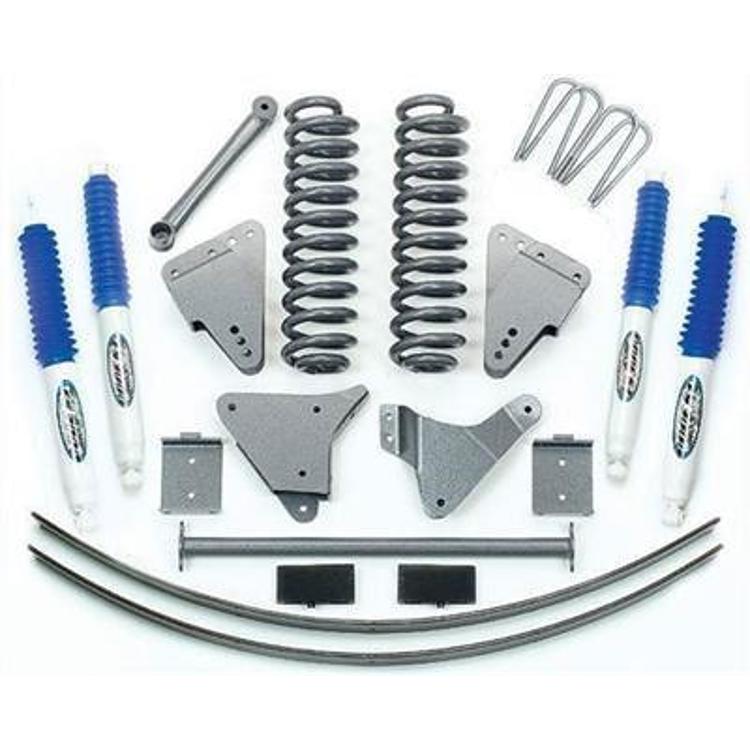

What’s included
The kit includes front coil springs, radius arm brackets, sway bar spacers, bump stop extensions, the rear block and U-bolt kit with add-a-leafs, and ES9000 front and rear shocks.
