Pro Comp 6 Inch Stage II Lift Kit with ES9000 Shocks – K2066B

Pro Comp Suspension

Shop Dodge Ram 3500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch coil spring and short arm lift with ES9000 front shocks
  • Pitman arm steering correction and front sway bar links
  • Rear block and U-bolt kit
  • Covers 2003-2005 Dodge Ram 2500 and 3500 trucks

Description

Overview

The Pro Comp 6 Inch Stage II Lift Kit with ES9000 Shocks, part number K2066B, is a 6-inch stage 1 lift for the 2003-2005 Dodge Ram 2500 and 3500. It is a direct fit with a lift height range of 5 to 6.99 inches.

The front uses coil springs with upper and lower control arms, and the suspension is a coil spring and short arm design. The steering correction is a pitman arm. Front sway bar links and bump stop extensions are included, along with brake line extension brackets. The rear uses a block and U-bolt kit, and ES9000 front shocks are included.

Key features

  • 6-inch lift
  • Coil springs with upper and lower control arms
  • Coil spring and short arm suspension type
  • Pitman arm steering correction
  • Front sway bar links
  • Bump stop extensions
  • ES9000 front shocks, included

Front spring and shock balance

Coil spring front ends carry the weight of the front axle through springs seated on the control arms. Balancing the spring height, shock valving and bump stop length keeps the ride stable when the truck is loaded. Bump stop extensions limit how far the suspension can compress, so they should be checked for cracks and secure mounting.

Front shocks are often replaced with the springs, because the old shocks were set for the original ride height. Look for oil on the shock body, noise over bumps and uneven tire wear. Inspect the shock eye and stud mounts, and check the brake line brackets for chafing.

  • Inspect bump stop extensions for cracks
  • Check shock eye and stud mounts for wear
  • Look for brake line chafing at brackets
  • Compare ride height on both sides after installation

Specifications

Brand Pro Comp Suspension
Part number K2066B
UPC 614901122848
Lift height 6 inches
Lift height range 5 to 6.99 inches
Suspension type Coil spring and short arm
Steering correction Pitman arm
Rear lift Block and U-bolt kit
Front shocks ES9000
Shocks included Yes
Fitment Direct fit

Vehicle fitment

The 2003-2005 Dodge Ram 2500 is covered in the Laramie, SLT and ST versions, as is the 2003-2005 Dodge Ram 3500.

Ram 1500 trucks and the 2006-2008 Ram 2500 and 3500 are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The pitman arm correction and the front control arm components change steering geometry, so have the steering and alignment checked after installation.

What’s included

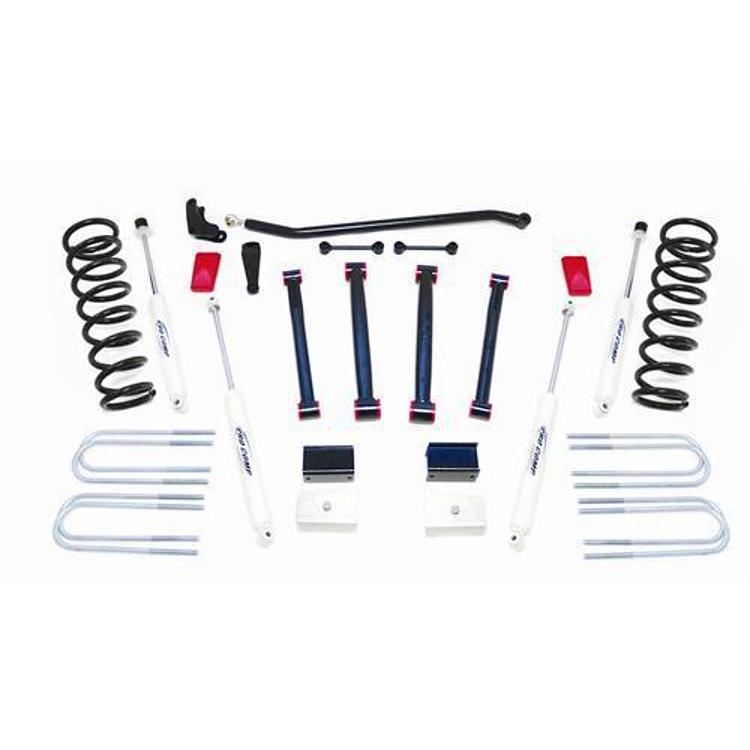

The kit includes front coil springs, upper and lower control arm components, front sway bar links, bump stop extensions, a pitman arm steering correction, brake line extension brackets, a rear block and U-bolt kit, and ES9000 front shocks.

SKU: EXPK2066B Category:

Specification

Shipping weight 208.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Dodge Ram 25002003–2005Laramie, SLT, ST
Dodge Ram 35002003–2005Laramie, SLT, ST

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K2066B fit a 2003 Dodge Ram 2500?

Yes. The 2003-2005 Ram 2500 is covered, and 2003 falls within that range. The Laramie, SLT and ST versions are included.

Is the K2066B a stage 1 or stage 2 kit?

It is a 6-inch stage 1 lift. The lift is a stage 1 setup at 6 inches, so confirm the stage matches your parts before installation.

Does the K2066B need a steering correction?

Yes. The steering correction is a pitman arm, which is part of the kit's package. Check the steering linkage and alignment after installing it.

Why are bump stop extensions included in lift kits?

Bump stop extensions limit how far the suspension compresses before the frame or axle can contact the stop. A lift changes the travel, so extensions help keep the suspension within its working range. Inspect them after rough driving and replace any that are cracked.
