Pro Comp 6 Inch Stage II Lift Kit with ES9000 Shocks – K4176B

Pro Comp Suspension

Shop Ford F-250 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch Stage II kit fitting the 2011–2016 Ford F-250 Super Duty
  • Replacement radius arms of 4130 Chromoly tubing and 3/16 inch steel plate
  • Specific rate coil springs with a drop Pitman arm and front track bar bracket
  • Lift blocks, U-bolts and add-a-leaf rear with ES9000 front shocks

Description

Overview

The Pro Comp K4176B is a 6-inch Stage II lift kit with ES9000 shocks for the 2011–2016 Ford F-250 Super Duty. Its key difference from Stage I is the set of replacement radius arms, which are made of 4130 Chromoly tubing and 3/16 inch thick steel plate.

Specific rate coil springs raise the front, and a drop Pitman arm corrects the steering. The rear is lifted with lift blocks, U-bolts and add-a-leafs. Pro Comp describes these radius arms as adding performance beyond factory ride quality, and a front track bar bracket and sway bar links are included.

Key features

  • 6-inch lift height, Stage II
  • Replacement radius arms of 4130 Chromoly tubing
  • Radius arms made from 3/16 inch thick steel plate
  • Specific rate coil springs and spacers
  • Drop Pitman arm steering correction
  • Lift blocks, U-bolts and add-a-leaf at the rear

Choosing radius arm setup

Radius arms control how the axle locates under the truck, so replacing them changes braking forces, wheel travel and how the front end tracks. Steel arms built from thick plate and chromoly tubing are often chosen for loaded hauling and rough trail use, where flex and load can stress stock brackets. Because the arms and a drop Pitman arm change front geometry, they are commonly replaced together with the coil springs.

Before you install, inspect the existing bushings, shackles and track bar mounts. Look for cracked welds, sagging springs and leaking shocks, since those wear faster once the stance is raised. Plan for an alignment and a driveline angle check afterward, and re-torque all fasteners after the first few drives on rough ground.

Specifications

Brand Pro Comp Suspension
Part number K4176B
UPC 70000538245
Lift height 6 inch (lift height range 5 to 6.99 inches)
Lift kit stage Stage 2
Suspension type Radius arm or radius arm brackets
Front lift Specific rate coil springs and spacers
Radius arm material 4130 Chromoly tubing with 3/16 inch thick steel plate
Steering correction Pitman arm
Rear lift Lift blocks, U-bolts and add-a-leaf
Front shocks ES9000
Rear shocks ES9000

Vehicle fitment

It fits the 2011–2016 Ford F-250 Super Duty in King Ranch, Lariat, Platinum, XL and XLT versions.

The list is limited to the 2011 through 2016 model years, so the earlier and later Super Duty generations are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Replacement radius arms and a drop Pitman arm change the front geometry, so have the alignment and driveline angles checked once the lift is complete.

What’s included

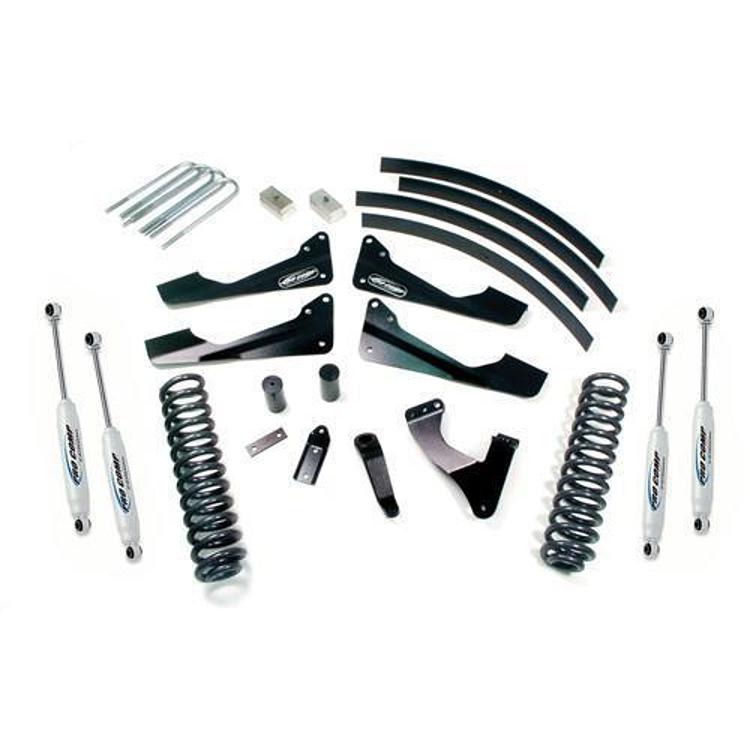

The kit includes replacement radius arms, specific rate coil springs and spacers, the drop Pitman arm, the front track bar bracket, sway bar links, lift blocks, U-bolts and add-a-leafs, and ES9000 front and rear shocks.

SKU: EXPK4176B Category:

Specification

Shipping weight 280.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2011–2016King Ranch, Lariat, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What makes the K4176B a Stage II kit?

Stage II includes replacement radius arms made of 4130 Chromoly tubing and 3/16 inch thick steel plate. The Stage I version of this lift uses radius arm drop brackets instead.

Does it fit a 2016 F-250 Super Duty?

Yes. The listed years for the F-250 Super Duty run from 2011 through 2016, so a 2016 truck is inside that range. Check the cab and trim on your own truck.

What front shocks come with it?

The kit includes ES9000 front shocks. The rear shocks are ES9000 as well, so both sets come with the lift and the shock package is complete as supplied.

How often should radius arm bushings be inspected?

Inspect them during every tire rotation or oil change. Look for cracking, torn rubber, play at the bracket and clunking over bumps. Replace worn bushings promptly, since loose arms affect steering and alignment.
