Pro Comp 4″ Lift Kit with PRO-X Shocks – K4017T

Pro Comp Suspension

Shop Ford Excursion Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4 inch stage 1 lift kit for the 2000–2005 Ford Excursion
  • Lift range of 4 to 5.5 inches
  • PRO-X front and rear shocks included
  • Rear lift with blocks and u-bolts

Description

Overview

The Pro Comp K4017T is a 4 inch stage 1 lift kit with PRO-X front and rear shocks for the 2000–2005 Ford Excursion. The kit covers a lift range of 4 to 5.5 inches and is a direct-fit kit for the Excursion.

The rear lift uses blocks, or spacers, with u-bolts. Pro Comp says its products are developed by off-road enthusiasts and use racing-influenced engineering, with an emphasis on manufacturing processes and on handling and performance.

For a 2000–2005 Excursion, the kit gives a 4 inch starting point. Stage 1 means it is the first step in the lift range, so the 5.5 inch upper end of the range depends on your setup and the other components you add.

Key features

  • 4 inch stage 1 lift
  • Lift range of 4 to 5.5 inches
  • Rear lift with spacer blocks and u-bolts

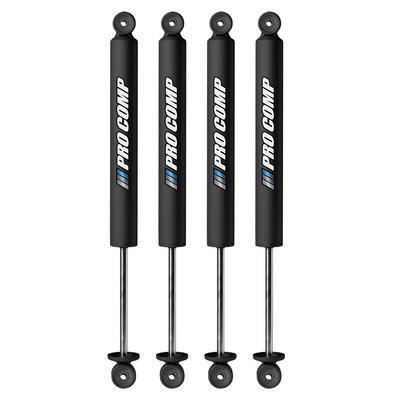

  • PRO-X shocks included, front and rear
  • Direct-fit design for the 2000–2005 Ford Excursion

Block lifts and u-bolt care

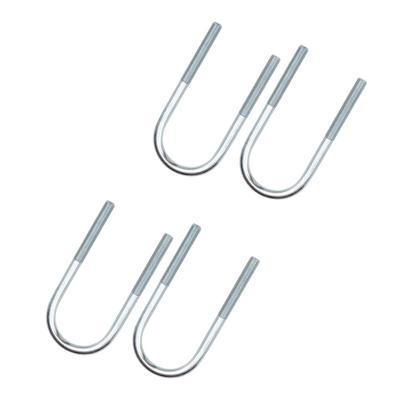

Spacer blocks lift the rear by sitting between the axle and the leaf springs, so the axle moves away from the body without changing the spring itself. The u-bolts that clamp the axle take the load, and they stretch and loosen with use. Inspect them for thread damage and rust before the first trip and after every few months of driving.

Block lifts also change the pinion angle, which can cause driveline vibration. Keeping the shocks in good condition matters too, since a rear block lift lengthens the distance the shocks must cover. A torque check on the u-bolts and block fasteners after the first trails is a simple habit that prevents most issues.

  • Inspect u-bolt threads and nuts
  • Check block faces for cracks
  • Recheck torque after the first trails
  • Watch for driveshaft vibration

Specifications

Brand Pro Comp Suspension
Part number K4017T
Suspension type Lift kit
Lift 4 inches, stage 1
Lift height range 4 to 5.5 inches
Rear lift method Block/spacer
Rear lift component Block and u-bolt
Shocks PRO-X front and rear, included
Fit Direct fit

Vehicle fitment

It is for the 2000–2005 Ford Excursion, including Eddie Bauer, Limited, XLS and XLT trims.

It is for the Excursion only; Super Duty trucks and other Ford SUVs are outside this fitment. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A lift changes suspension geometry, so have the alignment checked after installation. Raising the rear also changes driveline angles, so check the driveshaft angles and U-joints once the kit is in.

What’s included

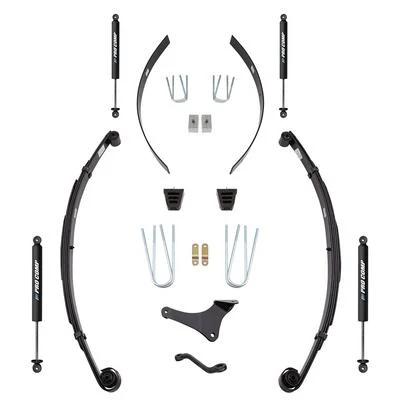

PRO-X front and rear shocks, plus the rear block and u-bolt lift components.

SKU: EXPK4017T Categories: ,

Fitment

VehicleYearsTrims
Ford Excursion2000–2005Eddie Bauer, Limited, XLS, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp K4017T fit a 2002 Ford Excursion?

Yes. It is for the 2000–2005 Ford Excursion, so a 2002 model falls within that range. Confirm your trim before ordering.

Are shocks included with the K4017T?

Yes. The kit includes PRO-X shocks for the front and rear, so you do not need separate shocks for the lift.

What lift range does the kit cover?

The kit is a 4 inch stage 1 lift with a lift height range of 4 to 5.5 inches. The rear lift uses spacer blocks with u-bolts.

Does a lift like this need an alignment?

Lift kits change suspension geometry, so an alignment is normally needed after installation. Driveline angles should also be checked on a lifted Excursion.

Should u-bolts be retightened after a block lift?

Yes. Recheck the nuts after the first drives and periodically afterward, because clamped parts settle as the kit seats. Loose u-bolts can let the axle move, which affects steering and driveline alignment.
