Pro Comp 4 Inch Lift Kit with ES3000 Shocks – K5057B

Pro Comp Suspension

Shop Toyota Pickup Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • A 4-inch Stage 2 kit for the 1986–1995 Toyota 4Runner and Pickup
  • Steering knuckle spacers and front and rear crossmembers for the front suspension
  • Front sway bar links, bump stop extensions and upper control arm mount brackets
  • Rear block and U-bolt kit with ES3000 front and rear shocks

Description

Overview

The Pro Comp K5057B is a 4-inch Stage 2 lift kit with ES3000 front and rear shocks for the 1986–1995 Toyota 4Runner and Toyota Pickup. The front uses steering knuckle spacers and front and rear crossmembers, and the rear uses a block and U-bolt lift that raises the body on the rear axle.

Front sway bar links and bump stop extensions come with the kit, and the upper control arm mount brackets are part of the Stage 2 front package. The lift height range for this 4-inch kit is 3 to 4.99 inches.

Key features

  • 4-inch lift height, Stage 2
  • Steering knuckle spacers
  • Front and rear crossmembers
  • Front sway bar links
  • Bump stop extensions
  • Upper control arm mount brackets

Comparing stage levels

Stage 2 kits add front pieces that influence how the suspension moves at full travel. Sway bar links keep the anti-roll bar connected at the new height, and bump stops control how far the axle can compress. Upper control arm brackets change the mounting angle, which is why an alignment check is part of the job.

Tire clearance and steering feel are the next things to look at. A taller front end may need a steering stop check and a look at the brake hoses. Drivers who use the truck off road often inspect these parts after each season, since trail impacts loosen fasteners faster than road use does.

  • Sway bar links keep the bar connected
  • Bump stops limit compression travel
  • Check brake hoses after the install

Specifications

Brand Pro Comp Suspension
Part number K5057B
UPC 614901207248
Lift height 4 inch (lift height range 3 to 4.99 inches)
Lift kit stage Stage 2
Suspension type Spacer
Front lift Steering knuckle spacers
Rear lift Lift blocks and U-bolts
Front shocks ES3000
Rear shocks ES3000

Vehicle fitment

It fits the 1986–1995 Toyota 4Runner in the DLX and SR5 versions, and the 1986–1995 Toyota Pickup in the Base, Base Turbo, DLX, SR5 and SR5 Turbo versions.

The listed years end in 1995, so trucks from 1996 onward are not included on this entry. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

With knuckle spacers and upper control arm brackets in place, the front geometry changes, so the alignment should be set and the driveline angles checked after installation.

What’s included

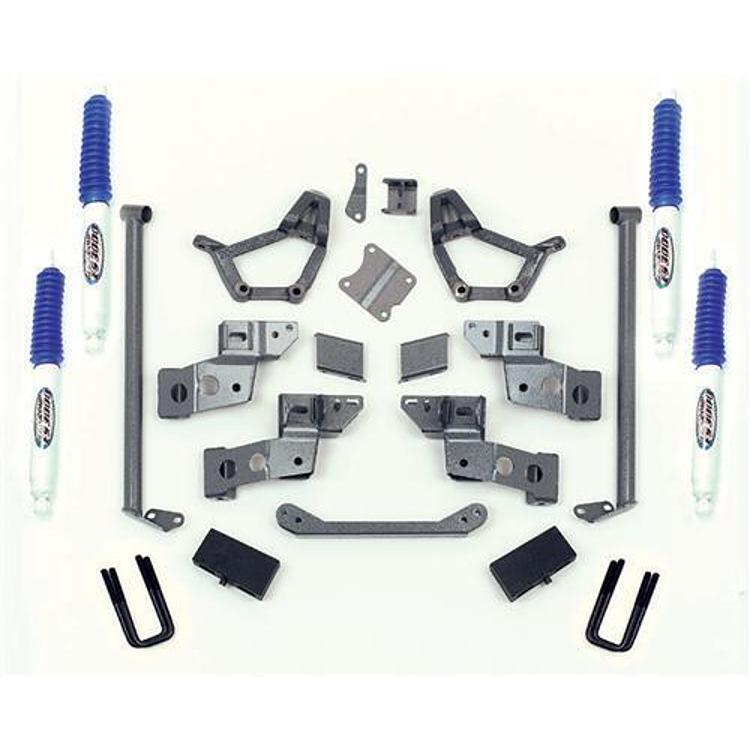

The kit includes steering knuckle spacers, front and rear crossmembers, front sway bar links, bump stop extensions, upper control arm mount brackets, the rear block and U-bolt kit, and ES3000 front and rear shocks.

SKU: EXPK5057B Category:

Specification

Shipping weight 117.60 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Toyota 4Runner1986–1995DLX, SR5
Toyota Pickup1986–1995Base, Base Turbo, DLX, SR5, SR5 Turbo

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K5057B fit a 1995 4Runner?

Yes. The 1986 through 1995 Toyota 4Runner is listed in the DLX and SR5 versions, so a 1995 model is inside the range. Check your trim before ordering.

How is this kit different from the Stage 1 K5056B?

The product name identifies this kit as Stage 2, while the K5056B is Stage 1. Compare the included components and the part number before choosing between them.

Are the shocks included with the K5057B?

Yes. ES3000 front and rear shocks are included with the kit, as named in the product name and the specifications table.

Do steering knuckle spacers affect steering feel?

They can. Spacers move the knuckle position, which changes steering geometry and sometimes the bump steer feel. Check the steering stops and tie rod ends after installation, and have the alignment set so the truck tracks straight.
