Overview
The Pro Comp K1180BX is a 2.5-inch Explorer Low Center of Gravity lift kit with VST 2.5-inch coilovers and shocks. It is built for trucks running 35-inch tires and fits the 2019 to 2026 Chevrolet Silverado 1500 and GMC Sierra 1500 models.
The Explorer design is bolt-in and needs no frame modifications. It keeps factory components in place while adding ground clearance and suspension travel, suited to a weekend warrior truck that still rides comfortably on the highway. Factory ride quality is kept while clearance increases.
The VST shocks are vehicle-specifically tuned to improve rebound, travel and geometry for bigger wheels and tires. The kit is set up for 17-inch wheels paired with 35-inch tires.
Key features
- 2.5-inch suspension lift

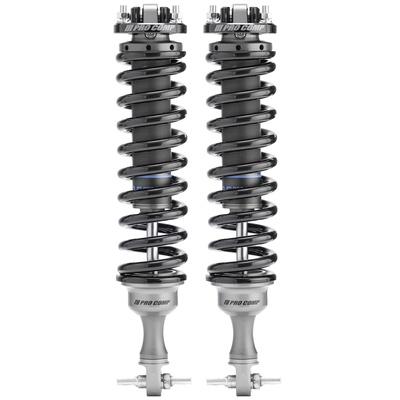

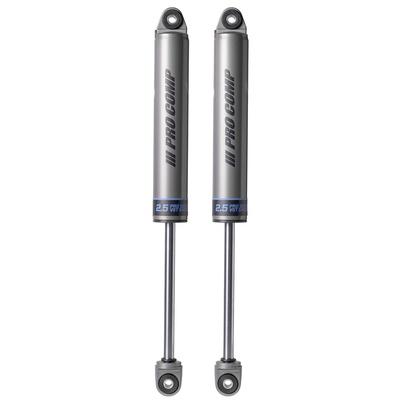

- VST 2.5-inch coilovers and shocks with the PRO-VST shock series
- Bolt-in installation without frame modifications.
- Designed for 35-inch tires on 17-inch wheels
- Lift height range of 0 to 3.5 inches
- Low center of gravity Explorer design
Choosing the right setup
Lifting a truck changes how the suspension, steering and driveline work together, so the lift is only one part of the job. Coilovers set ride height and spring load, while shock valving decides how the truck settles over washboard roads and ledges. When the kit is matched to the tire size it was built for, the suspension has room to move through full travel without binding.
Bigger tires add weight and change the gearing, so related parts are often checked at the same time. Brake lines, sway bar links, driveshaft angles and steering joints deserve a look once ride height rises. Keep the tire load rating in mind when choosing replacements, and re-check every fastener after the first few trail runs. Tire pressure should be set for the load and terrain you run most.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K1180BX |
| Suspension type | Lift kit |
| Lift | 2.5-inch suspension lift |
| Lift height range | 0 to 3.5 inches |
| Shocks included | Yes |
| Shock series | PRO-VST |
| Tire size | 35 inch |
| Wheel size | 17 inch |
| Frame modifications | None |
| Fitment type | Direct fit |
Vehicle fitment

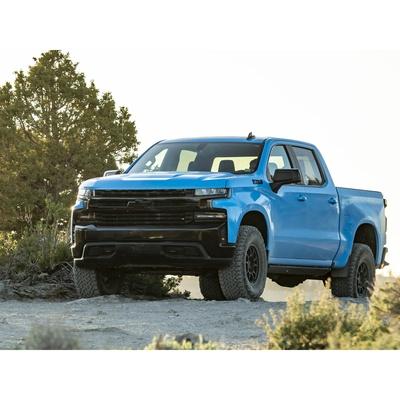

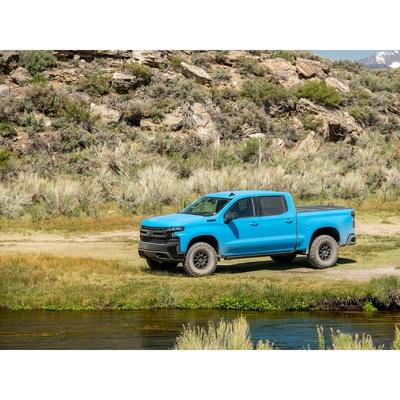

The kit fits the 2019 to 2026 Chevrolet Silverado 1500, the 2019 Chevrolet Silverado 1500 LD, the 2022 Chevrolet Silverado 1500 LTD, the 2019 to 2026 GMC Sierra 1500, and the 2019 and 2022 GMC Sierra 1500 Limited.
Other Silverado and Sierra years and HD models are not covered by the fitment above. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The kit raises the truck and is set up for 35-inch tires on 17-inch wheels, so have the alignment and driveline angles checked after installation. Coilovers and shocks change ride height, which is why this check matters.
What’s included
VST 2.5-inch coilovers and shocks are included. Check the package contents against your installation before starting.
