Pro Comp 6 Inch Stage II Lift Kit with ES3000 Shocks – K4119B

Pro Comp Suspension

Shop Ford F-150 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • A 6-inch Stage II kit for the 1981–1989 Ford F-150
  • Front coil springs with radius arms and I-beam brackets
  • Pitman arm steering correction and extended-length stainless steel brake lines
  • Rear block and U-bolt kit with ES3000 front and rear shocks

Description

Overview

The Pro Comp K4119B is a 6-inch Stage II suspension lift kit with ES3000 shocks for the 1981–1989 Ford F-150. It raises the truck with front coil springs and rear block and U-bolt hardware, and it adds front and rear shocks in the same package.

Stage II means the front end is rebuilt around radius arms mounted to I-beam brackets, which locate the axle as the truck is lifted. A Pitman arm corrects the steering geometry, and extended-length stainless steel brake lines are included so the brakes still reach the raised axle. The kit is made for owners of early F-150 trucks who want a 6-inch lift with a complete front and rear setup.

Key features

  • 6-inch lift height with front coil springs
  • Radius arms and I-beam brackets to locate the front axle
  • Pitman arm steering correction for the raised height
  • Extended-length stainless steel brake lines
  • Rear block and U-bolt kit
  • ES3000 front and rear shocks

Before you buy

Stage II radius arm kits change how the front axle is located, so the work reaches well beyond the springs. The radius arms and I-beam brackets set the axle position, which means steering, brake and driveline geometry all need checking together. Many owners set alignment and driveline angles as one job once the kit is in.

Shock length and hardware torque are worth attention too. Drive the truck through its full range before any longer trip, and re-tighten the rear block and U-bolt hardware after the first few drives. Brake hose movement at full droop is also worth a look once the truck has settled.

  • Re-torque U-bolt nuts after the first few drives
  • Recheck the brake lines at full suspension travel
  • Inspect radius arm bushings for play at regular service

Specifications

Brand Pro Comp Suspension
Part number K4119B
UPC 614901125429
Lift kit stage Stage II
Lift height 6 inch (lift height range 5 to 6.99 inches)
Front lift Coil springs
Front control Radius arms with I-beam brackets
Steering correction Pitman arm
Brake lines Extended length, stainless steel
Rear lift Block and U-bolt kit
Shocks ES3000 front and rear
Fit type Direct fit

Vehicle fitment

It fits the 1981–1989 Ford F-150 in the Base, Custom, Ranger, XL, XLS, XLT and Lariat versions of those model years.

Trucks from 1980 and earlier, and the 1990 and newer F-150 generations, are outside the listed years. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The radius arms and I-beam brackets change the front axle location, so have the alignment and driveline angles checked after the install. Lifting this far also means the brake lines have been lengthened to match the new geometry, which should be inspected for clearance at full suspension travel.

What’s included

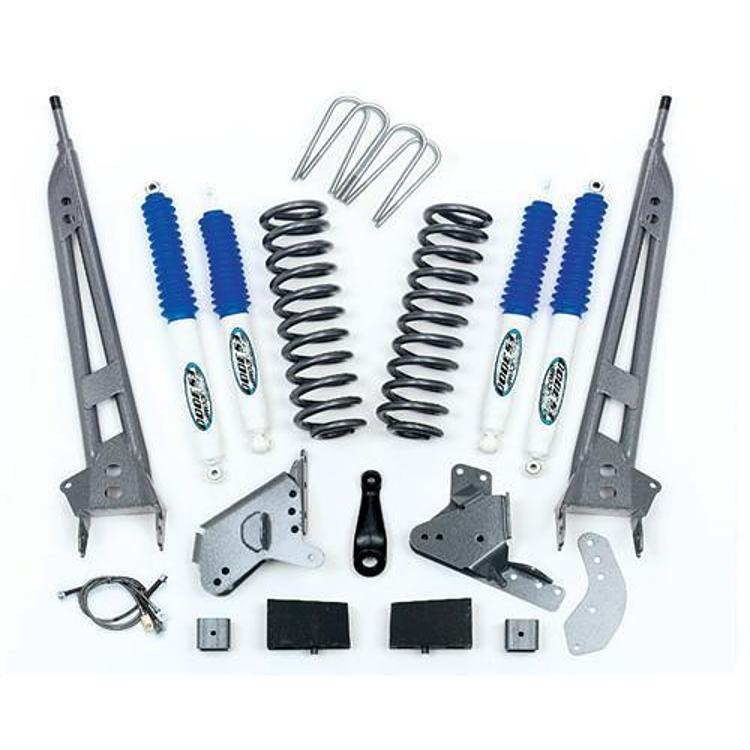

The kit includes the front coil springs, radius arms and I-beam brackets, Pitman arm steering correction, extended-length stainless steel brake lines, the rear block and U-bolt kit, and ES3000 front and rear shocks.

SKU: EXPK4119B Category:

Specification

Shipping weight 175.19 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-1501981–1989Base, Custom, Ranger, Ranger Lariat, Ranger XLT, XL, XLS, XLT, XLT Lariat

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Pro Comp K4119B fit a 1990 Ford F-150?

No. It fits the 1981–1989 Ford F-150 only, so a 1990 or newer truck is outside its fitment. Confirm fit for your vehicle's year, model and trim before ordering.

Are shocks included with the K4119B?

Yes. The kit includes ES3000 shocks for the front and rear, along with the front coil springs and rear block and U-bolt kit.

What lift height does this kit provide?

The kit is a 6-inch lift, and the lift height range is 5 to 6.99 inches. The front uses coil springs and the rear uses a block and U-bolt kit.

How often should the radius arm bushings be checked?

Inspect the radius arm bushings and I-beam bracket bolts at every oil change or whenever the tires are rotated. Look for cracking, looseness or movement at the brackets. Early wear usually shows up as clunks over bumps and a changing alignment.
