Pro Comp 2.5″ Stage I Lift Kit with PRO-X Shocks – K1124T

Pro Comp Suspension

Shop Chevrolet K20 Suburban Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1973 to 1976 Chevrolet K20 and K20 Suburban, and 1973 to 1976 GMC K25 Suburban
  • 2.5-inch stage 1 lift with PRO-X shocks
  • PRO-X front and rear shocks included
  • Lift height range of 0 to 3.5 inches

Description

Overview

The Pro Comp 2.5-inch Stage I Lift Kit with PRO-X Shocks, part number EXPK1124T (kit K1124T), is a stage 1 suspension lift for 1973 to 1976 Chevrolet K20 and GMC K25 trucks. It fits the Chevrolet K20 Suburban from 1973 to 1976, the GMC K25 Suburban from 1975 to 1976, and the Chevrolet K20 pickup from 1973 to 1974.

This is a 2.5-inch stage 1 lift with a lift height range of 0 to 3.5 inches. A block or spacer setup with a block and U-bolt component raises the rear. PRO-X shocks are fitted at the front and rear and are included with the kit.

Key features

  • 2.5-inch stage 1 suspension lift
  • PRO-X shocks at the front and rear, included
  • Block or spacer rear lift
  • Lift height range of 0 to 3.5 inches
  • Tire size of 33 inches

Checking the rear after lifting

Leaf spring trucks from this era rely on U-bolts and spring pads to keep the rear axle in place. A block or spacer lift changes how the spring sits, so the U-bolts can loosen as the new height settles. Take a few minutes after the first drives to check the nuts and the spring pads.

The rear lift also affects the driveline angle and the brake hose length. Look for any strain at the hose ends or a driveshaft that vibrates at speed. Recheck front and rear clearances after the first trail run, since a truck that has been driven on rough ground can settle a little.

  • Re-torque U-bolt nuts after the first few drives
  • Look for cracked or flattened spring pads
  • Inspect brake hoses for stretch or rubbing

Specifications

Brand Pro Comp Suspension
Part number EXPK1124T
Kit code K1124T
Suspension type Lift kit, stage 1
Lift height 2.5 inches stage 1; range 0 to 3.5 inches
Rear lift method Block or spacer
Rear lift component Block and U-bolt
Tire size 33 inches
Front shocks PRO-X
Rear shocks PRO-X
Fit type Direct fit

Vehicle fitment

The kit fits 1973 to 1974 Chevrolet K20 pickups, 1973 to 1976 Chevrolet K20 Suburban, 1975 to 1976 GMC K25 Suburban and 1973 to 1974 GMC K25/K2500 Suburban, in the Base, Custom Deluxe, Scottsdale and Silverado versions.

The list does not include the 1977 and later K20 trucks or the 1979 and later K2500 models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The rear block or spacer changes the rear height, so measure front and rear after installation and have the alignment checked.

What’s included

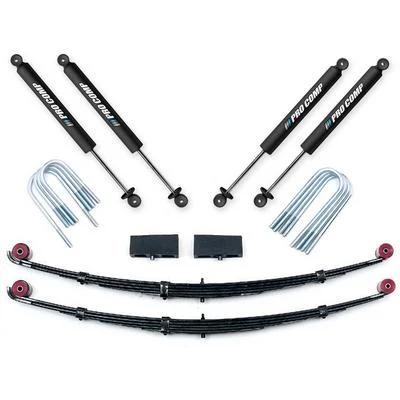

The 2.5-inch stage 1 lift kit with PRO-X front and rear shocks.

SKU: EXPK1124T Categories: ,

Fitment

VehicleYearsTrims
Chevrolet K201973–1974Pickup Base
Chevrolet K20 Suburban1973–1976Base, Custom Deluxe, Scottsdale, Silverado
GMC K25 Suburban1975–1976Base, High Sierra, Sierra Classic, Sierra Grande
GMC K25/K2500 Suburban1973–1974Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp K1124T fit a 1974 Chevrolet K20 pickup?

Yes. The kit fits 1973 to 1974 Chevrolet K20 pickups, and 1974 falls within that range. Confirm the trim before ordering.

Are PRO-X shocks included?

Yes. PRO-X shocks are listed at both the front and the rear. The specifications list PRO-X at both ends of the truck.

What is the lift height range?

The kit is a 2.5-inch stage 1 lift. Its lift height range is 0 to 3.5 inches. The rear is raised by a block or spacer setup that uses a block and U-bolt component.

Do older leaf-spring trucks need other work with a lift?

Often yes. Brake lines, the driveline angle and the steering linkage can all change with a lift, so check them after installation. Older bushings and shackles are also worth inspecting while the truck is apart.
