Pro Comp 6 Inch Stage II Lift Kit with ES9000 Shocks – K4153B

Pro Comp Suspension

Shop Ford F-250 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • A 6-inch Stage II kit for the 2008–2010 Ford F-250 and F-350 Super Duty
  • Radius arms, Pitman arm steering correction and front sway bar links
  • Front coil springs with bump stop extensions and brake line extension brackets
  • Block, U-bolt and add-a-leaf rear lift with ES9000 front and rear shocks

Description

Overview

The Pro Comp K4153B is a 6-inch Stage II lift kit with ES9000 shocks for the 2008–2010 Ford F-250 and F-350 Super Duty. It lifts the front with coil springs and radius arms, and the rear with a block, U-bolt and add-a-leaf arrangement.

The Pitman arm corrects the steering geometry at the new height, while bump stop extensions and front sway bar links keep the suspension and anti-roll bar working as designed. Brake line extension brackets are included so the brake lines reach the raised front end. The front shocks and rear shocks are both ES9000 units.

Key features

  • 6-inch lift height from a Stage II kit
  • Front coil springs
  • Radius arms for the front suspension
  • Pitman arm steering correction
  • Bump stop extensions and front sway bar links
  • Block, U-bolt and add-a-leaf rear lift

Before the install

Radius arms and a Pitman arm change how the front end steers and tracks, so the alignment is the step that finishes the job. Once the new parts are torqued, have the caster and toe set with the truck at its final height. Fresh bushings and a regular grease schedule help the new links move freely from the start.

Front coil springs and bump stop extensions change how the suspension travels, so drive gently on rough roads for the first few trail runs and listen for clunks. Small noises usually point to a loose fastener or a worn joint that is easy to correct early.

  • Re-check fastener torque after the first few drives
  • Look at sway bar link ends for play during routine service
  • Inspect the Pitman arm joint at each oil change

Specifications

Brand Pro Comp Suspension
Part number K4153B
UPC 614901206784
Lift height 6 inch (lift height range 5 to 6.99 inches)
Lift kit stage Stage 2
Suspension type Radius arm or radius arm brackets
Front lift Coil springs
Steering correction Pitman arm
Rear lift Lift blocks, U-bolts and add-a-leaf
Front shocks ES9000
Rear shocks ES9000

Vehicle fitment

It fits the 2008–2010 Ford F-250 Super Duty and F-350 Super Duty in the Cabela’s, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL and XLT versions.

Only the 2008 through 2010 Super Duty years are listed, so the 2011 and newer trucks and the earlier Super Duty years are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Radius arms and a Pitman arm change the front suspension geometry, so schedule an alignment and a check of the driveline angles after the lift is installed.

What’s included

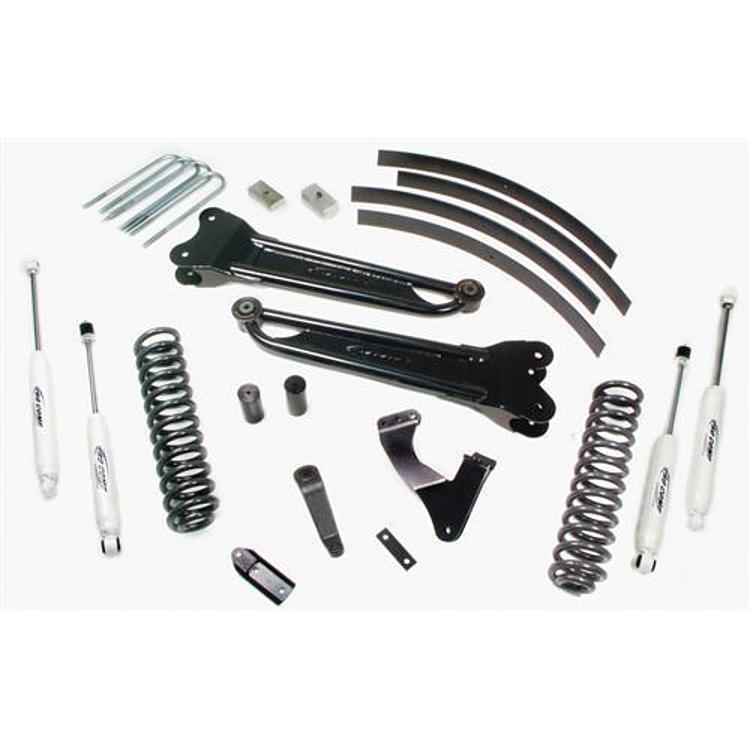

The kit includes front coil springs, radius arms, the Pitman arm steering correction, bump stop extensions, front sway bar links, brake line extension brackets, the block, U-bolt and add-a-leaf rear lift, and ES9000 front and rear shocks.

SKU: EXPK4153B Category:

Specification

Shipping weight 280.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2008–2010Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT
Ford F-350 Super Duty2008–2010Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K4153B fit a 2011 F-250 Super Duty?

No. It fits the 2008 through 2010 Ford F-250 and F-350 Super Duty only. Trucks from 2011 and later fall outside that range, so check your model year against those years before ordering.

Are the shocks included with the K4153B?

Yes. The feature list includes ES9000 shocks at the front and rear, which are part of the kit alongside the coil springs and radius arms.

What steering correction does this kit use?

The kit uses a Pitman arm to correct steering geometry at the raised height. It works alongside the radius arms to keep the front end tracking correctly.

How often should the front end be inspected after a lift?

Inspect the front end at each oil change or at least once a year. Look at radius arm bushings, sway bar links and the Pitman arm joint for cracks or play, and recheck the alignment after any suspension work.
