Pro Comp 6 Inch Stage II Lift Kit with ES3000 Shocks – K4107B

Pro Comp Suspension

Shop Ford F-150 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch stage 2 coil spring lift with radius arms and I beam brackets
  • Extended SS brake lines and pitman arm steering correction
  • Rear block and U-bolt kit with ES3000 front and rear shocks
  • Fits 1990–1996 Ford F-150 trucks

Description

Overview

The Pro Comp K4107B is a 6-inch stage 2 coil spring lift with ES3000 front and rear shocks. The kit suits 1990–1996 Ford F-150 trucks, and the lift height range is 5 to 6.99 inches.

The front uses coil springs with radius arms and I beam brackets. The rear is raised with a block and U-bolt kit, and a pitman arm corrects the steering. Extended length SS brake lines are included, and the shock boots are not included.

Key features

  • 6-inch lift, stage 2
  • Front coil springs with radius arms
  • I beam brackets
  • Pitman arm steering correction
  • Extended length SS brake lines
  • Rear block and U-bolt lift

Radius arms and I beam brackets

Radius arms paired with I beam brackets form the front link system, so the mounts carry braking forces and the springs control vertical movement. Over time, bushings and bracket welds may need attention, particularly on trucks that see off-road use. Inspect them when the tires are removed and before any long trip.

A block and U-bolt rear lift changes the pinion angle, so the driveshaft should be measured and any vibration investigated quickly. Spacer blocks and U-bolts should be retightened after the first drives. Stage 2 builds also make steering stability more dependent on the pitman arm and drag link condition, so keep those components tight.

Shock boots are not included, so check the ES3000 shocks for leaks and protect the shaft with boots if the truck sees muddy trails.

Specifications

Brand Pro Comp Suspension
Part number K4107B
UPC 614901125344
Lift 6 inches, stage 2
Lift height range 5 to 6.99 inches
Suspension type Radius arm
Front lift Coil springs with radius arms and I beam brackets
Rear lift Block and U-bolt kit
Steering correction Pitman arm
Front shocks ES3000
Rear shocks ES3000
Brake lines Extended length SS
Shock boots Not included

Vehicle fitment

It fits 1990–1996 Ford F-150 trucks; Bronco and other years fall outside its fit.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Radius arms and I beam brackets change the front geometry, so set the alignment after installation. The rear block and U-bolt lift changes the driveline angles, so check those once the truck is on the ground.

What’s included

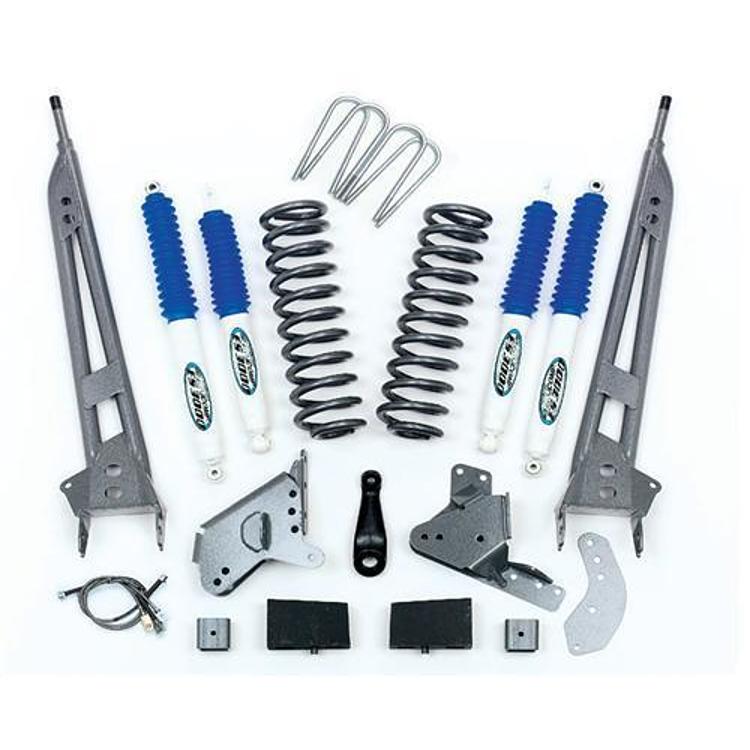

The kit includes front coil springs, radius arms, I beam brackets, a pitman arm, extended length SS brake lines, a rear block and U-bolt kit and ES3000 front and rear shocks. Shock boots are not included.

SKU: EXPK4107B Category:

Specification

Shipping weight 177.36 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-1501990–1996Custom, Eddie Bauer, Special, XL, XLT, XLT Lariat

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4107B fit a 1993 Ford F-150?

Yes. Ford F-150 trucks from 1990–1996 are covered, and 1993 falls within that range. Verify the trim against the kit's intended fit before ordering, and check that the front radius arm and I beam bracket setup matches your truck.

Is the K4107B stage 1 or stage 2?

It is a 6-inch stage 2 lift with radius arms and I beam brackets at the front. The rear uses a block and U-bolt kit, and a pitman arm corrects the steering.

Are the shock boots included?

No. Shock boots are not included with this 6-inch stage 2 kit, so ES3000 boots must be sourced separately if they are needed.

Is an alignment needed after changing the front radius arms?

Yes. Radius arm changes move caster and toe, so an alignment should be set after any arm or bushing replacement. Recheck it after the first few drives and whenever tire wear suggests the front geometry has shifted.
