Overview
The Pro Comp K4175BP is a 6-inch Stage I lift kit with Pro Runner shocks for the 2011–2016 Ford F-250 Super Duty. It combines specific rate coil springs with laser cut radius arm drop brackets, and the rear is lifted with blocks, U-bolts and add-a-leafs.
This Pro Runner version uses the same Stage I hardware as the ES9000 kit, with Pro Runner shocks at the front. The drop Pitman arm sets the steering correction, and the kit includes a front track bar bracket and sway bar links.
Key features
- 6-inch lift height from a Stage I kit
- Specific rate coil springs and spacers
- Radius arm drop brackets
- Drop Pitman arm steering correction
- Front track bar bracket and sway bar links
- Blocks, U-bolts and add-a-leafs at the rear
Choosing a shock package
Shocks control how the truck settles after a lift lengthens the suspension. Because the springs and brackets change the ride height, the shock length and damping need to suit the new geometry. A shock that was fine on the stock height can feel loose or harsh once the truck sits higher.
Shocks are often replaced in pairs on the same axle so both sides react the same way. Look at how the truck will be used, whether daily driving, towing or trail work, and choose damping to match. Check the mounts and bushings when the shocks come off, since they wear alongside the shocks.
- Match shock length to the new ride height
- Replace shocks in pairs on the same axle
- Inspect mounts and bushings during install
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4175BP |
| UPC | 70000637859 |
| Lift height | 6 inch (lift height range 5 to 6.99 inches) |
| Lift kit stage | Stage 1 |
| Suspension type | Radius arm or radius arm brackets |
| Front lift | Specific rate coil springs and spacers |
| Steering correction | Pitman arm |
| Rear lift | Lift blocks, U-bolts and add-a-leaf |
| Front shocks | Pro Runner |
Vehicle fitment
It fits the 2011–2016 Ford F-250 Super Duty in King Ranch, Lariat, Platinum, XL and XLT trims.
Only the 2011 through 2016 model years are included. The 2008 through 2010 and 2017 and newer Super Duty trucks are not on the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Drop brackets and the drop Pitman arm change the steering and suspension geometry, so schedule the alignment and check the driveline angles after installation.

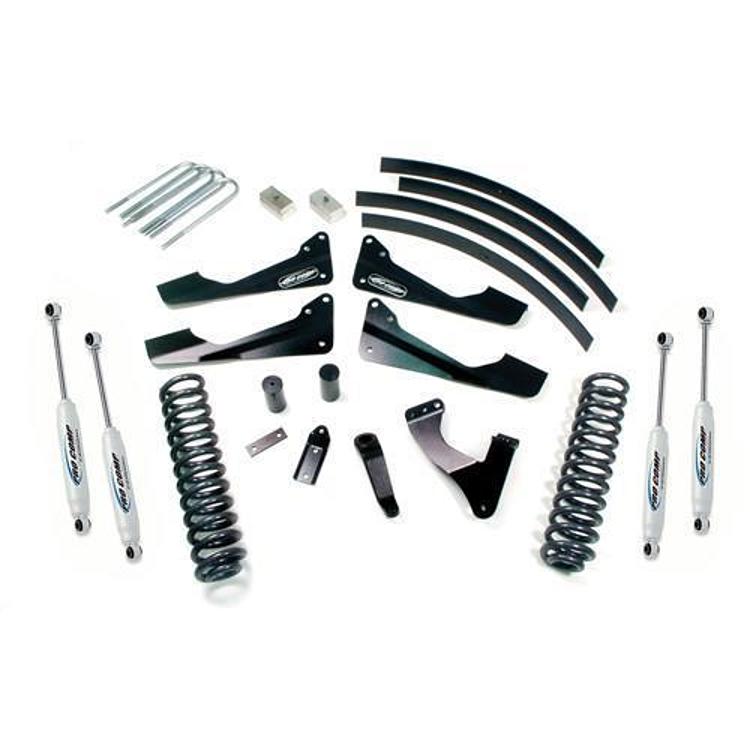

What’s included
The kit includes specific rate coil springs and spacers, radius arm drop brackets, the front track bar bracket, the drop Pitman arm, sway bar links, lift blocks, U-bolts and add-a-leafs, and Pro Runner front shocks.
