Overview
The Pro Comp K3102B is a 3.5-inch stage 1 coil spring lift with front and rear ES9000 shocks. It uses coil springs at both ends, and its lift height range is 3 to 4.99 inches.
Confirm fit for your vehicle’s year, model and trim before ordering. Measure ride height at all four corners once the kit is installed.
Key features
- 3.5-inch stage 1 lift
- Front and rear coil springs
- Front and rear ES9000 shocks
- Shocks included with the kit
Measuring before you lift
A coil spring lift raises the body and the rear together, so the back of the truck can sit higher than expected. Measuring the ride height at all four corners before the vehicle is driven shows whether the springs seated evenly and whether one side needs attention.
Higher ride height changes driveline angles, bump stop contact and the length the shocks must travel. Confirm tire clearance at full steering lock and under compression, and plan the wheel and tire choice around the lift height. Recheck the setup after the first few drives, since new springs can settle slightly.
- Measure ride height at all four corners
- Check driveline angles after installation
- Confirm tire clearance at full lock
- Inspect bump stops for proper contact
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K3102B |
| UPC | 70000705632 |
| Lift | 3.5 inches, stage 1 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Coil spring kit |
| Front lift | Coil springs |
| Rear lift | Coil springs |
| Front shocks | ES9000 |
| Rear shocks | ES9000 |
| Shocks included | Yes |
Vehicle fitment
Confirm the year, model and trim against your vehicle before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 3.5-inch coil spring lift changes the ride height, so an alignment and a driveline check should be made once the kit is installed. The rear coil springs raise the back of the vehicle as well as the front, so measure the ride height at all four corners before the truck is driven.
What’s included

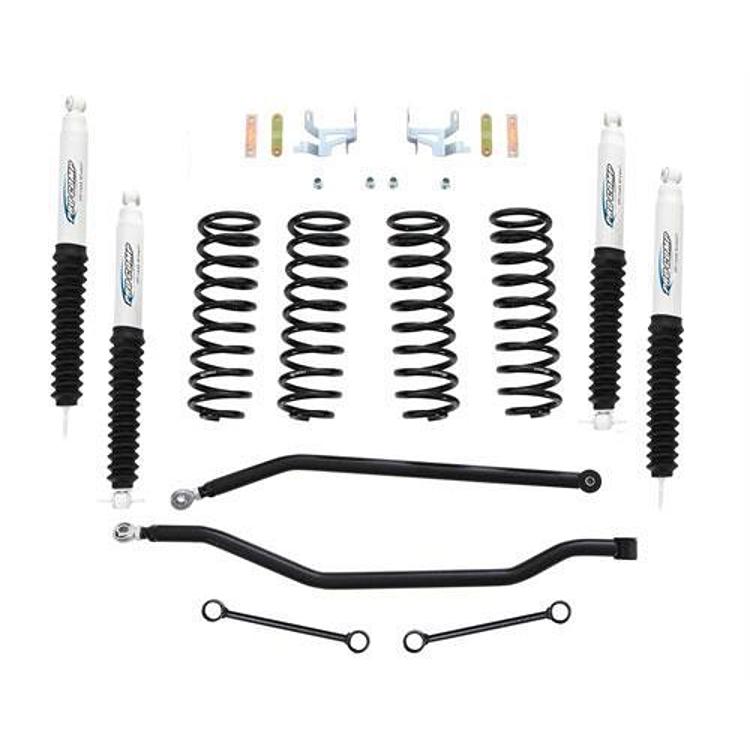

The kit includes front and rear coil springs and front and rear ES9000 shocks.
