Overview
The Pro Comp K5080B is a 6-inch Stage 1 knuckle-type lift kit with ES9000 shocks for the 2012–2015 Toyota Tacoma. Strut spacers and steering knuckles raise and locate the front, and the rear uses lift blocks with add-a-leafs and U-bolts.
No steering correction is needed for this kit. Crossmembers, differential drop brackets and sway bar drop brackets are included. The front shocks are re-used OEM units, and ES9000 shocks are named in the kit title, so confirm the shock package before ordering.
Key features
- 6-inch lift height from a Stage 1 kit
- Strut spacers
- Steering knuckles
- Crossmembers
- Differential drop brackets and sway bar drop brackets
- Lift blocks with add-a-leafs and U-bolts at the rear
Tacoma front geometry notes
Strut spacers and steering knuckles change the front geometry of a Tacoma, which affects caster, camber and toe. Because the knuckles locate the hub differently, brake lines, ABS wiring and CV angles should be checked for clearance. A lift of this type also changes the relationship between the front and rear of the truck, so the rear pinion angle is worth checking too.
Crossmembers and drop brackets are usually installed as a group with the front components, and they carry the load of the differential and sway bar. Check the bolts after the first few trips, listen for clicks or looseness in the front end, and inspect the strut mounts and bushings during regular service. Uneven tire wear across the front tires often signals that the alignment needs another look.
- Check brake line and ABS wire clearance after installation
- Inspect CV boots for stretching at full articulation
- Recheck crossmember and drop bracket bolts early
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K5080B |
| UPC | 614901034332 |
| Lift height | 6 inch (lift height range 5 to 6.99 inches) |
| Lift kit stage | Stage 1 |
| Suspension type | Knuckle |
| Front lift | Strut spacers and steering knuckles |
| Steering correction | None required |
| Rear lift | Lift blocks with add-a-leaf and U-bolts |
| Front shocks | Re-use OEM (the product name cites ES9000 shocks) |
Vehicle fitment
The kit fits 2012–2015 Toyota Tacoma trucks in the Base, Pre Runner, TRD Pro and X-Runner versions.
The list covers the 2012 through 2015 model years only, so the 2011 Tacoma and the 2016 and newer trucks are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Strut spacers and steering knuckles change the front geometry, so have the alignment checked and the driveline angles measured after the lift is installed.
What’s included

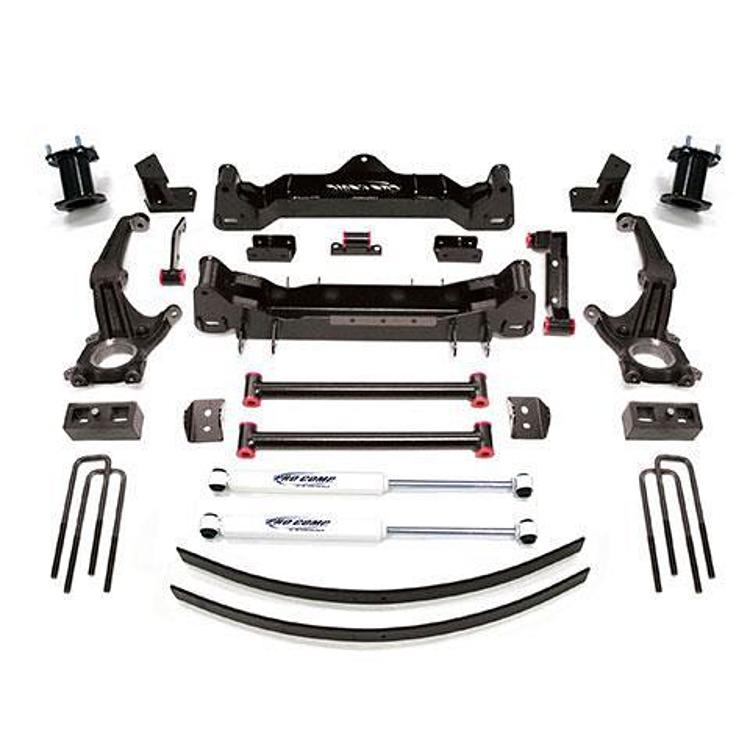

The kit includes strut spacers, steering knuckles, crossmembers, differential drop brackets, sway bar drop brackets, the rear lift blocks with add-a-leafs and U-bolts, and ES9000 shocks named in the product name.
