Pro Comp 4 Inch Stage I Lift Kit with ES3000 Shocks – K4053B

Pro Comp Suspension

Shop Ford Bronco Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch stage 1 coil spring lift with radius arm brackets and add-a-leaf rear
  • Extended length brake lines and pitman arm steering correction
  • Bump stop extensions and front coil springs
  • ES3000 front and rear shocks

Description

Overview

The Pro Comp K4053B is a 4-inch stage 1 coil spring lift with ES3000 front and rear shocks. The front uses coil springs with radius arm brackets, and the rear is lifted with add-a-leafs. The lift height range is 3 to 4.99 inches.

Bump stop extensions and a pitman arm for steering correction are included, along with extended length brake lines. Shock boots are not included.

Key features

  • 4-inch lift, stage 1
  • Front coil springs with radius arm brackets
  • Rear add-a-leaf lift
  • Bump stop extensions
  • Pitman arm steering correction
  • Extended length brake lines

Radius arm and spring setup

Radius arm brackets control how the axle moves fore and aft as the suspension cycles. When a coil spring lift is paired with radius arms, the axle pivot point moves, which changes pinion angle and the ride feel on rough roads. Inspect the brackets and the bushings where the arms attach to the frame, and tighten all fasteners with a calibrated torque wrench after the first drives.

Add-a-leaf rear lifts add leaves to the existing pack, which raises the rear without changing the spring rate much. Over time the added leaves can settle, so check rear height and the clamp bolts after the first trips. Worn shocks or sagging springs can also cause a stiff or uneven ride, and rear shocks are often replaced at the same time.

  • Inspect radius arm bushings for cracks
  • Check add-a-leaf clamp bolts after the first drives
  • Replace worn shocks when the suspension is raised

Specifications

Brand Pro Comp Suspension
Part number K4053B
UPC 614901125023
Lift 4 inches, stage 1
Lift height range 3 to 4.99 inches
Suspension type Radius arm
Front lift Coil springs with radius arm brackets
Rear lift Add-a-leafs
Steering correction Pitman arm
Front shocks ES3000
Rear shocks ES3000
Shock boots Not included

Vehicle fitment

Confirm fit for your vehicle’s year, model and trim before ordering. Check the axle and spring layout on your truck before buying.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Add-a-leafs raise the rear by adding leaves to the springs, so the rear driveline angles should be checked after installation. The extended brake lines need to be routed without strain at the new height.

What’s included

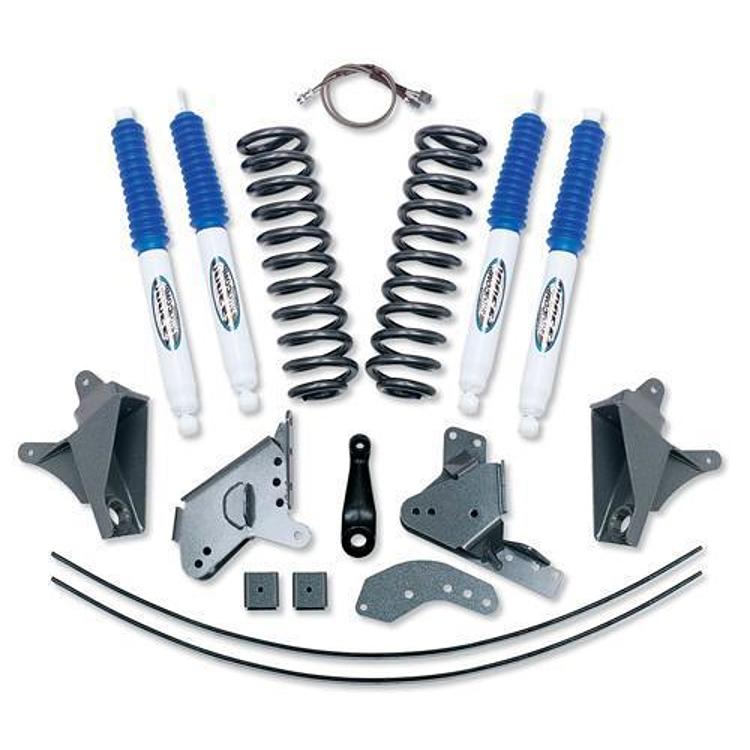

The kit includes front coil springs, radius arm brackets, bump stop extensions, a pitman arm, extended length brake lines, the rear add-a-leaf lift and ES3000 front and rear shocks.

SKU: EXPK4053B Category:

Specification

Shipping weight 152.91 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford Bronco1990–1996Custom, Eddie Bauer, XL, XLT, XLT Lariat, XLT Nite, XLT Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which vehicles does the K4053B fit?

Confirm fit for your vehicle's year, model and trim before ordering. Check the axle and spring layout on your truck before buying, since the front coil springs and rear add-a-leafs must suit your setup.

Are shock boots included with the K4053B?

No. The shock boots are not included, so any boots for the ES3000 shocks on this 4-inch radius arm kit must be sourced separately.

Does the K4053B include brake lines?

Yes. Extended length brake lines are part of the kit, which accommodates the raised front end once it is installed.

Do radius arm lifts need a new alignment?

Usually yes. Changing the axle location and caster can shift the alignment, so set it after installation and recheck it after the first drives. Confirm fit for your vehicle's year, model and trim before ordering.
