Overview
The Pro Comp K3089B is a 3-inch stage 1 coil spring lift with ES9000 shocks. It fits 2007–2018 Jeep Wrangler (JK) Unlimited four-door models in the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims.
The kit uses coil springs at the front and rear. Front sway bar links, bump stop extensions and brake line extension brackets are included, and ES9000 shocks are supplied at both ends.
Key features
- 3-inch stage 1 lift

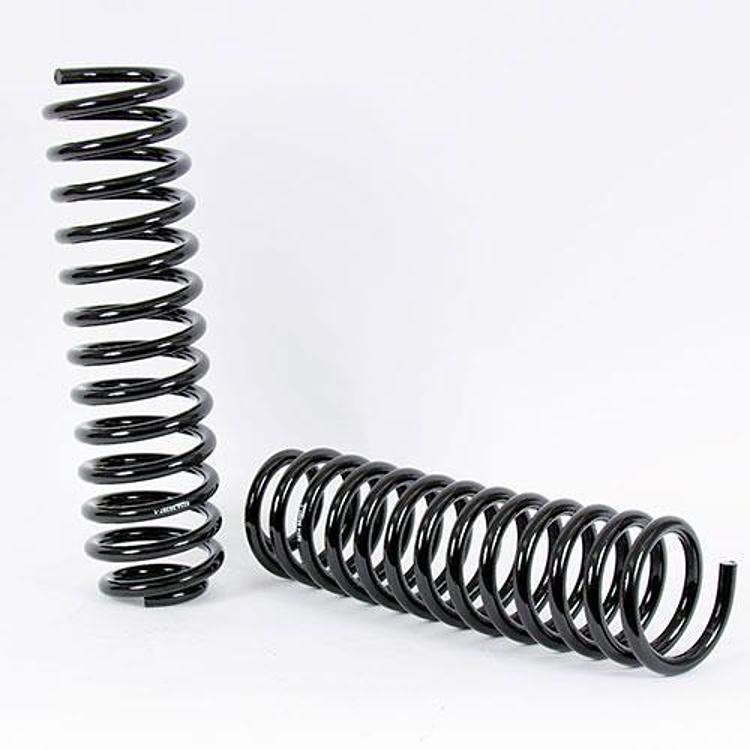

- Front coil springs and rear coil springs
- Front sway bar links

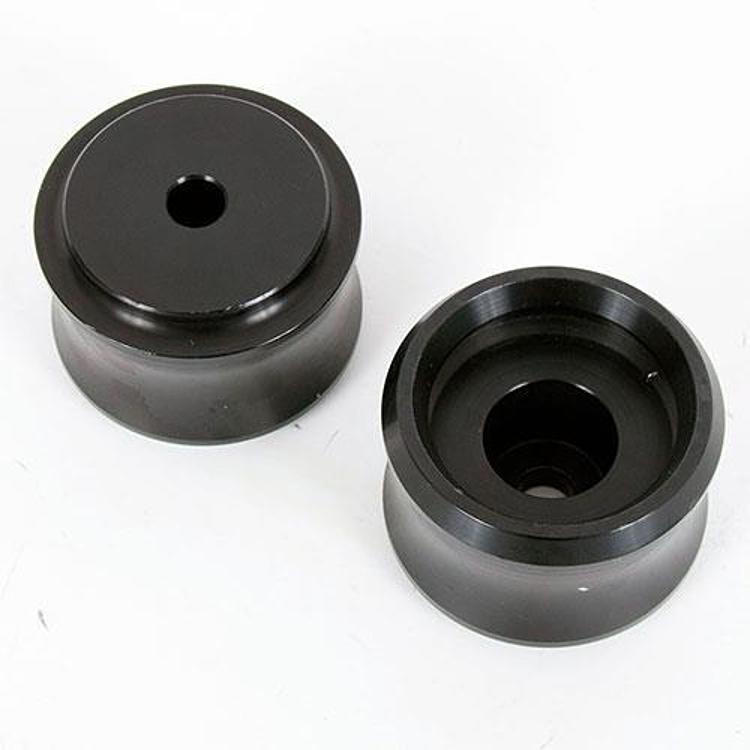

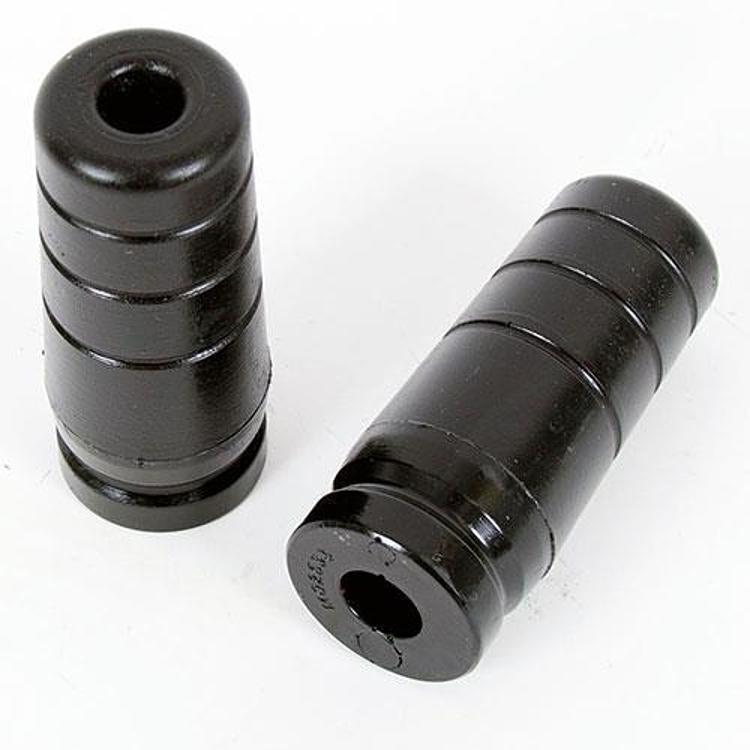

- Bump stop extensions

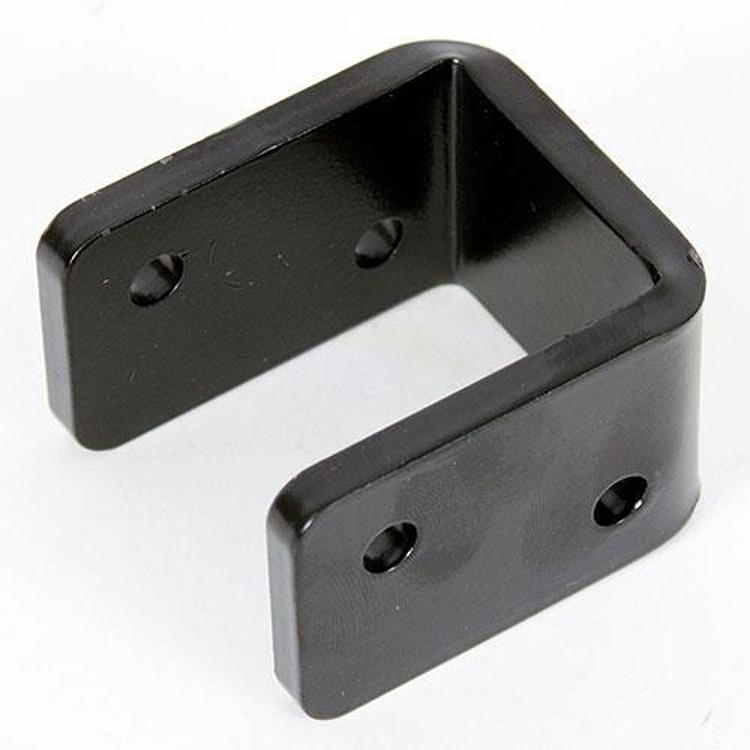

- Brake line extension brackets

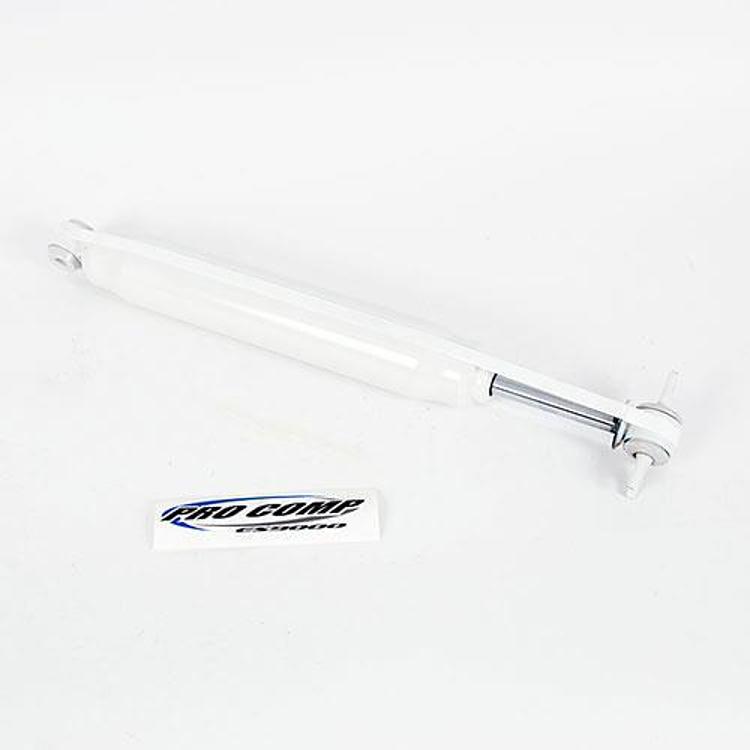

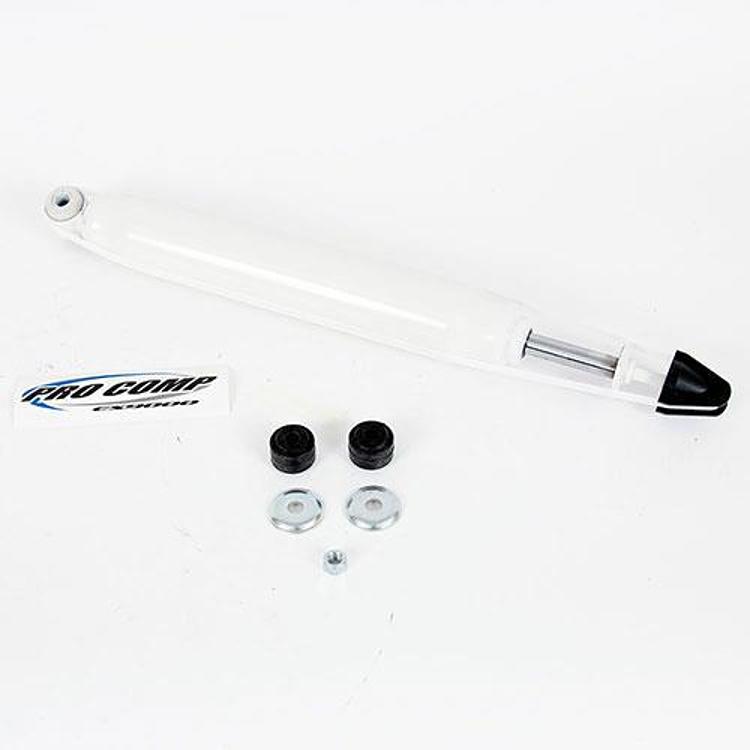

- ES9000 front and rear shocks
Brake lines and sway bars

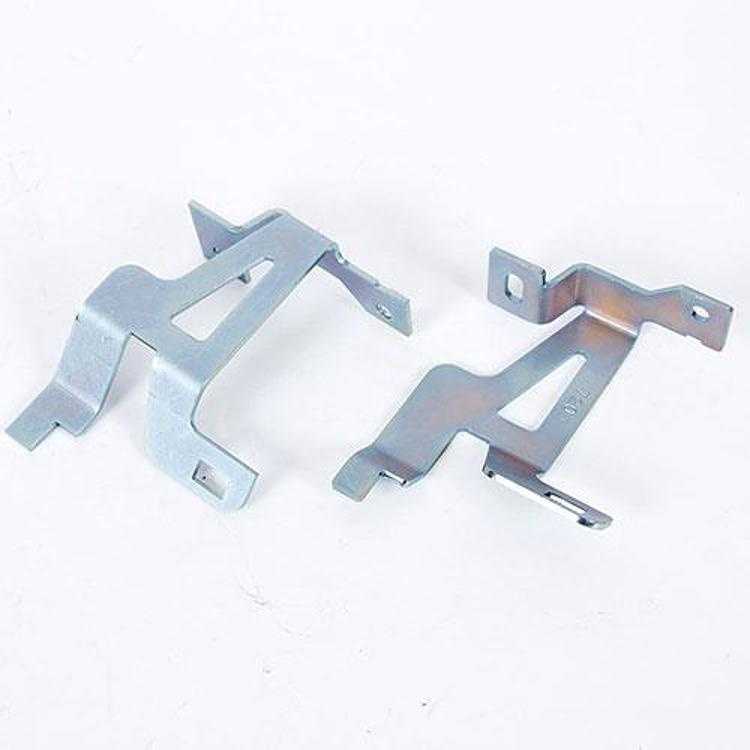

A 3-inch coil spring lift raises the axles, and the brake lines must reach the calipers without stretch at full droop. Brake line extension brackets keep the lines in position and reduce strain on the fittings. Once they are fitted, route the lines so they clear the frame and axle housing at full articulation.

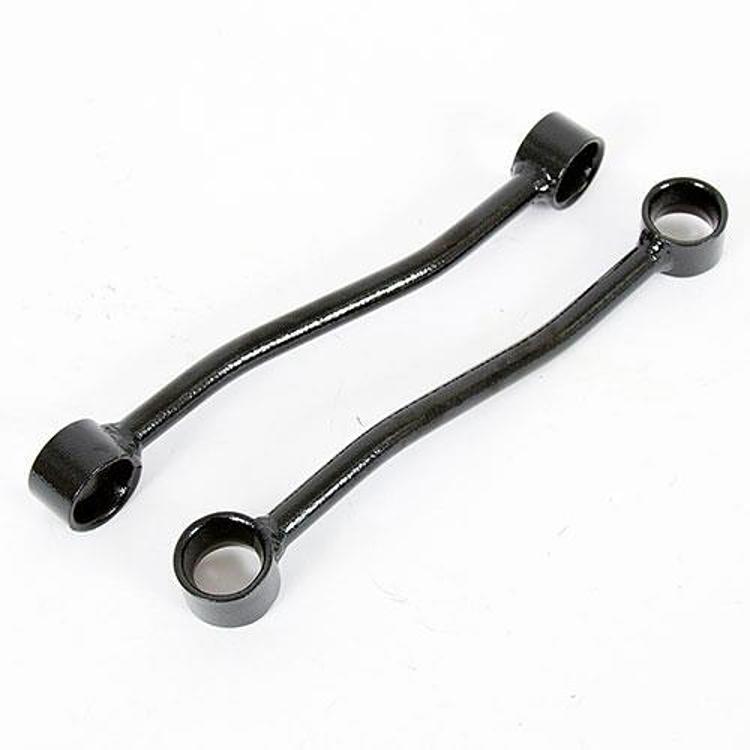

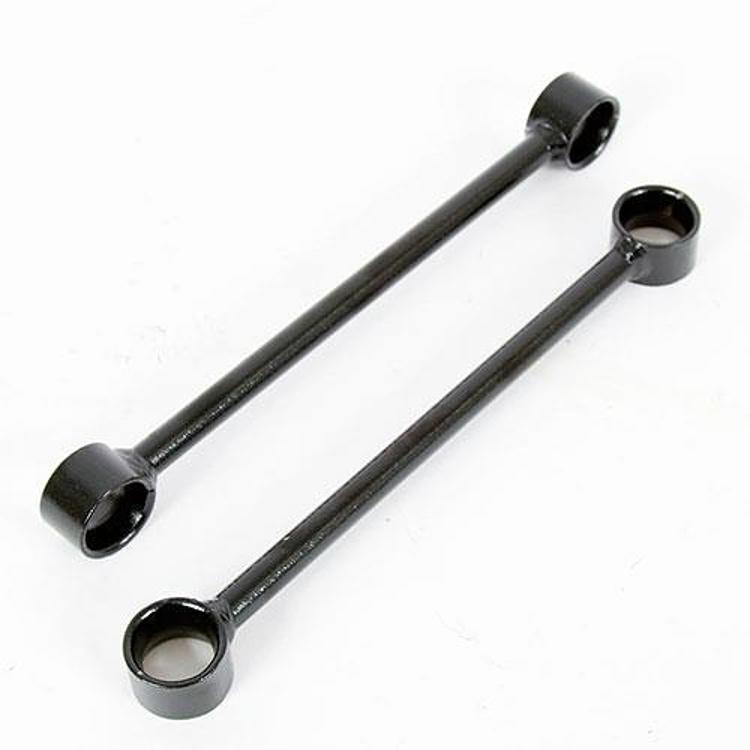

Front sway bar links connect the bar to the axle, and a raised height changes their angle. Correct link length keeps the bar working as intended and reduces body roll on pavement. Inspect the links for worn bushings and bent ends, since off-road flex loads them heavily.
Brake fluid should be checked after installation, and the pads and rotors inspected because the caliper position moves with the lift. Re-check the bump stop extensions after the first few trail runs.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K3089B |
| UPC | 614901123470 |
| Lift | 3 inches, stage 1 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Coil spring kit |
| Front lift | Coil springs |
| Rear lift | Coil springs |
| Front shocks | ES9000 |
| Rear shocks | ES9000 |
| Max tire size | 35×12.50 |
Vehicle fitment
Fits 2007–2018 Jeep Wrangler (JK) Unlimited models in the trims named above. Two-door Wrangler trims are not included.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 3-inch coil spring lift changes the caster and driveline angles, so an alignment and a driveline check are needed once the kit is installed. Confirm the brake line extension brackets are fitted before the brake lines are reconnected.
What’s included

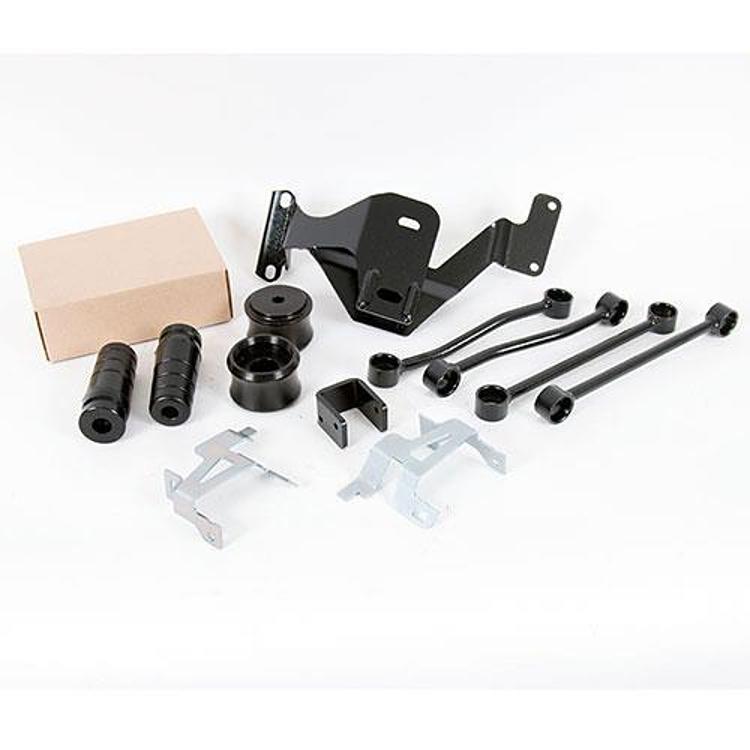

The kit includes front and rear coil springs, front sway bar links, bump stop extensions, brake line extension brackets and ES9000 front and rear shocks.
