Overview
The Pro Comp K4026B is an 8.5-inch leaf spring lift with ES9000 front and rear shocks. It fits 1999-2004 Ford F-250 Super Duty and F-350 Super Duty models, including the Harley-Davidson Edition and related trims.
The front uses leaf springs with hanger drops, shackles and U-bolts. Front sway bar links and bump stops are included, and a pitman arm corrects the steering. The rear uses a block and U-bolt kit. The lift height range is 7 inches and up.
Key features
- 8.5-inch lift, stage 1
- Front leaf springs with hanger drops and shackles
- Front sway bar links and bump stops
- Pitman arm steering correction
- Rear block and U-bolt kit
- ES9000 front and rear shocks
Leaf spring lift checks
Leaf spring lifts with hanger drops and shackles change the way the front axle sits, so the geometry should be inspected when the work is done. Hanger drops move the spring mounting points, which affects bushings and shackle angles. Check the spring eyes and shackle bolts after the first few drives.
A pitman arm and steering correction help when the front is raised substantially. Expect to set alignment, caster and steering centering together. Sway bar links and bump stops often wear faster after a large lift, so include them in the inspection list. Shock boots are a separate item, and a damaged boot should be replaced to protect the shaft.
- Inspect hanger drop bolts for tightness
- Check shackle bushings for wear
- Re-center steering after alignment
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4026B |
| UPC | 70000338945 |
| Lift | 8.5 inches, stage 1 |
| Lift height range | 7 inches and up |
| Suspension type | Leaf spring |
| Front lift | Leaf springs with hanger drops, shackles and U-bolts |
| Rear lift | Block and U-bolt kit |
| Steering correction | Pitman arm |
| Front shocks | ES9000 |
| Rear shocks | ES9000 |
| Shock boots | Not included |
Vehicle fitment
It fits 1999-2004 Ford F-250 Super Duty and F-350 Super Duty models in the Harley-Davidson Edition and related trims. Check your year and trim against the kit before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
An 8.5-inch leaf spring lift with hanger drops and shackles changes the front and rear geometry a great deal, so the alignment, driveline angles and steering centering all need checking after installation.

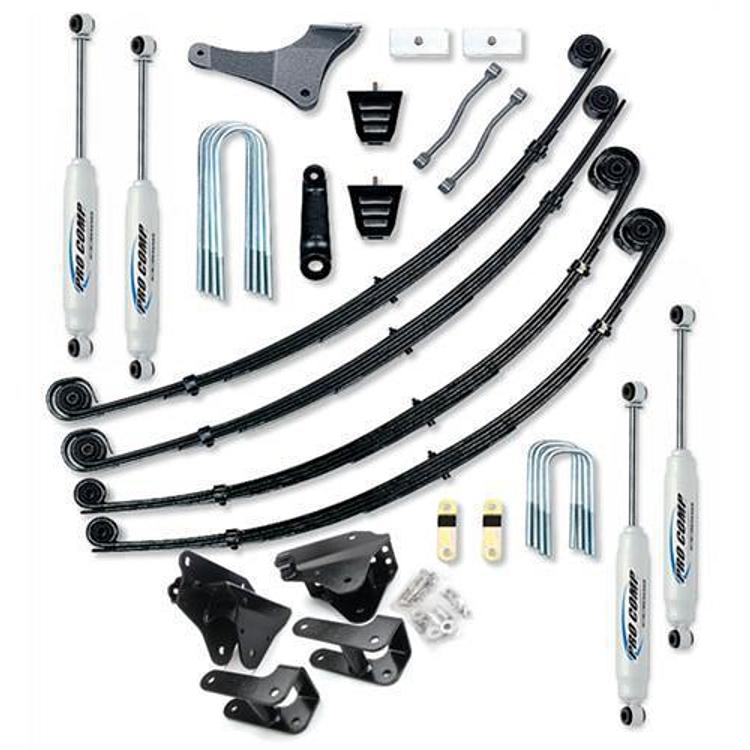

What’s included
The kit includes front leaf springs, hanger drops, shackles, U-bolts, front sway bar links, bump stops, a pitman arm, a rear block and U-bolt kit and ES9000 front and rear shocks. Shock boots are not included.
