Overview
The Pro Comp K4185B is an 8-inch Stage II lift kit with ES9000 shocks for the 2011–2016 Ford F-250 and F-350 Super Duty. It uses replacement radius arms and specific rate coil springs at the front, and lift blocks, U-bolts and add-a-leafs at the rear.
The product name says Stage I while the spec table lists stage 2, so confirm the stage before ordering. The steering is corrected with a Pitman arm, and the kit includes a front track bar bracket and sway bar links.
Key features
- 8-inch lift height
- Replacement radius arms
- Specific rate coil springs and spacers
- Pitman arm steering correction
- Front track bar bracket and sway bar links
- Lift blocks, U-bolts and add-a-leafs at the rear
Radius arms and alignment
Replacement radius arms change the front control geometry, so they are usually the first part to inspect after a lift this tall. Bushings should be checked for play and cracks, and the mounting brackets should be free of rust or hairline welds. Because the arms set the axle position, a fresh alignment is part of a complete install.
Steering correction through a Pitman arm works with the new arm angles. Over time, tie rods, drag links and ball joints wear faster at a higher stance. Replace worn steering parts when they show play, and recheck the track bar after any suspension change so the axle stays centered.
- Check radius arm bushings for play
- Inspect the Pitman arm and drag link joints
- Schedule an alignment soon after installation
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4185B |
| UPC | 70000544972 |
| Lift height | 8 inch (lift height range 7 inches and up) |
| Lift kit stage | Stage 2 in the spec table (Stage I in the product name) |
| Suspension type | Radius arm or radius arm brackets |
| Front lift | Specific rate coil springs and spacers |
| Steering correction | Pitman arm |
| Rear lift | Lift blocks, U-bolts and add-a-leaf |
| Front shocks | ES9000 |
Vehicle fitment
Covered trucks are 2011 through 2016 Ford F-250 and F-350 Super Duty models across the King Ranch, Lariat, Platinum, XL and XLT trims.
The listed span is 2011 through 2016 for both trucks, so earlier and later Super Duty years are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Replacement radius arms and a Pitman arm change the front geometry substantially at 8 inches, so schedule the alignment and check the driveline angles after installation.

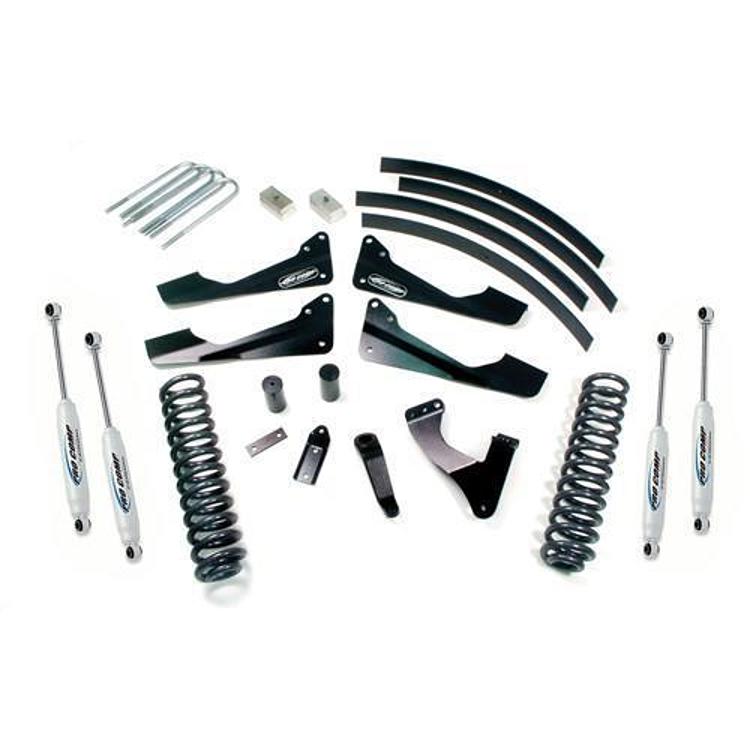

What’s included
The kit includes replacement radius arms, specific rate coil springs and spacers, the Pitman arm steering correction, a front track bar bracket, sway bar links, lift blocks, U-bolts and add-a-leafs, and ES9000 front shocks.
