Overview
The Pro Comp K4064B is a 6-inch stage 2 coil spring lift with radius arms and ES3000 front and rear shocks. The lift height range is 5 to 6.99 inches, and the front uses coil springs with radius arms.
The rear is lifted with a block and U-bolt kit. Bump stop extensions and a pitman arm for steering correction are included, along with extended length brake lines. Shock boots are not included.
Key features
- 6-inch lift, stage 2
- Front coil springs with radius arms
- Rear block and U-bolt lift
- Bump stop extensions
- Pitman arm steering correction
- Extended length brake lines
Block and U-bolt rear lifts
A block and U-bolt rear lift raises the axle on blocks placed between the springs and the axle. This raises ride height without changing the spring rate, but it moves the pinion angle and can increase the driveshaft operating angle. Driveline vibration is the usual sign that the angle needs attention.
Because the blocks shift the axle position, check the U-bolts for tightness after the first drives and again at regular service intervals. Inspect the driveshaft U-joints and the pinion for play. Radius arm setups are often paired with this type of rear lift, so alignment and brake line routing should be checked together.
- Retorque U-bolts after the first drives
- Check driveshaft U-joints for wear
- Confirm brake line length at the new height
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4064B |
| UPC | 614901125115 |
| Lift | 6 inches, stage 2 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Radius arm |
| Front lift | Coil springs with radius arms |
| Rear lift | Block and U-bolt kit |
| Steering correction | Pitman arm |
| Front shocks | ES3000 |
| Rear shocks | ES3000 |
| Shock boots | Not included |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering. Check the axle and spring setup on your truck before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Radius arms and a block and U-bolt rear lift change the front and rear geometry, so check the alignment and driveline angles after installation. Confirm the extended brake lines fit the new height before the wheels are refitted.
What’s included

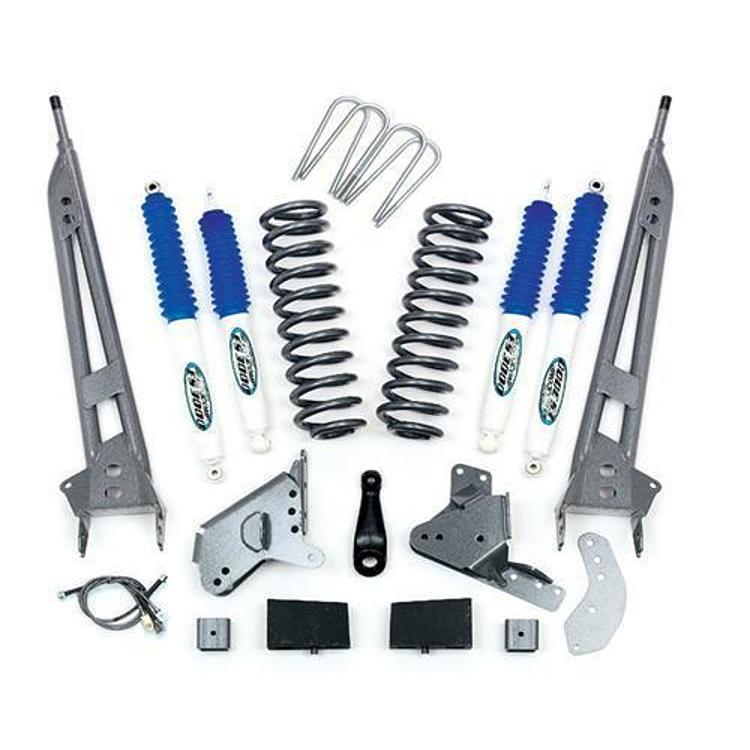

The kit includes front coil springs, radius arms, bump stop extensions, a pitman arm, extended length brake lines, a rear block and U-bolt kit and ES3000 front and rear shocks. Shock boots are not included.
