Overview
The Pro Comp K4016B is a 6.5-inch stage 1 leaf spring lift with ES9000 front and rear shocks. It fits 1999–2004 Ford F-250 Super Duty and F-350 Super Duty models, including the Harley-Davidson Edition and King Ranch trims.
The front uses leaf springs with sway bar spacers, bump stops and a pitman arm for steering correction. The rear uses springs and U-bolts. The lift height range is 5 to 6.99 inches.
Key features
- 6.5-inch stage 1 lift
- Front leaf springs and sway bar spacers
- Bump stops
- Pitman arm steering correction
- Rear springs and U-bolts
- ES9000 front and rear shocks
Leaf spring lifts and axle work
Leaf spring lifts rely on the springs, U-bolts and axle location working together. Once the springs are changed, the axle can shift under load, so the U-bolts should be checked early. Leaf packs also settle a little after installation, which can change ride height on each side.
A pitman arm changes the steering geometry, so the steering centering should be checked once the work is complete. Inspect the sway bar spacers and bump stops for wear, and look at the front tires for uneven edges that could point to alignment or steering issues.
- Retorque U-bolts after the first drive
- Check axle position after rough trail use
- Confirm steering centers straight after installation
- Inspect leaf spring eyes and bushings for wear
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4016B |
| UPC | 614901124415 |
| Lift | 6.5 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Leaf spring |
| Front lift | Leaf springs |
| Rear lift | Springs and U-bolts |
| Steering correction | Pitman arm |
| Front shocks | ES9000 |
| Rear shocks | ES9000 |
| Shock boots | Not included |
Vehicle fitment
It fits 1999–2004 Ford F-250 Super Duty and F-350 Super Duty models in the Harley-Davidson Edition, King Ranch and related trims. Trucks from other Ford model years are outside this kit’s fit.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 6.5-inch leaf spring lift changes the front alignment and the rear driveline angles, so check both after installation. The pitman arm changes the steering geometry, so check the steering centering too.
What’s included

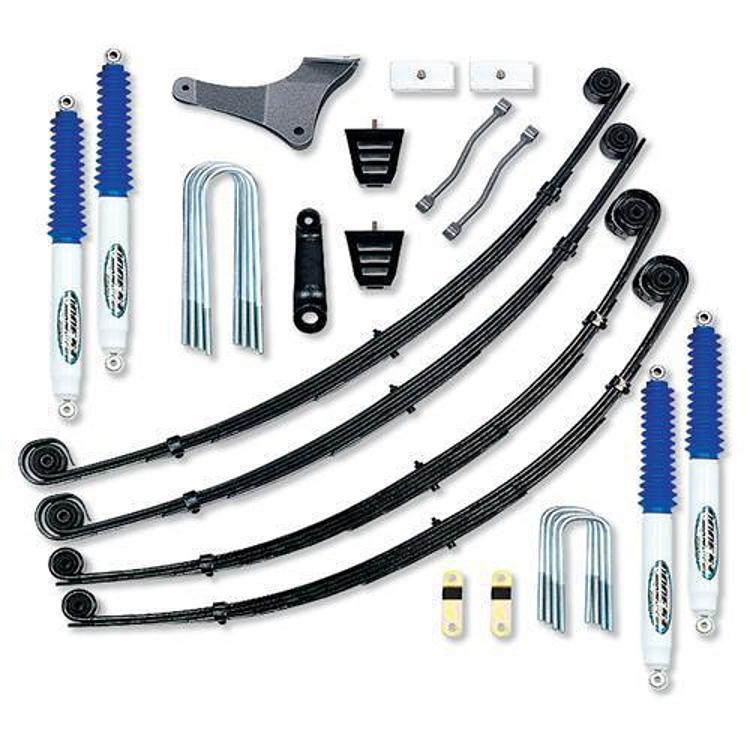

The kit includes front leaf springs, sway bar spacers, bump stops, a pitman arm, rear springs and U-bolts, and ES9000 front and rear shocks. Shock boots are not included.
