Overview
The Pro Comp K4186B is an 8-inch Stage II lift kit with ES9000 shocks for the 2011 and newer Ford F-250 Super Duty. The replacement radius arms are part of the Stage II front, and the specific rate coil springs and spacers raise the height at the front.
The kit is for the 2011 and newer Ford F-250 Super Duty. The pitman arm corrects the steering, and the rear uses lift blocks, U-bolts and add-a-leafs.
Key features
- 8-inch lift height, Stage II

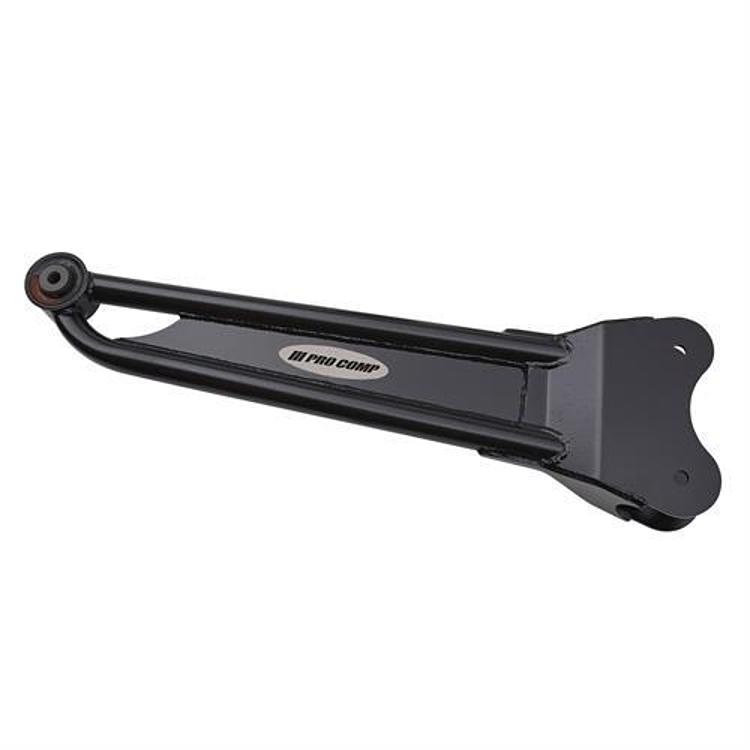

- Replacement radius arms

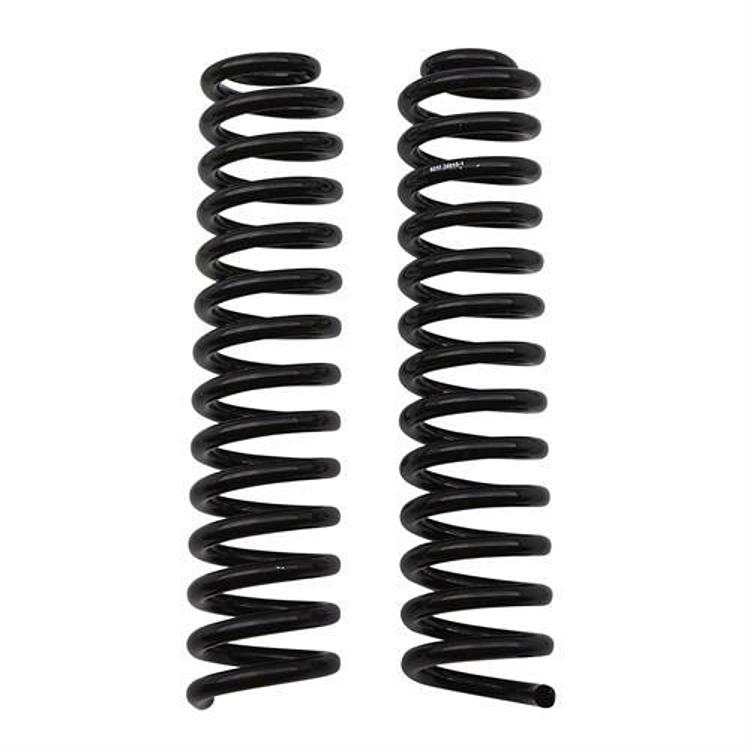

- Specific rate coil springs and spacers
- Pitman arm steering correction

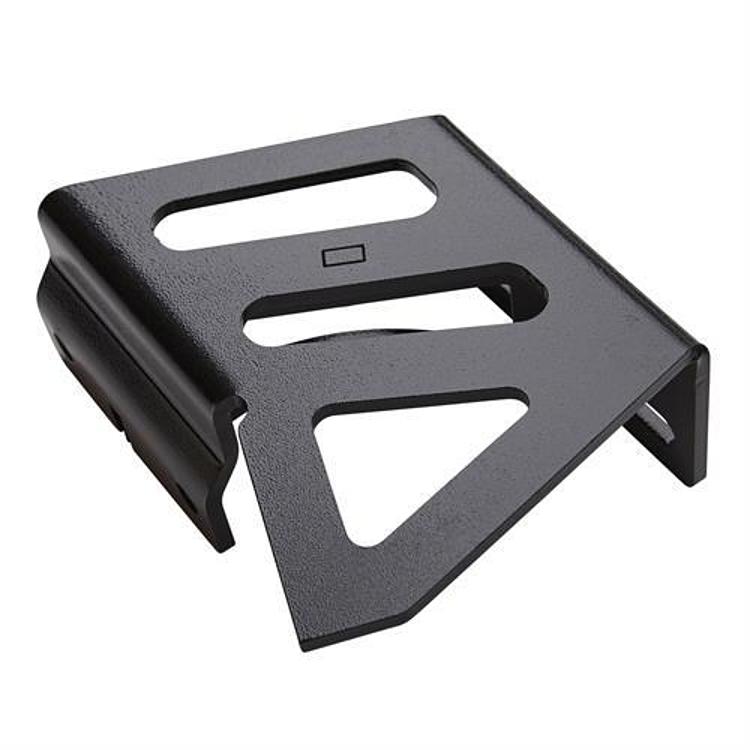

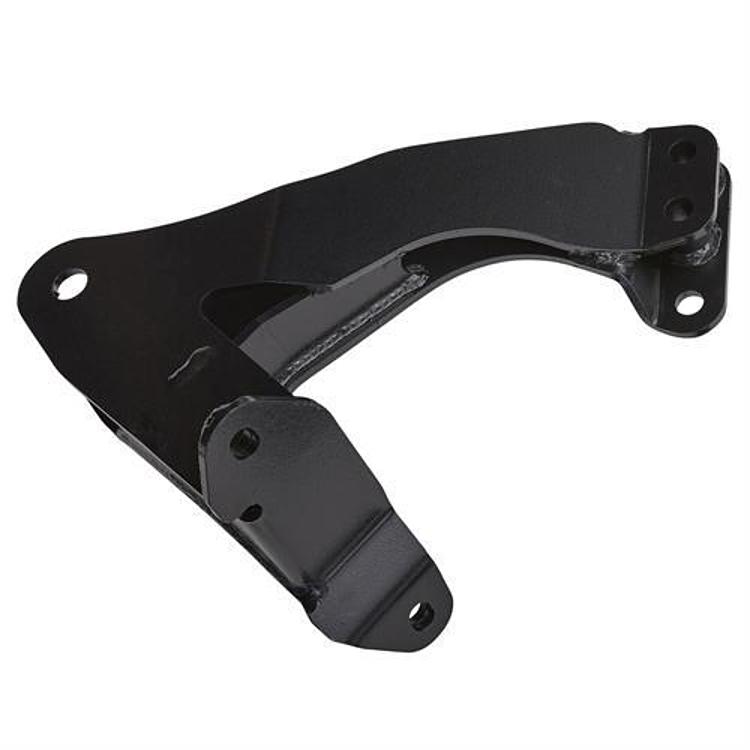

- Front track bar bracket and sway bar links

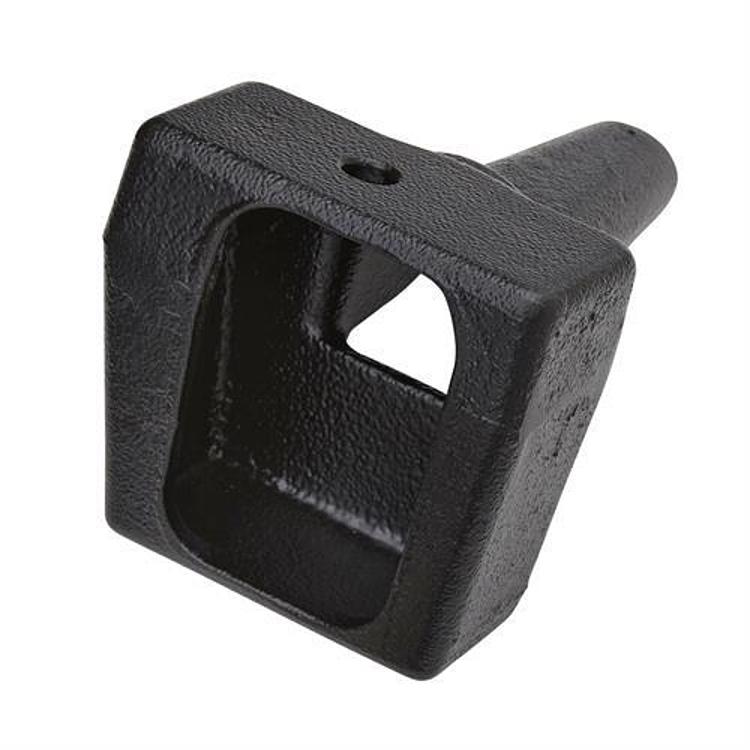

- Lift blocks, U-bolts and add-a-leafs at the rear
Matching wheels and tires
A high Stage II build changes tire clearance and the overall stance of the truck, so wheel offset and tire diameter deserve attention before the work begins. Larger tires add rotational weight and can strain steering and axle components, and rubbing at full lock or during suspension compression is a common sign that the setup needs adjustment.
Replacement radius arms, specific rate coil springs and spacers work together at the front, so they are often replaced as a set when the front is rebuilt. Lift blocks and add-a-leafs at the rear affect pinion angle, and a driveline vibration after installation usually means that angle needs checking. Track bar brackets and sway bar links should be inspected at the same time.
- Check tire rub at full steering lock
- Inspect ball joints and tie rod ends after the first drives
- Recheck U-bolt torque after initial highway miles
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4186B |
| UPC | 70000544993 |
| Lift height | 8 inch (lift height range 7 inches and up) |
| Lift kit stage | Stage 2 |
| Suspension type | Radius arm or radius arm brackets |
| Front lift | Specific rate coil springs and spacers |
| Steering correction | Pitman arm |
| Rear lift | Lift blocks, U-bolts and add-a-leaf |

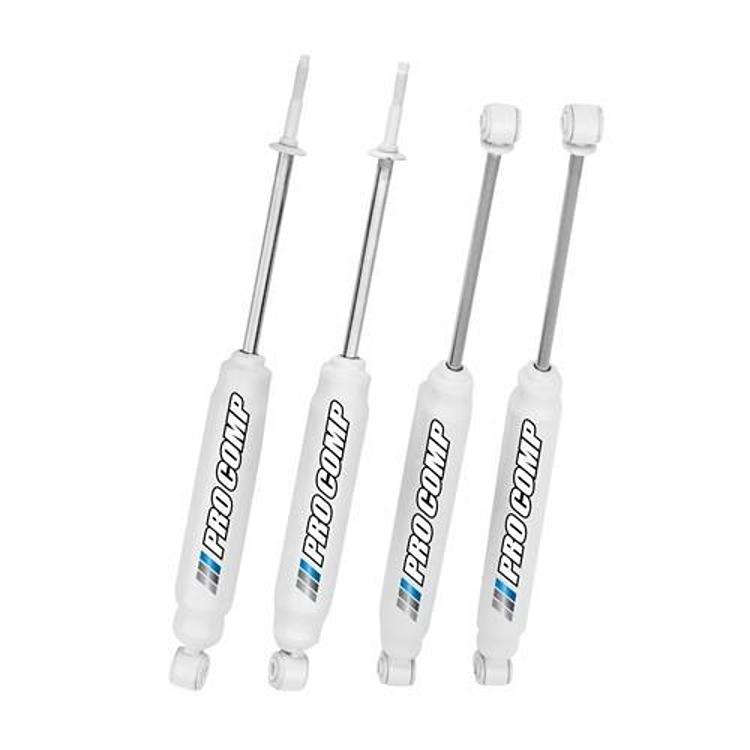

| Front shocks | ES9000 |
Vehicle fitment
It fits 2011 through 2022 Ford F-250 Super Duty trucks.
The kit fits only the F-250 Super Duty. F-350 trucks and earlier F-250 years are outside its fit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Replacement radius arms and a Pitman arm change the front geometry at this height, so the alignment and the driveline angles should be checked after the install.

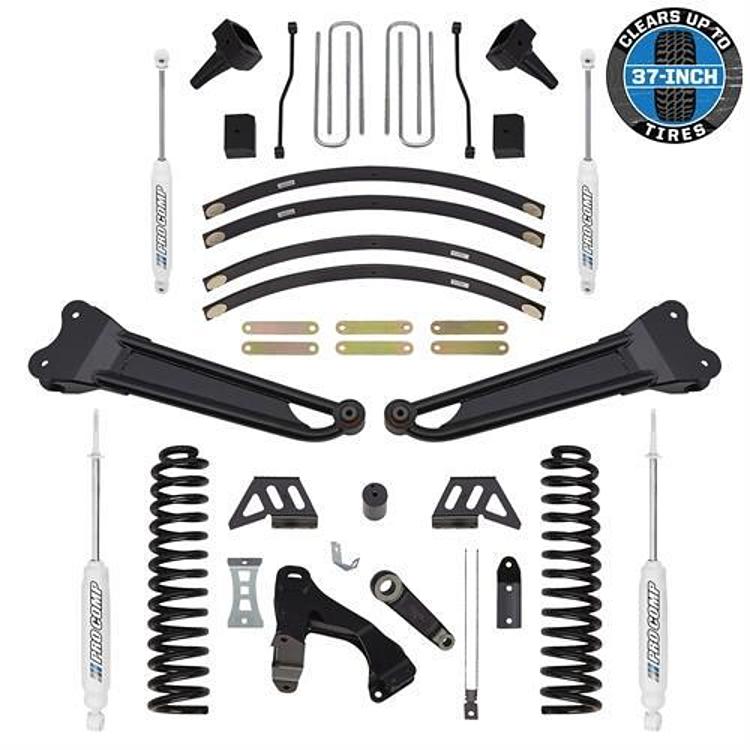

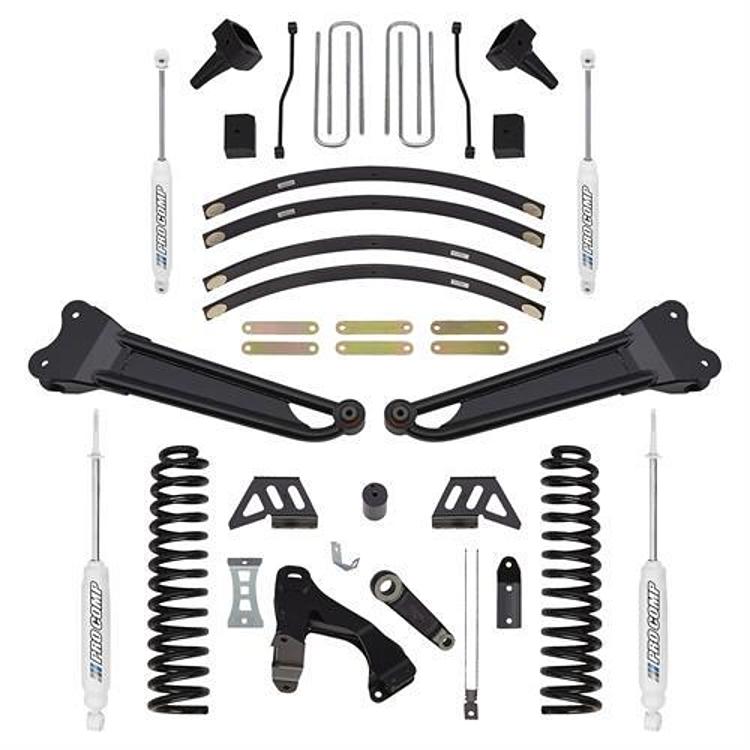

What’s included
The kit includes replacement radius arms, specific rate coil springs and spacers, the Pitman arm steering correction, a front track bar bracket, sway bar links, lift blocks, U-bolts and add-a-leafs, and ES9000 front shocks.
