Overview
The Pro Comp K2076T is a 6-inch short arm lift kit with PRO-X front and rear shocks for the 2009–2010 Dodge Ram 2500 and Dodge Ram 3500 heavy-duty pickups. The lift height range is 6 to 7 inches, and both shocks come with the kit.
The rear uses a block and spacer method with block and U-bolt components. The 2500 is available in several versions, and the Power Wagon and TRX versions are offered on the 2500 only.
Key features
- 6-inch short arm design for the 2009–2010 Dodge heavy-duty pickups

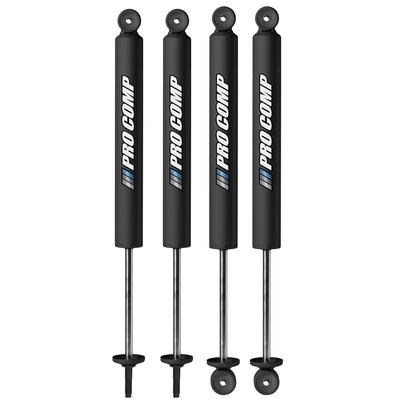

- PRO-X front shocks and PRO-X rear shocks
- Block/spacer rear lift method
- Block and U-bolt rear lift components
- Lift height range of 6 to 7 inches
Choosing between shock tiers
Shock choice on a lifted heavy-duty truck comes down to length, mounting style and the damping that suits your loads. Mounting points must still line up with the new suspension height, so measure the extended and compressed lengths before buying. Matching the damping to your tire size and typical load helps the truck track straight over washboard and pavement seams.
Shocks work harder once the ride height changes, so they are worth inspecting whenever the rest of the suspension is serviced. A worn bump stop or a bottomed shock can turn a smooth ride into a harsh one, and both are easy to check during an oil change or tire rotation.
- Shock length and mount style
- Bump stop condition
- Replacing shocks in pairs
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K2076T |
| Suspension type | Lift kit, short arm |
| Lift height | 6 inches, listed range 6–7 inches |
| Front shocks | PRO-X |
| Rear shocks | PRO-X, included |
| Rear lift method | Block/spacer with block and U-bolt |
| Shocks included | Yes |
Vehicle fitment
It fits the 2009–2010 Dodge Ram 2500 in the Laramie, Power Wagon, SLT, ST, SXT and TRX versions, and the 2009–2010 Dodge Ram 3500 in the Laramie, SLT, ST and SXT versions.
The list does not include the 2011 and newer Ram heavy-duty trucks, the 2008 and older Dodge Ram 2500 or 3500, or the Ram 1500. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The short arm and block lift change the front geometry and driveline angles on these trucks, so check the alignment and the driveline angles once the kit is installed.
What’s included
PRO-X front and rear shocks, the block and U-bolt rear lift components, and the short arm parts for this kit.
