Pro Comp 6 Inch Lift Kit with ES9000 Shocks – K5089B

Pro Comp Suspension

Shop Toyota Tacoma Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch lift kit with ES9000 rear shocks for the 2016–2018 Toyota Tacoma
  • Extended steering knuckles that keep the rack and pinion in the factory location
  • Rock-proof crossmembers, a front strut spacer and differential drop brackets
  • Lift block with add-a-leaf, U-bolts and sway bar drop

Description

Overview

The Pro Comp K5089B is a 6-inch Stage 1 lift kit with rear ES9000 shocks for the 2016–2018 Toyota Tacoma. Its extended steering knuckles keep the rack and pinion steering unit in the factory location, and the crossmembers are made to be rock-proof.

The design maintains proper CV axle angles and allows full compression and extension travel without binding the ball joints. The rear lift uses lift blocks with add-a-leafs and U-bolts, and the kit includes a front strut spacer and differential drop brackets.

Key features

  • 6-inch lift height from a Stage 1 kit
  • Extended steering knuckles
  • Rock-proof crossmembers
  • Front strut spacer and differential drop brackets
  • Sway bar drop brackets
  • Lift block with add-a-leafs and U-bolts

Driving after a lift

Raising a truck changes how the suspension moves, and the effects show most on uneven ground. Longer control components and steering parts alter the angles that carry power to the wheels, so the CV joints work through a different range than the factory setup. During the first weeks of driving, watch for rubbing at full steering lock and at full suspension droop, and listen for vibration under acceleration.

On pavement, a taller stance changes how the truck leans in corners and how the steering feels at speed. Rear lift blocks and add-a-leafs change the pinion angle, which is why the driveshaft is worth checking after the first trips. Fasteners on the sway bar drop and differential drop brackets should be rechecked after rough trail use, since vibration can loosen them over time.

  • Recheck fasteners after the first off-road outings
  • Inspect CV boots for tears during regular service
  • Look for bump stop contact on rough roads
  • Watch brake lines for stretch at full droop

Specifications

Brand Pro Comp Suspension
Part number K5089B
UPC 700007619161
Lift height 6 inch (lift height range 5 to 6.99 inches)
Lift kit stage Stage 1
Suspension type Crossmember
Front control Extended steering knuckles, crossmembers and strut spacer
Rear lift Add-a-leaf with lift blocks and U-bolts
Rear shocks ES9000
Front shocks None listed

Vehicle fitment

It fits the 2016–2018 Toyota Tacoma in the Limited, SR, SR5, TRD Off-Road, TRD Pro and TRD Sport versions.

The list covers the 2016 through 2018 model years, so the 2015 and earlier Tacomas and the 2019 and newer generation are not included. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Extended steering knuckles and the rock-proof crossmembers change the front geometry, so have the alignment checked and the driveline angles measured once the kit is installed.

What’s included

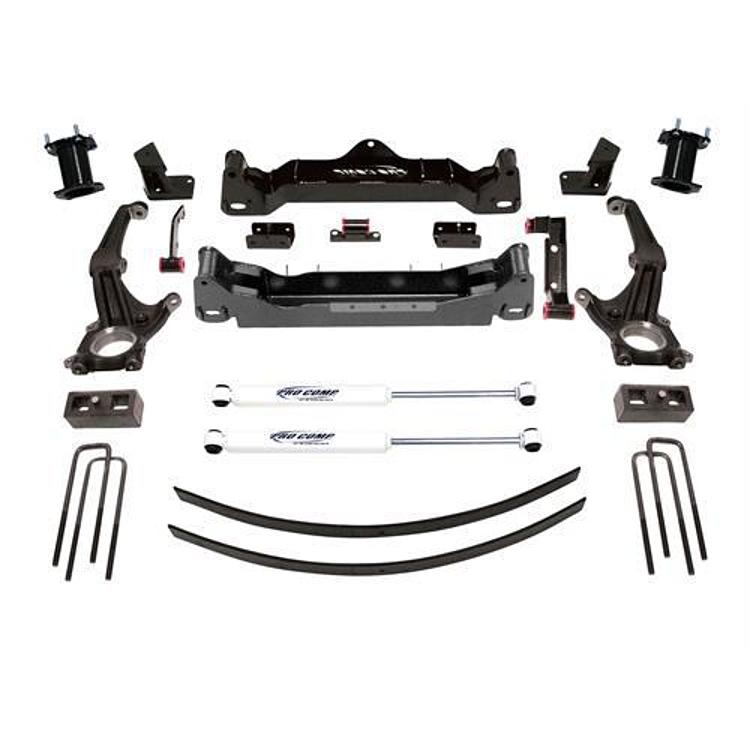

The kit includes extended steering knuckles, rock-proof crossmembers, a front strut spacer, differential drop brackets, the sway bar drop, lift blocks with add-a-leafs and U-bolts, and ES9000 rear shocks.

SKU: EXPK5089B Category:

Specification

Shipping weight 201.80 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Fitment

VehicleYearsTrims
Toyota Tacoma2016–2018Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K5089B fit a 2015 Tacoma?

No. This kit fits the 2016 through 2018 Toyota Tacoma, so a 2015 model falls outside its fit range. Confirm fit for your vehicle's year, model and trim before ordering.

Do the steering knuckles keep the factory steering in place?

Yes. The extended knuckles keep the rack and pinion steering unit in the factory location, so the steering components stay at their original mounts.

Are front shocks included?

The spec table lists no front shocks for this kit. The ES9000 shock is at the rear, and it is the only shock named for the kit.

Do the rear lift blocks need checking after installation?

Yes. Check the U-bolts and add-a-leaf fasteners after the first few drives, and inspect the driveshaft for vibration. Retightening and a look at the rear bushings can catch small problems before they grow.
