Stage II Lift Kit with ES9000 Shocks – K3090B

Pro Comp Suspension

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 2007–2018 Jeep Wrangler (JK) Unlimited
  • 4 Inches Stage II coil spring and short arm lift kit
  • Includes front and rear ES9000 shocks
  • Includes boxed lower control arms, sway bar links, bump stop extensions and brake line brackets

Description

Overview

The Pro Comp Stage II Lift Kit with ES9000 Shocks, part number K3090B, is a 4 inch coil spring and short arm lift kit for the 2007–2018 Jeep Wrangler (JK) Unlimited. It raises the front and rear with coil springs and includes ES9000 shocks at all four corners.

The Stage II kit adds front sway bar links, bump stop extensions, boxed lower control arms and brake line extension brackets to the springs and shocks. The lift height range is 3 to 4.99 inches.

Key features

  • 4 Inches stage 2 coil spring and short arm lift
  • Front and rear lift with coil springs
  • ES9000 shocks included, front and rear
  • Front sway bar links
  • Bump stop extensions
  • Boxed lower control arms
  • Brake line extension brackets
  • Lift height range of 3 to 4.99 inches

Lift height and daily driving

A four inch short arm lift changes the geometry of the whole suspension, so the way the truck tracks and steers shifts. Coil springs and boxed control arms work together to hold the axles in position at the new height. Driveline angles also change, which can add vibration if the lift is not balanced.

Daily driving with a higher center of gravity calls for steady braking and slower cornering. Tire pressures and wheel offsets affect steering response, so review them after the lift is in. Keep brake lines and cables free of tension at full droop to avoid strain.

Regular inspection keeps the system predictable. Look for worn bump stops, cracked bushings and leaking shocks at each service, and check the alignment after any work on the front end.

  • Check driveline angles after lifting
  • Inspect boxed control arm bushings at each service
  • Replace cracked bump stops promptly

Specifications

Brand Pro Comp Suspension
Part number K3090B
UPC 614901123494
Product type Lift kit
Kit level Stage 2, 4 Inches
Lift height range 3 to 4.99 Inches
Suspension type Coil spring and short arm
Front lift method Coil springs
Rear lift method Coil springs
Shocks ES9000, front and rear (included)
Other components Front sway bar links, bump stop extensions, boxed lower control arms, brake line extension brackets
Fit type Direct fit

Vehicle fitment

The K3090B fits the 2007–2018 Jeep Wrangler (JK) Unlimited in 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims.

This kit is for the Unlimited JK, so confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

A lift kit changes how the whole suspension behaves, so professional installation is recommended. Support the vehicle on jack stands on level ground, and never work under it when only a jack is holding it. Tighten all hardware to its torque specification and check it again after the first few miles. Finish with an alignment, and confirm that brake lines, cables and wiring have enough slack across the whole range of travel.

A lift changes ride height, headlight aim, brake line routing and steering geometry, so have the alignment checked, confirm brake line and cable clearance, and check local lift-height regulations.

What’s included

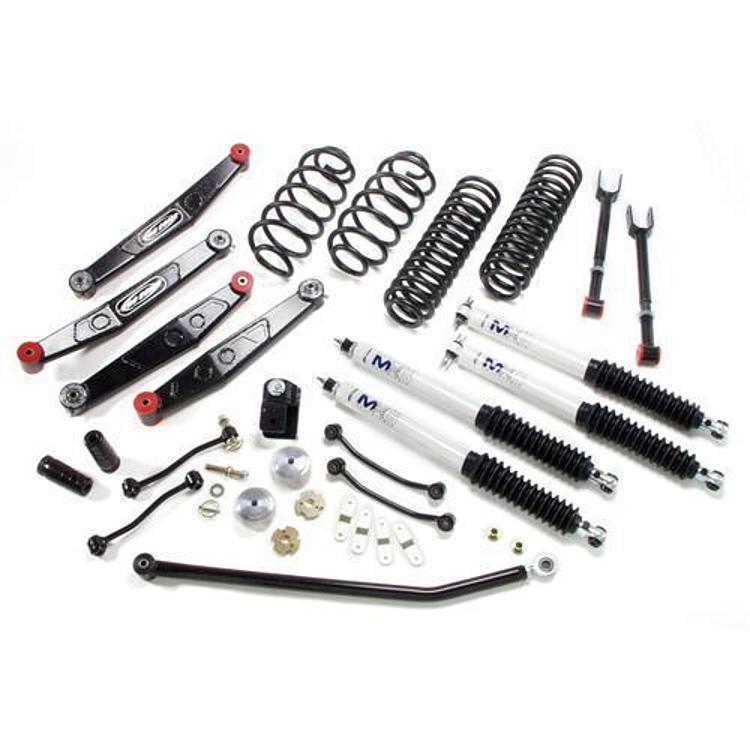

Coil springs for the front and rear, front and rear ES9000 shocks, front sway bar links, bump stop extensions, boxed lower control arms and brake line extension brackets.

SKU: EXPK3090B Category:

Specification

Shipping weight 173.48 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–2018Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What Jeep does the Pro Comp K3090B lift kit fit?

It fits the 2007–2018 Jeep Wrangler (JK) Unlimited in the trims covered by this kit, including Rubicon, Sahara and Sport. It is a Stage 2, 4 Inches coil spring and short arm lift.

Does the Pro Comp K3090B include shocks?

Yes. The kit includes Pro Comp ES9000 shocks for the front and rear, and the attribute list shows shocks included. Springs and other parts are in the same kit.

What parts come with the K3090B Stage II kit?

The kit includes front and rear coil springs, ES9000 shocks, front sway bar links, bump stop extensions, boxed lower control arms and brake line extension brackets.

How much lift does the Pro Comp K3090B give?

It is a Stage 2, 4 Inches kit with a lift height range of 3 to 4.99 Inches. The lift comes from coil springs at both the front and rear, along with the short arm setup.

Do shocks need replacing when the lift is installed?

Shocks should match the new ride height and suspension travel, so replacing them with the lift is common. Check the shock length against the new geometry before installing, and inspect the mounts for wear at the same time.
