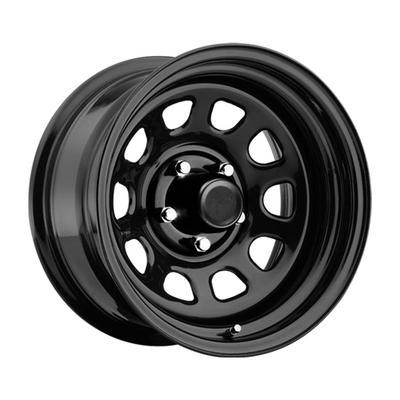

Pro Comp 51 Series Rock Crawler, 16x8 Wheel with 5 on 5 Bolt Pattern – Gloss Black – 51-6873

Pro Comp Steel Wheels

Shop Pro Comp Steel Wheels 16x8 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PCW51-6873: 16×8 steel windowed wheel, 51 Series, gloss black
  • 5 on 5 bolt pattern, center bore 83, offset -6, backspacing 4.25
  • Steel construction, sold without center cap or lug nuts
  • Match bolt pattern and clearance to your vehicle before ordering

Description

Overview

The Pro Comp PCW51-6873 is a 16×8 steel wheel from the Pro Comp 51 Series, a windowed Rock Crawler design with a 5 on 5 bolt pattern and a gloss black finish. It is sold as a single wheel, without the center cap or lug nuts.

The Rock Crawler wheels are steel with a powder-coated finish. At 16 inches in diameter and 8 inches wide, the rim takes a 16-inch tire sized for an 8-inch-wide rim. The Rock Crawler name points to trail use, and this model is a universal fit wheel rather than one built for a named vehicle.

Key features

  • Steel construction with a windowed face style
  • 16-inch diameter and 8-inch width
  • 5 on 5 bolt pattern with a center bore of 83
  • Offset -6 and backspacing 4.25
  • Gloss black finish from the 51 Series range
  • Powder-coated steel construction

Choosing a setup for this wheel

Negative offset and short backspacing change where the tire sits, which matters more than rim diameter on a trail rig. Measure the space between the back of the wheel and the brake parts, then compare that with the tire you plan to run. A tire that fits on paper may still rub when the suspension compresses.

Spacers are often used to fix fitment, but they also move the wheel bearing load outward and shift the tire further from the fender. If you change tire width, recheck steering arm and tie rod clearance. Mark which wheel went on which corner so balance and wear stay consistent.

  • Check inner fender clearance at full compression
  • Compare tire width to rim width
  • Mark wheel position when rotating

Specifications

Brand Pro Comp Steel Wheels
Part number PCW51-6873
Series 51 Series
Style Windowed
Construction Steel
Finish Gloss black
Diameter 16 inches
Width 8 inches
Bolt pattern 5 on 5
Center bore 83
Offset -6
Backspacing 4.25

Vehicle fitment

This wheel is a universal fit wheel and is not tied to one model. Whether it mounts and clears depends on the 5 on 5 bolt pattern, the 83 center bore, the -6 offset and the 4.25 backspacing, so compare those against your hub and fender clearance.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Bolt-on mounting needs a matching 5-lug hub, and the center bore should be checked against the hub so the wheel seats correctly. A negative offset moves the tire outward, so test-fit the wheel with its tire at the inner fender and the brake caliper before a trail trip.

What’s included

One 16×8 wheel. The center cap and lug nuts are sold separately and are not included.

SKU: PCW51-6873 Categories: ,

Questions & Answers

What bolt pattern does the Pro Comp PCW51-6873 use?

It is a 5 on 5 bolt pattern with a center bore of 83. Check both measurements against your hub before ordering, since the bolt pattern must match exactly.

Are the center cap and lug nuts included with the PCW51-6873?

No. The center cap and lug nuts are sold separately, so buy them with the wheel if your hub needs them.

Is the PCW51-6873 made for a specific vehicle?

No vehicle is named for this wheel. The specifications read universal fit, so the bolt pattern, offset and backspacing decide whether it mounts and clears. Confirm your vehicle's year, model and trim before ordering.

Should I use wheel spacers with this wheel?

Spacers change offset and clearance, so use them only after a full clearance check. They add load to the wheel bearings and studs and can shift the tire into the fender. Choose hub-centric spacers and confirm full lug engagement before driving.
