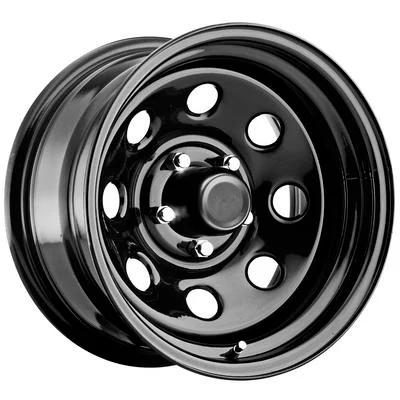

Pro Comp 97 Series Rock Crawler, 17x9 Wheel with 5 on 5 Bolt Pattern – Flat Black – 97-7973F

Pro Comp Steel Wheels

Shop Pro Comp Steel Wheels 17x9 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 97 Series Rock Crawler, 17×9 inch steel wheel in flat black, part number PCW97-7973F
  • 5 on 5 bolt pattern, 83 center bore, -6 offset, 4.25 backspacing
  • Holes-style face with a powder coat finish
  • Center cap and lug nuts sold separately

Description

Overview

The Pro Comp 97 Series Rock Crawler in 17×9 inches is a flat black steel wheel, part number PCW97-7973F, with a 5 on 5 bolt pattern. It is a 17 inch steel wheel from Pro Comp Steel Wheels’ Rock Crawler Series 97, designed for off-road vehicles that need a durable rim and a powder coat that holds up to trail use.

The -6 offset moves the mounting face slightly behind the centerline and the wheel slightly outward. The 4.25 backspacing runs from the mounting face to the back edge of the rim. The 83 bore is the hub opening that does the centering. The wheel is steel with a flat black powder coat.

Key features

  • Steel construction with a flat black powder coat
  • 17 inch diameter and 9 inch width
  • 5 on 5 bolt pattern
  • 83 center bore
  • -6 offset and 4.25 backspacing
  • Holes-style face from the 97 Series

Bead seats and lug seats

A wider rim on a 17 inch wheel changes how the tire seats and how it flexes on rock. The bead seat must be clean and undamaged, because a dent or rust ring at the seat is a common cause of air loss and slow leaks. When mounting, lubricate the bead lightly with a tire-approved product and inflate in steps so the bead seats evenly around the rim.

Tire choice goes hand in hand with a wide steel rim. A taller tire can improve sidewall cushioning on rocks, but it also adds rotating weight and can rub at full articulation. A shorter, stiffer tire puts more load into the rim edge on sharp impacts, so many trail builders pair a wide wheel with a tire rated for the weight of the vehicle.

Routine inspection keeps the setup safe. After each off-road outing, look at the rim lip and the bead area for bends or cracks, and check the bolt holes for elongation. Tighten the lug nuts to the vehicle’s specified torque after the first drives. Keep the flat black coat touched up where stone chips expose bare steel.

Specifications

Brand Pro Comp Steel Wheels
Part number PCW97-7973F
Series 97 Series Rock Crawler
Construction Steel
Style Holes
Finish Flat black powder coat (the spec sheet says black)
Diameter 17 inches
Width 9 inches
Bolt pattern 5 on 5
Center bore 83
Offset -6
Backspacing 4.25

Vehicle fitment

Confirm fit for your vehicle’s year, model and trim before ordering. The 5 on 5 bolt pattern and 83 center bore set the hub match, and the -6 offset with a 9 inch rim sets how far the tire sits outward. Measure clearance on the vehicle itself before trail use.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 9 inch rim on a 17 inch diameter leaves little room between the tire and the fender at full articulation, so test the setup with the intended tire before trail use. Check the lug nut seats for burrs before mounting.

What’s included

This order covers the 17×9 wheel by itself, PCW97-7973F, without a center cap.

Not included: Center cap and lug nuts for part PCW97-7973F, which are sold separately.

SKU: PCW97-7973F Categories: ,

Questions & Answers

Is the Pro Comp PCW97-7973F wheel a 5 on 5 bolt pattern?

Yes. It uses a 5 on 5 bolt pattern with an 83 center bore. Confirm both on the hub before ordering, since the wheel will not seat on a different lug layout.

What is the width and offset of this 17 inch wheel?

It is 9 inches wide and 17 inches in diameter, with a -6 offset and a 4.25 backspacing. The negative offset moves the wheel slightly outward from the hub.

Does the Pro Comp 97 Series wheel come with center caps?

No. The center cap and lug nuts are sold separately, so they need to be bought separately if your setup needs a full set. Confirm the seat type of the lug nuts before choosing them.

Can a steel wheel be repaired after a rock strike?

Sometimes. A small lip dent can be straightened by a qualified wheel repair shop, but cracks, creases at the bead seat or bends that cause wobble mean the wheel should be replaced. Check the rim with a straight edge after any hit.
