Overview

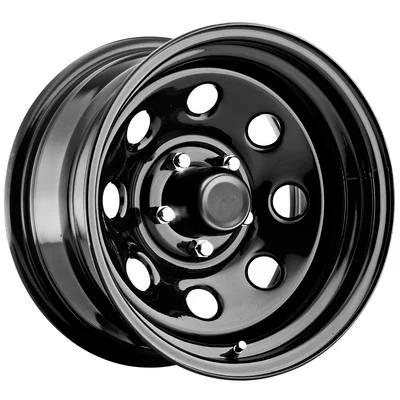

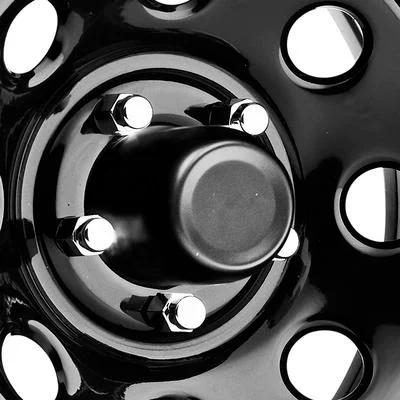

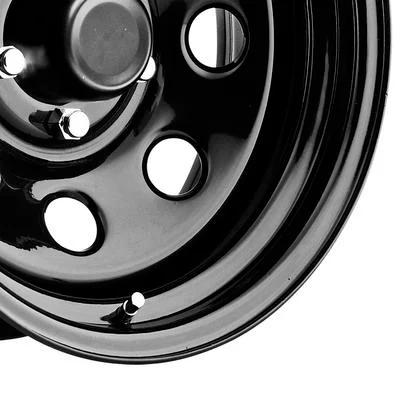

The Pro Comp 97 Series Rock Crawler in 15×8 inches is a flat black steel wheel, part number PCW97-5883F, with a 6 on 5.5 bolt pattern. It belongs to Pro Comp Steel Wheels’ Rock Crawler Series 97, built for off-road trucks and SUVs that need a steel rim with a holes-style face and a durable powder coat.
The wheel has a -44 offset and a 4.5 backspacing. The offset sets the mounting face behind the centerline, pushing the wheel outward, while the backspacing describes how far the rim’s back edge reaches behind the mounting face. The 108 center bore is the opening that centers the wheel on the hub.
Key features
- Steel wheel with a flat black powder coat
- 15 inch diameter and 8 inch width
- 6 on 5.5 bolt pattern
- 108 center bore
- -44 offset and 4.5 backspacing
- Holes-style face from the 97 Series
Mounting and brake clearance
Mounting a wheel like this starts with a clean hub. Rust, paint or grit on the hub face keeps the wheel from sitting flat, and that can cause a wobble that grows over distance. Wipe the face and the mating surfaces, then mount the wheel and tighten the lug nuts in a star pattern so the clamping force is even.
Brake parts are the most common problem with a deep negative offset and a large backspacing. The back of the rim can sit close to the caliper, and a tight fit can rub when the suspension compresses or the wheel turns hard. Check that the caliper and rotor have room on both sides before the first drive, because a small contact can wear the rim edge over time.
Torque checks belong on the schedule. Re-torque the lug nuts after the first drive and again after the first off-road trip, since new steel seats settle. Inspect the bolt holes for elongation and the powder coat for chips, and keep spare touch-up paint on hand. A wheel that has been struck hard should be checked for bends before it goes back into service.
Specifications
| Brand | Pro Comp Steel Wheels |
|---|---|
| Part number | PCW97-5883F |
| Series | 97 Series Rock Crawler |
| Construction | Steel |
| Style | Holes |
| Finish | Flat black powder coat (the spec sheet says black) |
| Diameter | 15 inches |
| Width | 8 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | -44 |
| Backspacing | 4.5 |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering. The 6 on 5.5 pattern is a hub layout that must match exactly, and the -44 offset needs checking against the fender and steering on the vehicle you plan to use. The 4.5 backspacing also needs room behind the mounting face for the brake components.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check that the brake caliper and rotor clear the 4.5 backspacing at full compression, since the back of the rim is the part most likely to contact them. Clean the hub face of rust before mounting so the wheel sits flat.
What’s included
The wheel ships alone as PCW97-5883F, with no center cap in the box.
Not included: Center cap and lug nuts for part PCW97-5883F, which are sold separately.
