Overview

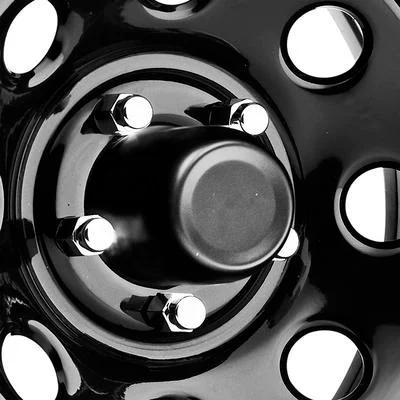

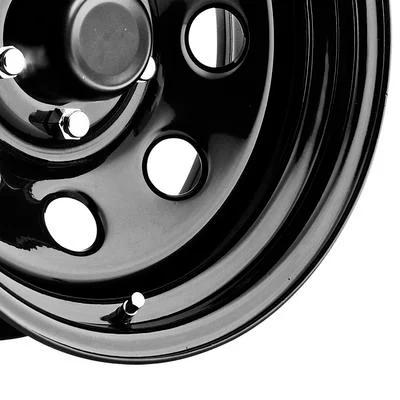

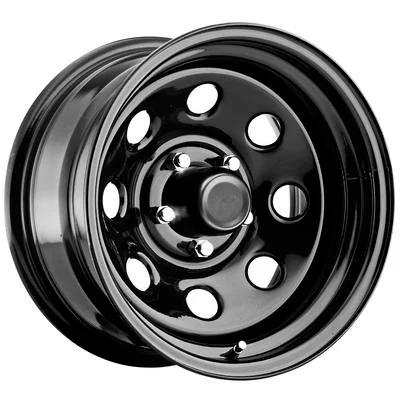

The Pro Comp 97 Series Rock Crawler in 15×8 inches is a gloss black steel wheel, part number PCW97-5885, with a 5 on 5.5 bolt pattern and a 108 center bore. Pro Comp Steel Wheels offers it in the Rock Crawler Series 97 for off-road trucks and SUVs that need a steel wheel with a holes-style face.
This version has a -76 offset, the deepest negative offset in the group of 15×8 steel wheels shown here, and that means the mounting face sits far behind the centerline. The wheel therefore stands well outside the hub. The 3.75 backspacing is the distance from the mounting face to the rear edge of the rim.
Key features
- Steel wheel with a gloss black powder coat
- 15 inch diameter and 8 inch width
- 5 on 5.5 bolt pattern
- 108 center bore
- -76 offset and 3.75 backspacing
- Holes-style face from the Rock Crawler 97 line
Clearance at extreme offsets
Extreme negative offsets move the tire far from the hub, which increases the leverage on the wheel bearings, the wheel studs and the steering components. The effects can show up as vibration, uneven tire wear or stiff steering. Measure clearance at the frame, the fender edge, and the tie rod at full lock, and recheck after any suspension change.
Wheel spacers are sometimes proposed as a way to adjust offset, but they add load to the studs and can shorten the thread engagement. Any spacer or adapter should be rated for the load and checked for fit before use. Recheck the lug nuts after the first drive, since spacing changes can alter how the nut seats.
- Measure clearance at full lock and with the suspension loaded.
- Check stud thread engagement with any spacer.
- Recheck torque after the first drive.
Specifications
| Brand | Pro Comp Steel Wheels |
|---|---|
| Part number | PCW97-5885 |
| Series | 97 Series Rock Crawler |
| Construction | Steel |
| Style | Holes |
| Finish | Gloss black powder coat (the spec sheet says black) |
| Diameter | 15 inches |
| Width | 8 inches |
| Bolt pattern | 5 on 5.5 |
| Center bore | 108 |
| Offset | -76 |
| Backspacing | 3.75 |
Vehicle fitment
Fitment is not confirmed for any named vehicle. A -76 offset is a severe outward shift, and it changes how the wheel sits relative to the hub, the brake assembly and the fender, so clearances must be measured on the vehicle before use. Confirm your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
With a -76 offset, expect the wheel and tire to project well beyond the stock fender line, so verify inner and outer clearance and check that the axle’s wheel studs and hub face are compatible with the spacing that results. Confirm the 108 center bore sits correctly on the hub.
What’s included
The package is the 15×8 wheel alone (PCW97-5885). No center cap is included.
Not included: Center cap and lug nuts for part PCW97-5885, which are sold separately.
