Pro Comp Series 252 Street Lock, 15x10 Wheel with 6 on 5.5 Bolt Pattern – Gloss Black 252-5183

Pro Comp Steel Wheels

Shop Pro Comp Steel Wheels 15x10 6x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp Series 252 Street Lock, 15×10 inch steel wheel, part number PCW252-5183
  • 6 on 5.5 bolt pattern, 108 center bore, -44 offset, 3.75 backspacing
  • Windowed design in gloss black
  • No vehicle is named; check the hub first

Description

Overview

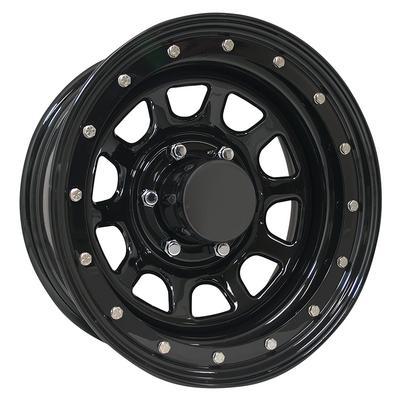

The Pro Comp Series 252 Street Lock in 15×10 inches is a windowed steel wheel in gloss black, part number PCW252-5183, with a 6 on 5.5 bolt pattern. Pro Comp Steel Wheels offers the 252 line in several sizes and backspacings, and this 15 inch wide version suits off-road trucks and SUVs that need a durable steel rim.

The -44 offset places the mounting face behind the centerline, so the wheel is positioned farther outward on the hub. The 3.75 backspacing describes how far the rim’s back edge reaches behind the mounting face. The 108 center bore is the opening that centers the wheel on the hub.

Key features

  • Windowed steel design with a gloss black powder coat
  • 15 inch diameter and 10 inch width
  • 6 on 5.5 bolt pattern
  • 108 center bore
  • -44 offset and 3.75 backspacing
  • Part of the Series 252 Street Lock line

Mounting a 6 on 5.5 wheel

A six lug wheel distributes clamp load across more studs, so torque and stud condition matter as much as the wheel itself. Start each lug nut by hand to avoid cross threading, then tighten in a star pattern in stages. Look at the studs for thread damage or rust before each mount, and replace any that look stretched.

Hub-centric fit matters on a wheel with a 108 bore, because the bore should seat on the hub rather than carry the load through the lugs alone. A ring can close a gap where the hub is smaller, and it should be sized to fit snugly. Check the centering after mounting and before the first trip, since a loose fit can cause vibration.

Specifications

Brand Pro Comp Steel Wheels
Part number PCW252-5183
Series 252 Series Street Lock
Construction Steel
Style Windowed
Finish Gloss black powder coat (the spec sheet says black)
Diameter 15 inches
Width 10 inches
Bolt pattern 6 on 5.5
Center bore 108
Offset -44
Backspacing 3.75

Vehicle fitment

Fit depends on the year, model and trim, so confirm those before ordering. A 6 on 5.5 bolt pattern and 108 center bore must match the hub exactly. Check the -44 offset against the fender, steering and brake caliper on the vehicle you choose.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Set the wheel on the hub with the lug nuts started by hand, then tighten in a star pattern. A -44 offset wheel should be road tested slowly after mounting to confirm the tire is not rubbing.

What’s included

The 15×10 wheel (PCW252-5183) is sold alone, and the center cap and lug nuts are a separate purchase.

Not included: Center cap and lug nuts for part PCW252-5183, which are sold separately.

SKU: PCW252-5183 Categories: ,

Questions & Answers

Is the Pro Comp PCW252-5183 wheel a 6 on 5.5 bolt pattern?

Yes. The listed pattern is 6 on 5.5, paired with a 108 center bore. The hub must match both figures for the wheel to mount correctly.

How much offset does this windowed steel wheel have?

It has a -44 offset, which places the mounting face behind the centerline. The wheel therefore stands farther out from the hub, and the tire position should be checked on the vehicle.

Does this wheel include lug nuts?

No. Caps and lug nuts are a separate purchase, so buy them with the wheel for a complete set before mounting.

Should I torque lug nuts again after driving?

Yes. Recheck lug nut torque after the first few drives, since seats can settle and fasteners can loosen slightly. Use a torque wrench at the value recommended for your vehicle's studs. Repeat the check after any tire rotation.
