Overview

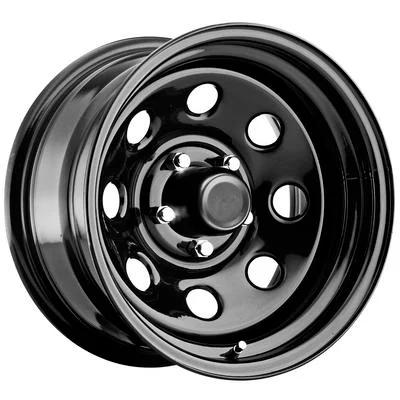

The Pro Comp 97 Series Rock Crawler is a 15×8 inch steel wheel in black, part number PCW97-5865, with a 5 on 4.5 bolt pattern. It belongs to the Rock Crawler Series 97 and has a holes-style face with a powder coat finish for off-road use.
The wheel has a -19 offset and a 3.75 backspacing. The offset positions the mounting face behind the centerline, while the backspacing measures the room between the mounting face and the back edge of the rim. The 83 bore is the hub opening used for centering. The finish is a black powder coat over steel.
Key features
- Steel wheel with a black powder coat finish
- 15 inch diameter and 8 inch width
- Holes-style face in the Rock Crawler 97 design
- 5 on 4.5 bolt pattern
- 83 center bore
- -19 offset and 3.75 backspacing
Rim width and brake clearance
A shorter 15 inch rim leaves more radial room than a larger diameter rim, which matters when a vehicle runs a big brake caliper or a thick rotor. Radial room is only part of the picture, because the offset and backspacing decide how far the wheel reaches toward the caliper and the inside of the fender. Measure the caliper against the back of the spokes before mounting.
Powder coated steel holds up well to scrapes, but chips still expose bare metal, and bare metal can start to rust at the bead seat and around the lug holes. Touch up any chips with a matching coating once the wheel is clean and dry. Replace the wheel if you see cracks near the welds or bent flanges.
- Measure caliper and rotor clearance behind the spokes.
- Keep the bead seat clean for a tight, even seal.
- Store spare wheels off concrete to limit moisture damage to the finish.
Specifications
| Brand | Pro Comp Steel Wheels |
|---|---|
| Part number | PCW97-5865 |
| Series | 97 Series Rock Crawler |
| Construction | Steel |
| Style | Holes |
| Finish | Black powder coat (the series line says gloss black) |
| Diameter | 15 inches |
| Width | 8 inches |
| Bolt pattern | 5 on 4.5 |
| Center bore | 83 |
| Offset | -19 |
| Backspacing | 3.75 |
Vehicle fitment
No year, make, model or chassis code is confirmed for this wheel. Match the 5 on 4.5 bolt pattern, 83 center bore and -19 offset to your hub and clearance before ordering. Confirm your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The -19 offset moves the tire outward, so check fender and steering clearance before a trail trip. Because the finish is a powder coat, avoid dragging the wheel across rough mounting surfaces, which can chip the coating and expose bare steel.
What’s included
The package is the 15×8 wheel alone (PCW97-5865). No center cap is included.
Not included: Center cap and lug nuts for part PCW97-5865, which are sold separately.
