Overview

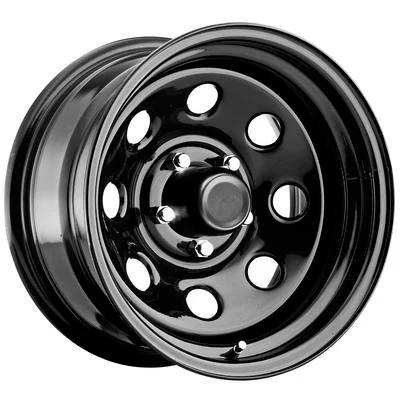

The Pro Comp 97 Series Rock Crawler in 16×8 inches is a gloss black steel wheel, part number PCW97-6881, drilled for an 8 on 6.5 bolt pattern. Its 8 lug layout suits heavy-duty trucks and SUVs that use that hub, and Pro Comp Steel Wheels builds it for them.
The wheel has a 0 offset, which places the mounting face on the centerline of the rim, and a 4.5 backspacing. The 131 center bore is the hub opening, so the hub has to be sized to match before mounting.
Key features
- Steel construction with a gloss black powder coat
- 16 inch diameter and 8 inch width
- 8 on 6.5 bolt pattern
- 131 center bore
- 0 offset and 4.5 backspacing
- Holes-style face from the Rock Crawler line
Hub-centric fit and lug nuts
A wheel that centers on the hub rather than on the lug nuts runs more smoothly and puts less strain on the studs. When the bore is larger than the hub, a hub-centric ring can fill the gap, so the wheel’s weight is carried by the hub itself. Measure the hub diameter before ordering so the bore and ring can be matched.
Lug nut seat type matters as much as the lug count. Conical, ball and flat seats each fit different hole shapes, and mismatched nuts can loosen under load. Tighten the nuts in a star pattern, and recheck them after the first drive.
- Measure the hub diameter before ordering
- Match the lug nut seat to the holes
- Re-torque after the first drive
Specifications
| Brand | Pro Comp Steel Wheels |
|---|---|
| Part number | PCW97-6881 |
| Series | 97 Series Rock Crawler |
| Construction | Steel |
| Style | Holes |
| Finish | Gloss black powder coat (the spec sheet says black) |
| Diameter | 16 inches |
| Width | 8 inches |
| Bolt pattern | 8 on 6.5 |
| Center bore | 131 |
| Offset | 0 |
| Backspacing | 4.5 |
Vehicle fitment
It is not tied to a named year, make, model or chassis code. The 8 on 6.5 layout and 131 center bore must match the hub exactly, and the 0 offset and 4.5 backspacing should be compared with the clearance your vehicle needs. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The 131 center bore must sit on a hub of the same diameter or on a hub-centric ring that fills the gap, so measure the hub before ordering. Use lug nuts whose seat type matches the eight holes, and tighten them in a star pattern.
What’s included
The wheel is supplied alone as PCW97-6881 and does not include a center cap.
Not included: Center cap and lug nuts for part PCW97-6881, which are sold separately.
