Overview

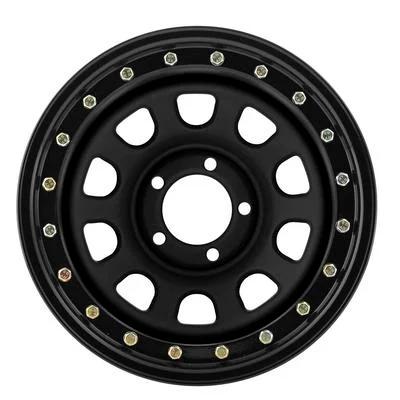

The Pro Comp Series 252 Street Lock in 15×8 inches is a flat black windowed steel wheel, part number PCW252-5885F, drilled for a 5 on 5.5 bolt pattern with a 108 center bore. Pro Comp Steel Wheels builds it in the 252 family for off-road trucks and SUVs that need a steel rim with a durable powder coat.
The -19 offset places the mounting face behind the centerline, so the wheel sits outward from the hub. Its 3.75 backspacing runs from the mounting face back to the rear rim edge. The 108 center bore sets the centering diameter on the hub.
Key features
- Windowed steel design with a flat black powder coat
- 15 inch diameter and 8 inch width
- 5 on 5.5 bolt pattern
- 108 center bore
- -19 offset and 3.75 backspacing
- Series 252 Street Lock styling
Hub-centric fit and clearance
A 108 bore should match the hub diameter closely, and a hub-centric ring is a common way to bridge a smaller hub. Rings must seat fully and sit flush against the hub face, or they can shift under load. Confirm the ring size before mounting and check the wheel center after the install.
Clearance on a 5 on 5.5 hub with a -19 offset depends on tire width, suspension height and steering angle. Full lock and suspension compression are the moments when rubbing shows up, so test both before a trail trip. Trim or spacer decisions should be made with the tire already selected, not guessed in advance. Measure twice before cutting anything. Keep a note of results for future reference.
Specifications
| Brand | Pro Comp Steel Wheels |
|---|---|
| Part number | PCW252-5885F |
| Series | 252 Series Street Lock |
| Construction | Steel |
| Style | Windowed |
| Finish | Flat black powder coat (the spec sheet says black) |
| Diameter | 15 inches |
| Width | 8 inches |
| Bolt pattern | 5 on 5.5 |
| Center bore | 108 |
| Offset | -19 |
| Backspacing | 3.75 |
Vehicle fitment
This wheel has no named vehicle, year or chassis code. The 5 on 5.5 pattern and 108 center bore must match the hub, and the -19 offset controls how the tire clears the fender and the steering parts. Pro Comp’s universal fit label does not replace a measured clearance check on the vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Verify the 108 center bore against the hub diameter, and use a hub-centric ring if the hub is smaller. Check the tire clearance with the suspension compressed and the steering turned to full lock.
What’s included
The 15×8 windowed wheel (PCW252-5885F) is supplied alone, and the caps and nuts are a separate buy.
Not included: Center cap and lug nuts for part PCW252-5885F, which are sold separately.
