Pro Comp Series 252 Street Lock, 16x8 Wheel with 8 on 6.5 Bolt Pattern – Gloss Black 252-6881

Pro Comp Steel Wheels

Shop Pro Comp Steel Wheels 16x8 8x6.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp Series 252 Street Lock, 16×8 inch steel wheel in gloss black, part number PCW252-6881
  • 8 on 6.5 bolt pattern, 131 center bore, -6 offset, 4.25 backspacing
  • Windowed design with a powder coat finish
  • No vehicle is named; check the hub first

Description

Overview

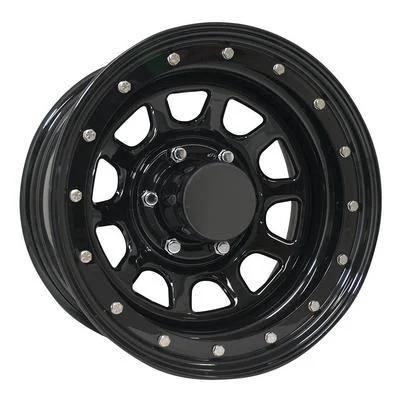

The Pro Comp Series 252 Street Lock in 16×8 inches is a gloss black windowed steel wheel, part number PCW252-6881, drilled for an 8 on 6.5 bolt pattern with a 131 center bore. It is part of Pro Comp Steel Wheels’ Series 252 line, which the brand sizes and backspaces for off-road vehicles that run a heavy-duty steel rim.

The wheel carries a -6 offset, which places the mounting face slightly behind the centerline, and a 4.25 backspacing that measures the room behind the mounting face. The 131 center bore centers the wheel on the hub, so measure the hub bore before ordering.

Key features

  • Windowed steel design with a gloss black powder coat
  • 16 inch diameter and 8 inch width
  • 8 on 6.5 bolt pattern
  • 131 center bore
  • -6 offset and 4.25 backspacing
  • Series 252 Street Lock styling

Hub fit and lug layouts

An 8 on 6.5 layout is less common than the 5 and 6 lug patterns, so parts that fit a standard hub may not fit this one. Lug nuts, studs and any adapter must all match the eight holes and their seats. Hub-centric rings are often used when the wheel bore is larger than the hub spigot, but a ring should be chosen to fill the gap exactly rather than forced in.

Eight lug nuts take more tightening time, so a torque check after the first drives is worth the effort. Tighten in a star pattern and go around twice. Inspect the lug seats and stud threads at each tire rotation, looking for burrs, rust or stretched studs that can let a wheel work loose on the trail. Keep the mounting face clean so the wheel seats flat against the hub.

Specifications

Brand Pro Comp Steel Wheels
Part number PCW252-6881
Series 252 Series Street Lock
Construction Steel
Style Windowed
Finish Gloss black powder coat (the spec sheet says black)
Diameter 16 inches
Width 8 inches
Bolt pattern 8 on 6.5
Center bore 131
Offset -6
Backspacing 4.25

Vehicle fitment

No vehicle with years or a chassis code is confirmed for this wheel. The 8 on 6.5 pattern is a less common lug layout, so the hub must have eight holes on that spacing. Compare the -6 offset and 4.25 backspacing with the fender and brake clearance of the vehicle you plan to use.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The 131 center bore must match a hub of the same size, or a hub-centric ring must be used to fill the gap. Use lug nuts that seat on the eight holes and tighten them in a star pattern.

What’s included

The 16×8 wheel (PCW252-6881) is sold alone, without a center cap.

Not included: Center cap and lug nuts for part PCW252-6881, which are sold separately.

SKU: PCW252-6881 Categories: ,

Questions & Answers

What bolt pattern does the Pro Comp PCW252-6881 wheel use?

It uses an 8 on 6.5 bolt pattern with a 131 center bore. Both numbers must match the hub, since a wheel with a different lug count cannot be mounted securely.

Is this Series 252 wheel a windowed steel design?

Yes. It is a windowed steel wheel finished in gloss black, measuring 16 inches by 8 inches, with a -6 offset and a 4.25 backspacing.

Are the center cap and lug nuts included?

No. The center cap and lug nuts are sold separately, so buy them along with the wheel if your build needs a complete set.

How do I check that the lug nuts fit this wheel?

Confirm the seat type, thread size and length match the wheel's lug holes before mounting. Test-fit each nut by hand, since it should sit square in its seat and turn freely until it snugs. A nut that binds or sits at an angle is the wrong type.
