Pro Comp 51 Series Rock Crawler, 15x10 Wheel with 6 on 5.5 Bolt Pattern – Flat Black – 51-5183F

Pro Comp Steel Wheels

Shop Pro Comp Steel Wheels 15x10 6x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 51 Series Rock Crawler 15×10, part number PCW51-5183F
  • 6 on 5.5 bolt pattern, center bore 108
  • Flat black steel windowed wheel
  • Offset -44, backspacing 3.75

Description

Overview

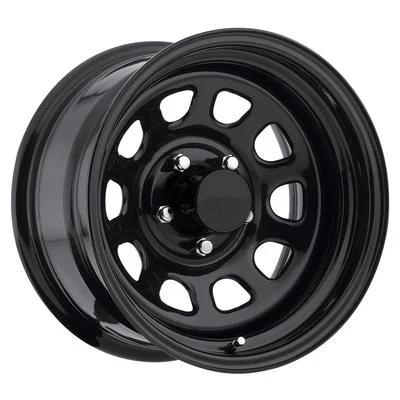

The Pro Comp 51 Series Rock Crawler 15×10 wheel, part number PCW51-5183F, is a 15-inch steel wheel that is 10 inches wide. It has a 6 on 5.5 bolt pattern and a flat black finish with a windowed design.

The wheel has a 108 center bore, a -44 offset and a backspacing of 3.75. It is a steel rock crawler wheel with a flat black coating, made in a range of sizes and backspacings. It is universal fit and is not tied to a specific vehicle.

Key features

  • Steel construction
  • 15-inch diameter, 10-inch width
  • 6 on 5.5 bolt pattern
  • Center bore 108
  • Offset -44 with backspacing 3.75
  • Flat black windowed finish

Choosing wheel offset and clearance

Offset and backspacing decide where the tire sits relative to the hub, and that position controls how the wheel clears the fender, the steering components and the brake caliper. A deeply negative offset pushes the tire outward for a wider stance and more tire coverage on the trail, but it also loads the wheel bearings and steering joints differently from a stock setup. Before buying, compare the offset with the tire width and tire diameter you plan to run, since a wider tire on the same offset moves its outer edge further out.

Rock crawling tends to put the outer rim edge into rocks and trail debris. Steel wheels are easier to straighten after a bend than aluminum, but a bent rim that no longer holds the bead still needs replacing. Check the rim after hard landings and inspect the lug seats for cracks after the first few runs with a new setup.

  • Match the tire load rating to the vehicle and tire size
  • Recheck lug torque after the first few trail runs
  • Look for bent rims and cracked welds after rock strikes
  • Measure steering lock with the tire mounted

Specifications

Brand Pro Comp Steel Wheels
Part number PCW51-5183F
Wheel diameter 15 inches
Wheel width 10 inches
Bolt pattern 6 on 5.5
Center bore 108
Offset -44
Backspacing 3.75
Style Windowed
Finish Flat black
Construction Steel
Series 51 Series District

Vehicle fitment

This wheel is universal fit and not matched to a vehicle. Confirm the 6 on 5.5 hub and 108 center bore, then measure the -44 offset against the fender and suspension.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The -44 offset places the wheel far outboard, so inspect the fender and any inner components after mounting, before the first drive.

Pro Comp describes its steel Rock Crawler wheels as suited to rough terrain. This 15×10 flat black version has a 6 on 5.5 pattern and a 108 center bore, and the -44 offset means the tire sits far outboard, so fender and suspension clearance should be measured before the first drive.

What’s included

Not included: center caps and lug nuts, sold separately.

SKU: PCW51-5183F Categories: ,

Questions & Answers

Is the PCW51-5183F a 6 on 5.5 wheel?

Yes. The bolt pattern is 6 on 5.5 with a 108 center bore. The wheel is 15 by 10 inches with a -44 offset and flat black finish. The 6 on 5.5 pattern and 108 center bore are the fit points for this flat black wheel.

Is this a steel wheel?

Yes. The construction is steel, in a windowed style, with a flat black finish. It belongs to the Pro Comp Steel Wheels line. The 6 on 5.5 pattern and 108 center bore are the fit points for this flat black wheel.

Will lug nuts come with this wheel?

No. Center caps and lug nuts are sold separately, so buy them as a separate item. The 6 on 5.5 pattern and 108 center bore are the fit points for this flat black wheel.

How can I tell if the wheel is clearing the fender at full lock?

Turn the steering to full lock in both directions with the wheel mounted and watch the tire edge against the fender liner and suspension. Rubbing usually shows as a scuff mark on the tire or the liner. Recheck after any change in tire size or suspension height.
