Overview

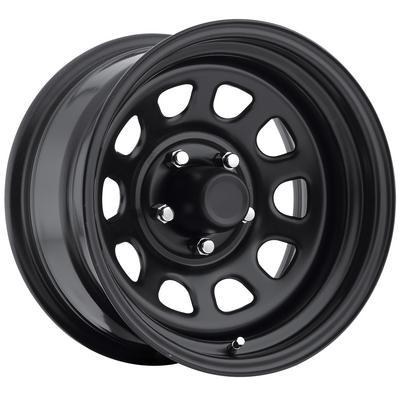

The Pro Comp 51 Series Rock Crawler 15×10 wheel, part number PCW51-5165F, is a 15-inch steel wheel that is 10 inches wide. It has a 5 on 4.5 bolt pattern and a flat black finish, with a windowed design.
The center bore is 83, the offset is -44 and the backspacing is 3.75. The flat black coating is a powder finish over steel. Fitment is universal, so confirm the hub and fender room before mounting.
Key features
- Steel construction
- 15-inch diameter, 10-inch width
- 5 on 4.5 bolt pattern
- Center bore 83
- Offset -44 with backspacing 3.75
- Flat black powder-coated finish
Matte finish and upkeep
Flat black finishes hide road grime well but show scratches more clearly once the coating is marked. Clean the wheel with mild soap and a soft brush, and avoid strong solvents that can dull a matte surface. Touch up small chips early, because steel exposed at a chip can start to rust along the edge of the coating.
Deep offsets and windowed faces collect mud and rock dust in the window openings. Rinse the wheel after trail use and check the inner barrel for debris and bead corrosion. A matte surface is harder to inspect for worn spots than a glossy one, so look it over before a long trip. Recheck lug nut torque after the first few runs.
- Clean with mild soap and a soft brush
- Avoid abrasive pads on matte coating
- Touch up chips before rust starts
- Rinse window openings after trail use
Specifications
| Brand | Pro Comp Steel Wheels |
|---|---|
| Part number | PCW51-5165F |
| Wheel diameter | 15 inches |
| Wheel width | 10 inches |
| Bolt pattern | 5 on 4.5 |
| Center bore | 83 |
| Offset | -44 |
| Backspacing | 3.75 |
| Style | Windowed |
| Finish | Flat black |
| Construction | Steel |
| Series | 51 Series District |
Vehicle fitment
This wheel is universal fit and not built for one vehicle. Confirm the 5 on 4.5 hub and 83 center bore, then measure the -44 offset against the tire and fender before choosing a tire size.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The deep -44 offset pushes the tire outward, so check fender clearance with the suspension at full travel once the wheel is mounted.
The flat black finish gives the windowed face a matte look. The 5 on 4.5 pattern and 83 center bore set the hub fit, and the -44 offset sets how far the wheel sits from the fender. Measure both before mounting.
What’s included
Not included: center caps and lug nuts, which are sold separately.
