Overview

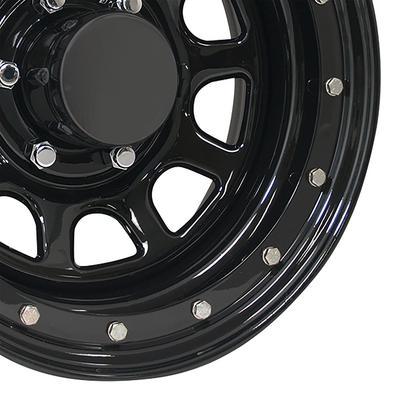

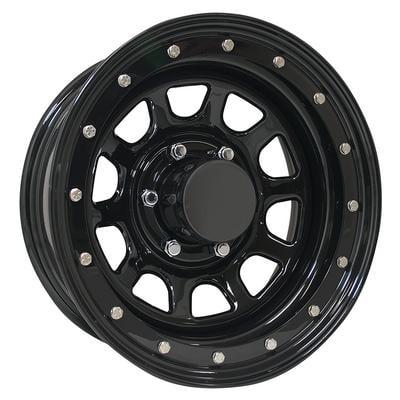

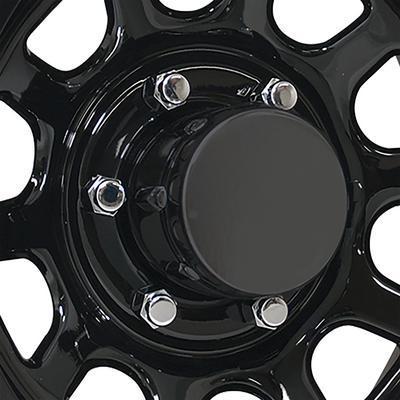

The Pro Comp Series 252 Street Lock in 15×8 inches is a gloss black windowed steel wheel, part number PCW252-5883, drilled for a 6 on 5.5 bolt pattern. Pro Comp Steel Wheels makes it in the 252 family for off-road builds that need a steel rim with a durable powder coat and a windowed face.
The wheel has a -19 offset, which places the mounting face behind the centerline, so the rim sits farther out from the hub. The 3.75 backspacing is the distance from the mounting face to the back of the rim, and the 108 center bore is the opening that centers the wheel on the hub.
Key features
- Windowed steel design with a gloss black powder coat
- 15 inch diameter and 8 inch width
- 6 on 5.5 bolt pattern
- 108 center bore
- -19 offset and 3.75 backspacing
- Part of the Series 252 Street Lock line
Choosing the right setup
Off-road wheels take more load than street wheels, so the mounting face, backspacing and hub fit all matter before a tire goes on. A steel windowed rim like this one is heavier than an alloy of the same size, which adds unsprung weight but gives a durable base for rocks, trail debris and rough landings. When you choose a setup, start with the hub, then the offset, then the tire size. A tire that is taller or wider than the original can push against the fender or steering components even when the wheel itself bolts on correctly.
Look after the finish by cleaning off mud and road salt, which can work into chips in the powder coat. Inspect the windows and the inner barrel after each season of hard trail use, looking for cracks, bends or flaking coat near the lug seats. Replacing the valve stem and checking the tire balance when the tires are changed is a practical habit that often goes along with a new wheel set.
Specifications
| Brand | Pro Comp Steel Wheels |
|---|---|
| Part number | PCW252-5883 |
| Series | 252 Series Street Lock |
| Construction | Steel |
| Style | Windowed |
| Finish | Gloss black powder coat (the spec sheet says black) |
| Diameter | 15 inches |
| Width | 8 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | -19 |
| Backspacing | 3.75 |
Vehicle fitment
No vehicle is named, so confirm fit for your vehicle’s year, model and trim before ordering. Match the 6 on 5.5 pattern and 108 center bore to the hub, then measure the -19 offset against the fender and steering clearance of your truck. A universal fit label does not confirm clearance on any particular vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
With the lug nuts snug, check that the wheel seats flat against the hub and that the windows do not contact any brake or suspension part. Recheck torque once the vehicle has been driven a few miles.
What’s included
The 15×8 windowed wheel (PCW252-5883) is sold alone, without a center cap.
Not included: Center cap and lug nuts for part PCW252-5883, which are sold separately.
