Overview

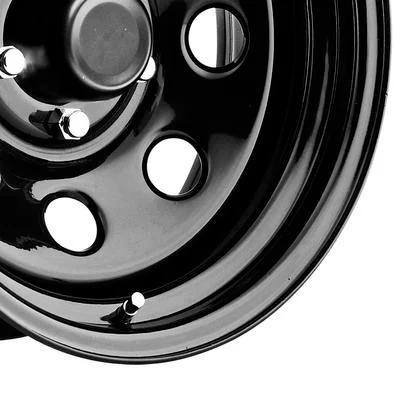

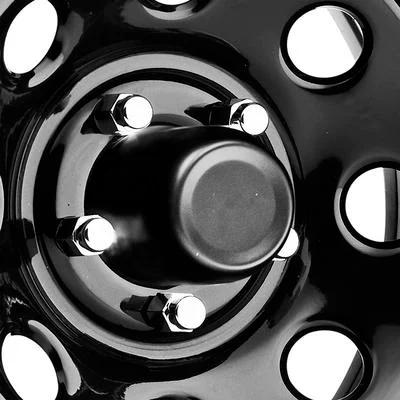

The Pro Comp 97 Series Rock Crawler in 17×9 inches is a flat black steel wheel, part number PCW97-7983F, drilled for a 6 on 5.5 bolt pattern. It belongs to the Rock Crawler Series 97 and is built for off-road trucks and SUVs that need a steel rim with a holes-style face.
The -19 offset places the mounting face behind the centerline, so the wheel stands farther out from the hub than a wheel with a small offset. The 4.25 backspacing is the room between the mounting face and the back edge of the rim. The 108 center bore sets the centering diameter for the hub.
Key features
- Steel wheel with a flat black powder coat
- 17 inch diameter and 9 inch width
- 6 on 5.5 bolt pattern
- 108 center bore
- -19 offset and 4.25 backspacing
- Holes-style face
Clearance on articulating suspension
A negative offset of this size brings the tire outward, so the fender, brake caliper and suspension arms all need room. Clearance is tested under load, not in the driveway. Sweep the steering from lock to lock, then cycle the suspension through its travel while watching the tire edge and the brake lines.
Rim width also matters. A 9 inch rim on a 17 inch wheel gives the tire a wider footprint than a narrower rim, which can help grip on loose ground but adds stress to the bead and lip when the tire is pushed against rock. Pairing the wheel with a tire rated for the vehicle’s weight and a strong tire bead helps keep the seal intact under hard use.
Steel can bend under a hard hit, so check the lip after each rough trail day. Look at the bolt holes for cracks, and re-torque the lug nuts after the first drive. Keep the flat black finish touched up with a matching coating so rust does not start where stones chip the surface.
Specifications
| Brand | Pro Comp Steel Wheels |
|---|---|
| Part number | PCW97-7983F |
| Series | 97 Series Rock Crawler |
| Construction | Steel |
| Style | Holes |
| Finish | Flat black powder coat (the spec sheet says black) |
| Diameter | 17 inches |
| Width | 9 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | -19 |
| Backspacing | 4.25 |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering. A 6 on 5.5 pattern with a 108 bore is a fixed hub layout, and the -19 offset needs checking against the fender and steering geometry of the vehicle. Measure clearance on the vehicle rather than assuming it from a universal fit label.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the rim’s clearance to the brake caliper and the suspension arms with the wheel fully mounted and the suspension compressed. Steel wheels should be re-torqued after the first drive, and the bolt holes checked for elongation after heavy use.
What’s included
The wheel is supplied alone as PCW97-7983F; the center cap and lug nuts are not in the box.
Not included: Center cap and lug nuts for part PCW97-7983F, which are sold separately.
