Overview

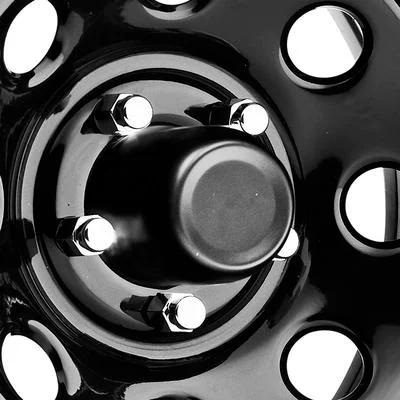

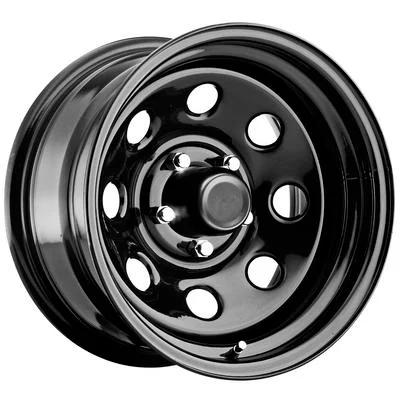

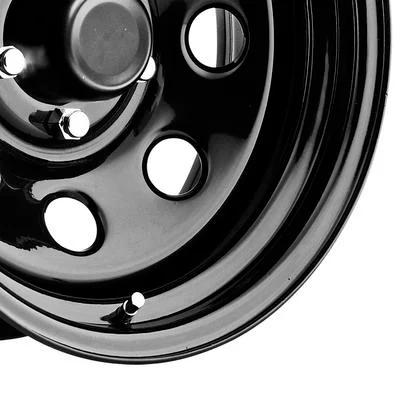

The Pro Comp 97 Series Rock Crawler in 17×8 inches is a black powder coated steel wheel, part number PCW97-7883, with a 6 on 5.5 bolt pattern and a 108 center bore. Pro Comp Steel Wheels offers it in its Rock Crawler Series 97 for off-road builds that want a steel wheel with a holes-style face.
The -6 offset places the mounting face behind the centerline, so the wheel sits a little farther out than a zero-offset wheel. The 4.25 backspacing runs from the mounting face to the back edge of the rim. The wheel is finished with a powder coat over steel.
Key features
- Steel construction with a black powder coat
- 17 inch diameter and 8 inch width
- Holes-style face from the Rock Crawler 97 line
- 6 on 5.5 bolt pattern
- 108 center bore
- -6 offset and 4.25 backspacing
Choosing lugs and seats
Lug nuts are a part many builders overlook, but they decide how the wheel is clamped to the hub. A taper, ball or flat seat has to match the seat cut into the wheel, and a mismatch can loosen under trail vibration or damage the bolt holes. Before buying hardware, check the seat type on the wheel’s bolt holes and buy nuts that match it exactly.
A wheel with a negative offset and a steel face also asks more of the wheel bearings and steering parts. Heavier tires add rotating weight and make the hub work harder, so when a tire grows, the wheel and hub are usually reviewed together. Many owners also replace the lug studs when they swap wheels, since worn threads can strip under repeated torque.
Good habits keep the wheel in service. Re-torque the lug nuts after the first few drives, then check them at regular intervals. Clean the mounting face so no rust or paint sits between the wheel and the hub. Powder coat chips should be touched up before corrosion spreads under the finish, and cracks around the bolt holes are a reason to retire the wheel.
Specifications
| Brand | Pro Comp Steel Wheels |
|---|---|
| Part number | PCW97-7883 |
| Series | 97 Series Rock Crawler |
| Construction | Steel |
| Style | Holes |
| Finish | Black powder coat (the series line says gloss black) |
| Diameter | 17 inches |
| Width | 8 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | -6 |
| Backspacing | 4.25 |
Vehicle fitment
No year, make, model or chassis code is attached to this steel wheel. A 6 on 5.5 pattern is a specific lug layout, so the hub must have the same count and spacing, and the 108 center bore should suit the hub diameter. Compare the -6 offset with your vehicle’s specifications before you commit, since the universal fit label on the product does not confirm clearance.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check tire clearance on the fender and at full steering lock after mounting, because the negative offset pushes the tire outward. Protect the powder coat from scraping during installation, and inspect the bolt holes and weld seams after the first trail outing.
What’s included
The package is the 17×8 wheel alone (PCW97-7883), with no center cap included.
Not included: Center cap and lug nuts for part PCW97-7883, which are sold separately.
